TL50 LED UL
Innovative watertight LED luminaire
Description
The innovative LED outdoor lighting fixtures are applicable for a wide range of different areas, e.g. workshops, stores, passage ways etc.
They are designed to meet maritime requirements and to save energy and maintenance cost due to extreme long lifetime.
The TL50 LED U is UL Marine certified.
Technical specifications
Application
- For areas like car decks, open decks,and other demanding applications such as extreme weather conditions at sea
Design
- According to rules of maritime classification societies, additional VDE and IEC/EN
Ambient temperature (Ta)
- Operation from -25ºC up to +45ºC in standard version
Housing
- Seawater resistant, anodized aluminum housing.
Finish
- Grey anodized
Electrical specification
- Flexible wiring, heat resistant up to 105°C.
Light Source
- LED
Mounting

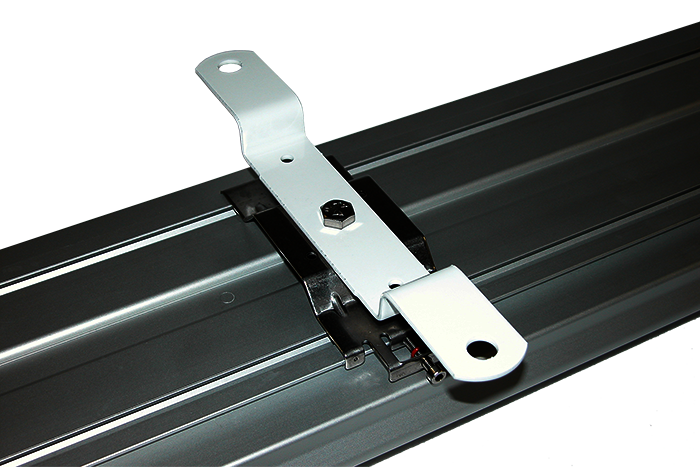

- Mounted to the ceiling or cable trays by: screws, different screwed mounting brackets, shock mounts or triangles are available. Mounting distace adjustable.
Connection
- Connection box with cable entry 2xM25x1.5 polyamide D7-17mm and blind plugs 2xM25x1.5 polyamide Terminal 3-pole/4 mm²
dimming
- Available with dimmable driver.
