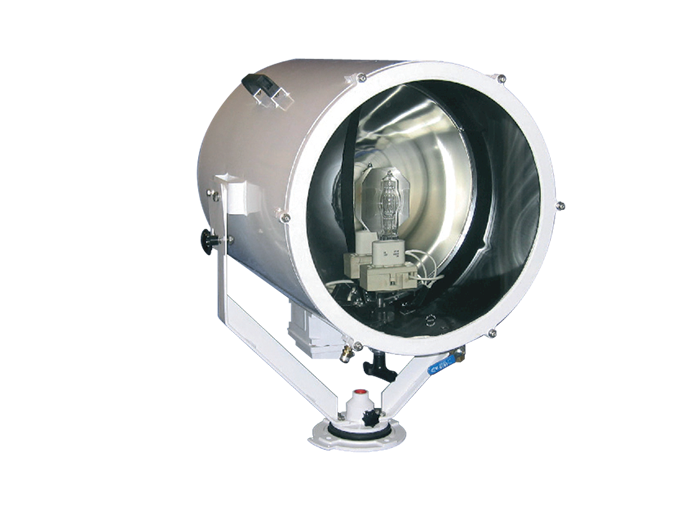

SH 510 Suez searchlight
Designed for vessels using the Suez canal
Description
Suez Canal Searchlights are designed for installations on all sizes of vessels using the Suez Canal and comply fully with the regulations of the Suez Canal Authorities. The searchlight can be easily moved from the storage and mounted on deck by a single person, due to the low weight and convenient lifting handles. All the components are chosen to withstand corrosion and require minimum of maintenance. The SH 510 Suez Canal Searchlights are equipped with dual projector lamps with external switchover arrangement in case of burn out.
Highlights:
Designed to meet applicable marine requirements
Certified in accordance to Suez Canal regulation (Product Design Assessment certificate)
Water and gas-tight drum with ventilation and safety valve
Technical specifications
Housing
Made of seawater resistant aluminium finished in white polyester coating. Other RAL colours for housing on request.
Light Source
Designed for Halogen lamps 2000W or 3000W included. Front glass made of hardened glass. Controllable brushed aluminium split reflectors to produce twobeamsectors in accordance to regulations.
Electrical specification
Equipped with dual reflector lamps with external switch-over arrangement in case of burn out.
Mounting
- The searchlight can be stored under deck, and easily moved from the storage and mounted on deck, due to its low weight and convenient liftinghandles.
Remarks
- Front glass cover, canvas cover, deck flange or plugs and sokets are available as option.
Optic
- SH 510 produces two horizontal lightbeams of 5° with a dark central sector of 10°. SH 510 is delivered with hardened temperature resistant front glass and controllable split reflector, made of durable silver-plated glass.
Options
Storage bow
Eex de IIC T6 plug, socket and switch
IP56 plug and socket
Front glass cover
Canvas cover.
