MIR G2 KIT
LED replacement kit to upgrade MIR T5/T8 -fluorescent tube to LED
Popular
![MIR G2 KIT]()
![MIR G2 KIT]()
Description

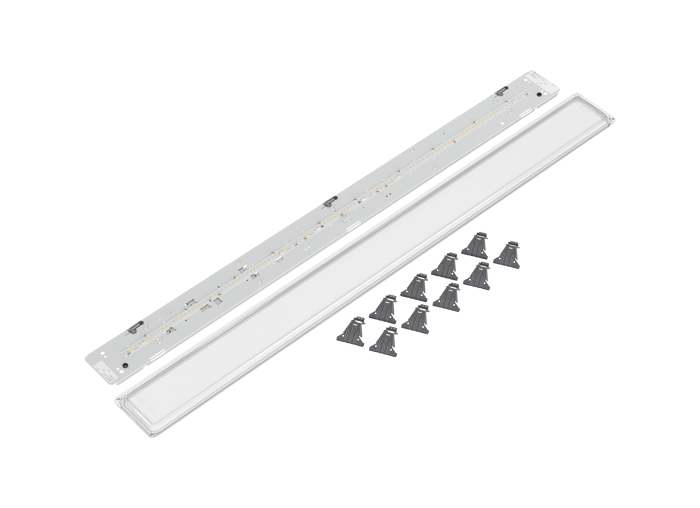

The MIR G2 KIT is a replacement kit to upgrade MIR T5/T8 to an energy-efficient LED solution. It’s equipped with a quick connector for easy replacement. It’s designed for areas with temperatures from -25ºC to +45ºC.
The MIR G2 KIT is also available with different types of integrated emergency solutions, both with an internal battery and prepared for external battery box (EB).
The kit includes a new diffuser and new diffuser clips.
Battery with the same item code as on the existing product to be upgraded must be ordered separately for emergency versions prepared for external battery box.
Some emergency variants are also marine approved (M).
Technical specifications
Light Source
- 2500 - 11 000 lumen out
Colour temperature 4000 K as standard, CRI/Ra 80, MacAdams 3
On request: 3000 K ,5000 K, 6500 K or variants in color : RED , BLUE or GREEN
- 2500 - 11 000 lumen out
Light measurements
- Light measurements are for complete luminaire.
Driver
- Fixed output (HF) and DALI dimmable (10-100%).
Driver life time up to 120 000 h/10 % (max failure) at Ta 25°C.
- Fixed output (HF) and DALI dimmable (10-100%).
Connection
- Quick connector. Push-in terminal block for external battery box.
Emergency system
- Standard, Self Test or DALI addressable with internal battery or external battery box.
Some emergency variants are also marine approved (M).
- Standard, Self Test or DALI addressable with internal battery or external battery box.
