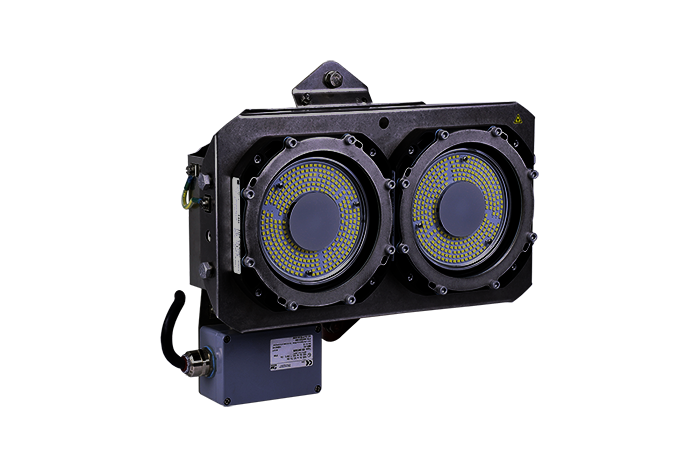

TX65 LED
Ex d LED area light
Description
The TX65 LED area lighting is designed for installation and use in Hazardous areas, Zones 1 and 2.
By using latest LED technology it offers a virtually maintenance-free solution for all high and medium intensity lighting requirements on low power consumption. Seawater resistant aluminium anodized module housing for excellent cooling. Stainless steel ceiling or pole mounting. The light offers 100 000 hours lifetime at an ambient temperature of 45°C.
The lights are IECEx, ATEX and TRCU certified.
Technical specifications
Application
- Hazardous areas zone 1 and 2Due to the extreme wide light output this area light can beused in low base aplications instead of fixtures with tubes
Design
- According to rules of maritime classificationsocieties and IEC standards
Approvals
- ATEX and IECEx approved
Ambient temperature (Ta)
- Operation: - 50° C up to + 55° C Storage temperature: - 55° C up to + 80° C
Housing
- Modules in die-casted, seawater resistant aluminium,designed for exelent heat management, frame and bracketstainless steel AISI 316L
Finish
- Modules anodized
Optic

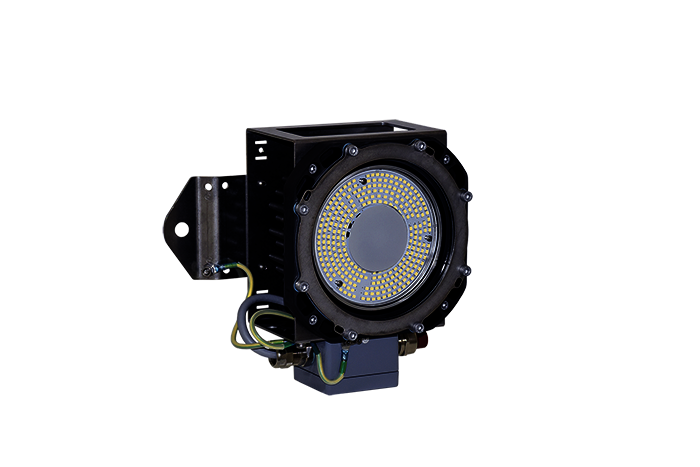

- One or two module versions with safety glass
Light Source
- Array of LEDs with 3000 lm, 4500 lm output per modulein 3000 Kor 5000 Klight colour temperature and CRI>80
Mounting

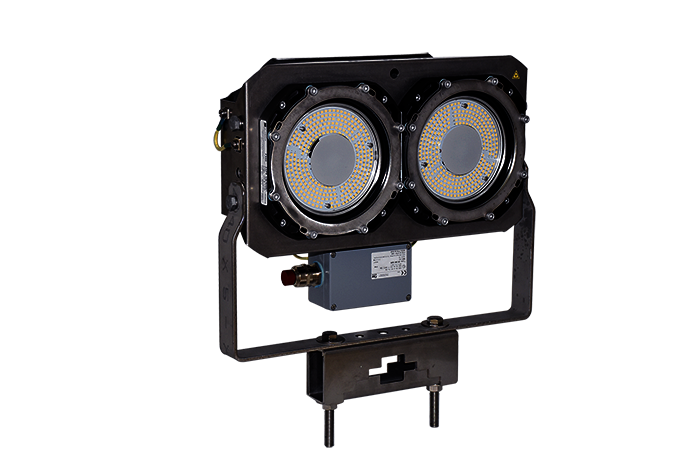

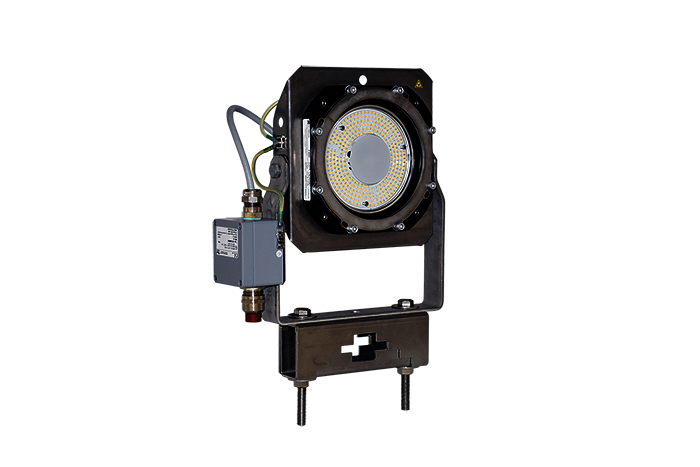

- Ceiling mounted or pole mounting(for diameters up to 65mm)
Connection
- Ex e external connection box, terminal 6 mm²2 cable glands M25 Ex e brass nickel plated(others on request) standard for cable 10 to 17 mm
