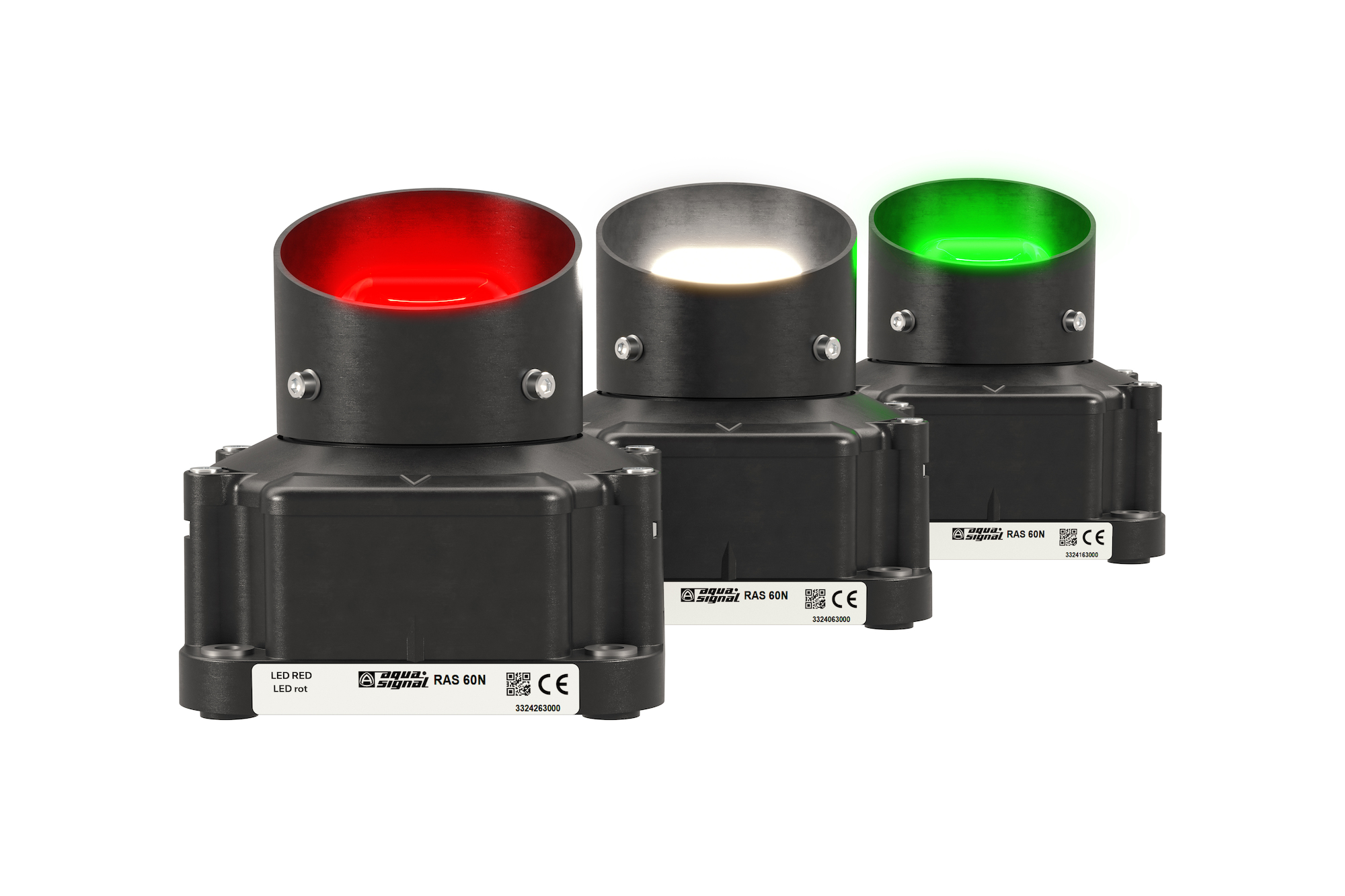

A compact LED floodlight for naval applications
RAS 60N is a new and compact floodlight for naval applications. This product is typically used in passageways on open deck, in areas where space is limited and other relevant areas where a lower lumen floodlight is needed. It is designed for both wall and ceiling mounting and available in three colors (White, NVIS Green and Night Adaptation Red). The voltage is 24 VDC and it can also be dimmed if controlled via a Glamox control panel. Some of the key features include: - EMC1 Class B according to bridge and open deck, and radiated and conducted emission according to MIL-STD 461G. - MIL shock-tested - Color and lumen: - Lumen output White: 750 lm - Lumen output NVIS Green: 550 lm - Lumen output Night Adaptation Red: 225 lm - Option for dimming if integrated in Glamox control panel - Voltage: 24 VDC - IP Class: IPX6/IPX7 - Temperature range: -25°C to +55°C - Lifetime: 100,000 hrs at L70 Ta 45°C - Housing: Polycarbonate - Mounting: - Surface mounted - Wall mounted with bracket - Shading tube: Adjustable beam angle via modular shading design - Option for radar cross-sectional design cover (accessory) For further and detailed product information and individual consultation, please contact our Navy and Coast Guard team.
