Navy 1934 LED Chart Light

Navy 1934 LED Chart Light

  • Loading...
  • Loading...
  • Loading...
  • Loading...

Description

The 1934 Chart table light has been recently redesigned with new white and green LED´s. The new green LED´s are NVIS compatible and will not disturb Night Vision Goggles operation when the Luminaire is installed on places where the light is visible from the outside. The light can be dimmed in a range of 10 % to 100 % and with a toggle switch the light source can be selected.

Technical specifications

  • Available variants

    1. Navy 1934 LED Chart Light White 24V DC Navy 1934 LED Chart Light White 115 V 50/60HZ Navy 1934 LED Chart Light White 220-240V 50/60HZ Navy 1934 LED Chart Light NVG green 24V DC Navy 1934 LED Chart Light NVG green 115 V 50/60HZ Navy 1934 LED Chart Light NVG green 220-240V 50/60HZFor further variants and information, please contact your sales partner.
  • Application

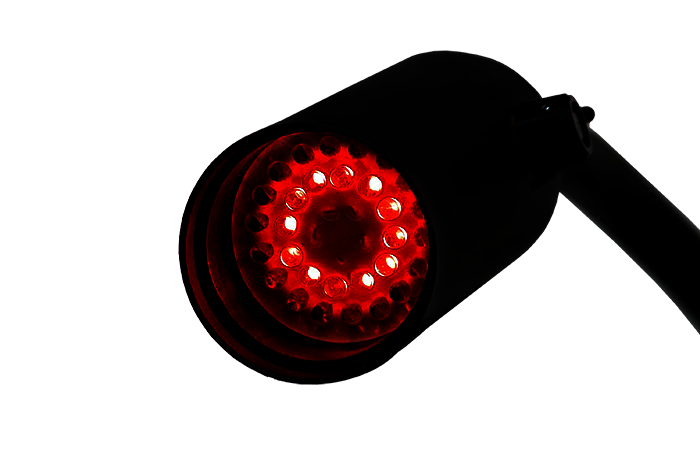

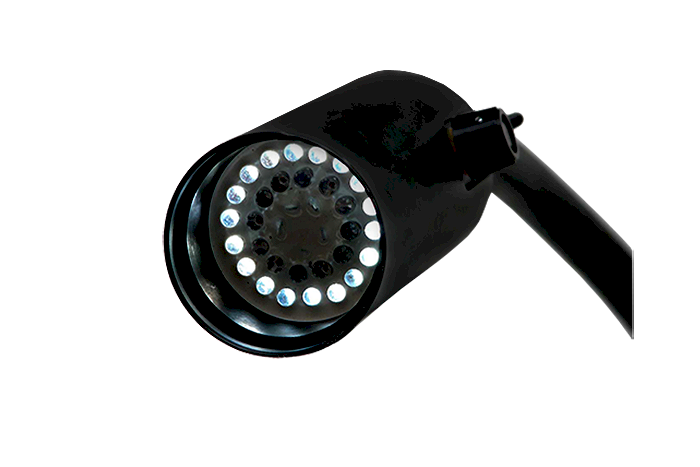

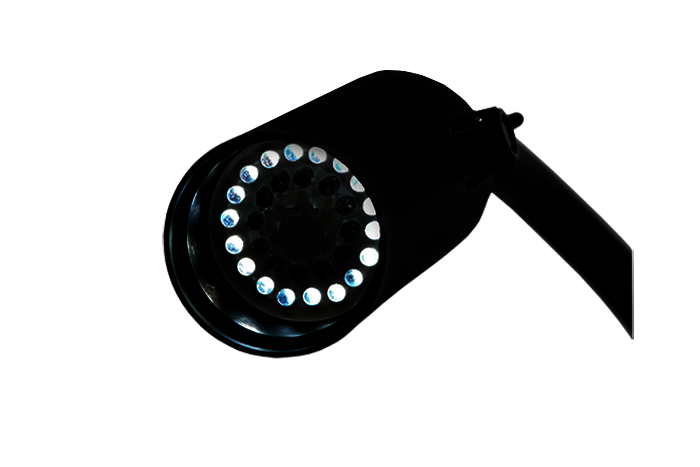

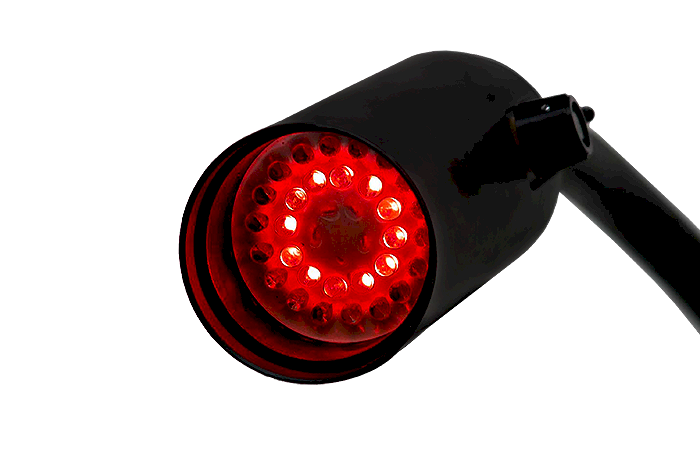

    1. Desk and Chart table LED lights, white / red LEDs or white / green
  • Approvals

    1. Qualified by certain Navies according to their specfic demands. According to rules of maritime classification societies, additional VDE and IEC
  • Ambient temperature (Ta)

    1. Operation up to +45°C in standard version
  • Housing

    1. Housing,tubus:Light alloyFlexible arm: Brass with internal stainless steel spring, covered by a black shrinking hoseSwitch:Toggle-type
  • Finish

    1. Black satin
  • Electrical specification

    1. 24V DC, 115 V 50/60HZ or 220-240V 50/60HZ
  • Light Source

    1. LED red/white or LED green/White
  • Mounting

    1. Desk or wall mounting
  • Connection

    1. Cable entry: Light is supplied with appr. 1.5m 3-core connection cable
