TL14 LED

TL14 LED

  • Loading...
  • Loading...
  • Loading...
  • Loading...
  • Loading...
  • Loading...

Description

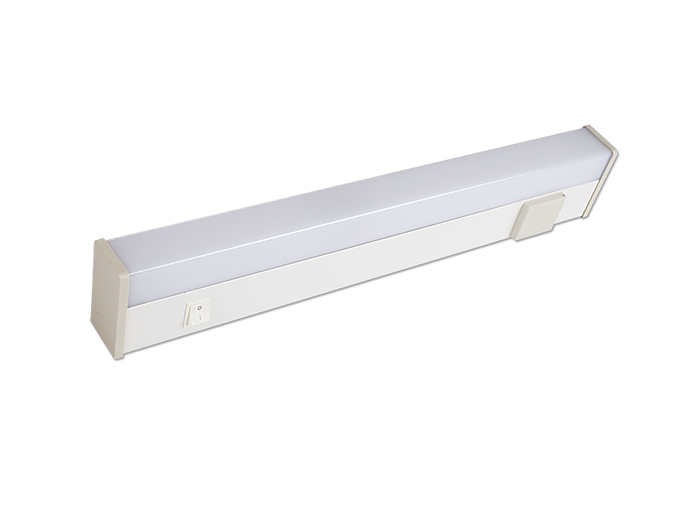

LED Mirror lamp for wall mounting above or on side of mirror. Rectangular design. Correct mirror lighting with soft light distribution. Robust, steel housing with spring operated plastic end caps. Powder coated white RAL9016. OP = Diffuser in Opal polycarbonate V0 quality. S = Switch, U = Universal razor socket with transformer and selector 230/110V. 300 HF replaces 8W tube, 800 HF replaces 15W tube and 1000 HF replaces 18W T8 tube. Due to latest LED technology the lamp is energy and maintenance saving.

Technical specifications

  • Application

    1. Mirror lamp for wall mounting above or on side ofmirror. Also available as berth lamp.
  • Design

    1. Rectangular design Correct mirror lighting
  • Housing

    1. Steel housing with spring operated plastic end caps
  • Finish

    1. Powder coated white RAL9016
  • Optic

    1. Opal polycarbonate diffuser in V0 quality
  • Electrical specification

    1. With electronic driver 120-240V, 50-60Hz. Variantswith two-pole switch (S), with universal shaver socketand transformer for 110/220V (U) or with Schuko socket(SC) are available.
  • Light Source

    1. LED 300, 800, 1000 or 2000 lm, 830
  • Mounting

    1. To be installed directly to wall or ceiling
  • Connection

    1. One hole Ø19 mm with grommet in back.One knock-out Ø19 at top.One 3-way push in terminal block, 2 x 2.5 mm².
