1961 LED refit
Description

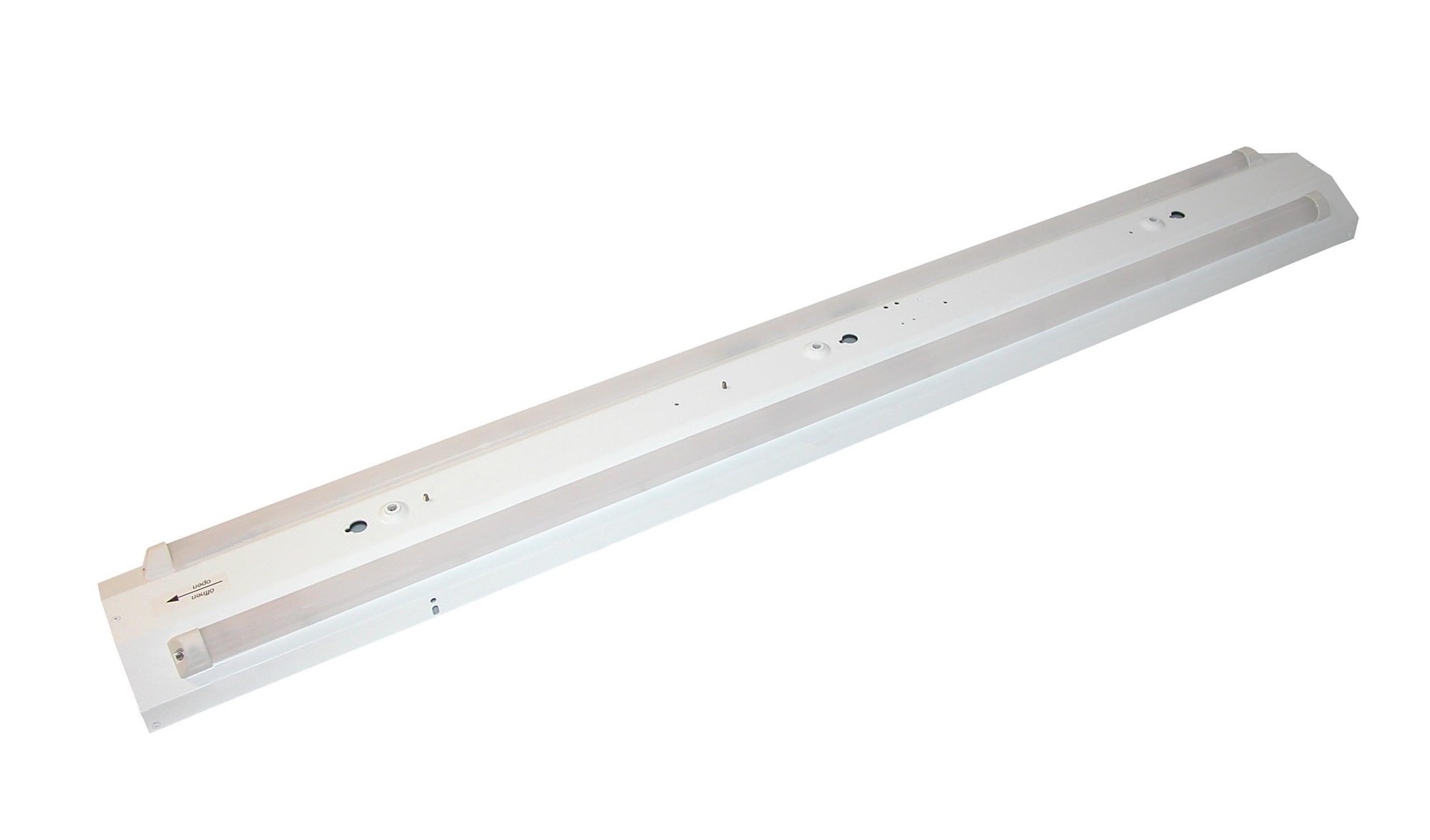

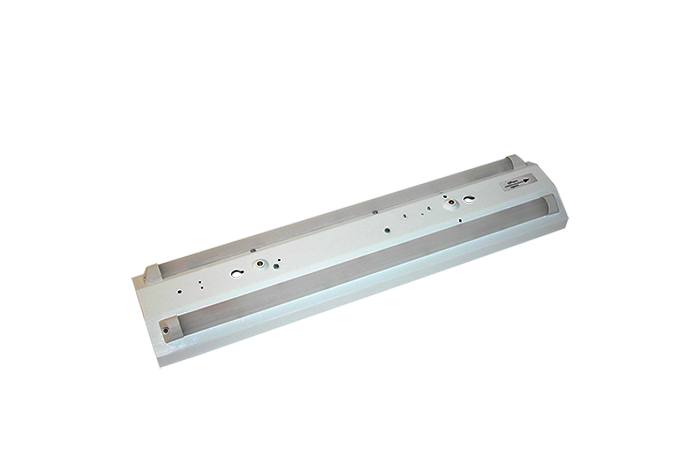

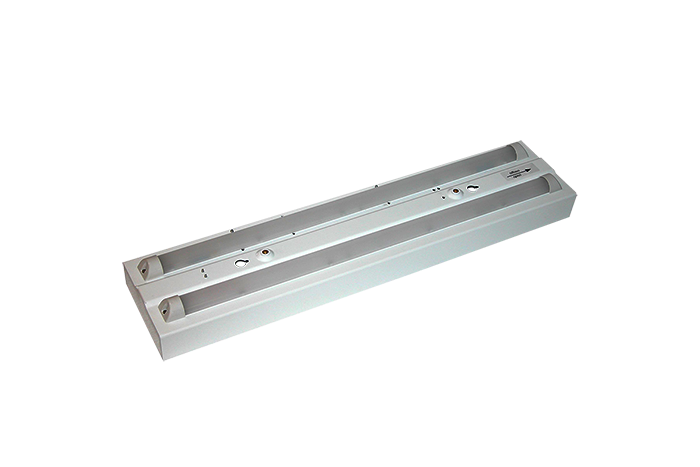

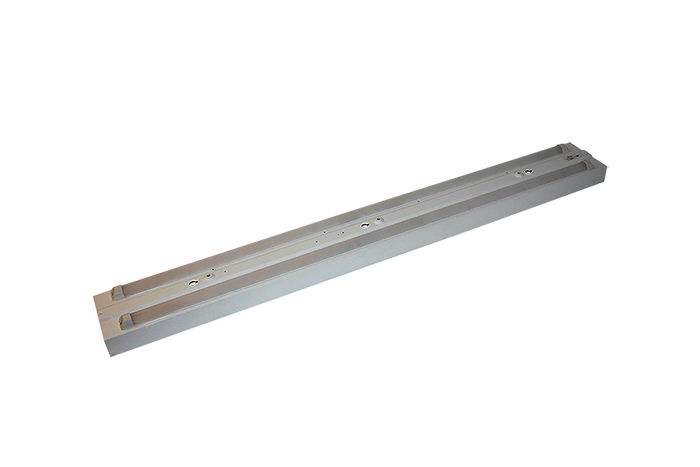

1961 Led Kit offers easy conversion from our 1961 T8 luminiare into a high quality led luminiare. Included geartray with Led's and driver(s). 120 deg means tilted led's, 0 deg mean Led's pointing straight down.
2800lumen Kit is upgrade for 2x14W T5 or 2x18W T8 tube versions (2ft).
5500lumen Kit is upgrde for 2x28W T8 or 2x36W T8 tube versions (4ft).
For Navy purposes, please contact your sales partner for more information.
Technical specifications
Design
- The LED refit gear tray can replace old fluorescent T8 gear trays to upgrade exisitng luminaires to LED luminaires.
Ambient temperature (Ta)
- Operation from -25ºC up to +45°C in standard version
Optic
- Polycarbonate opal LED-cover with end caps
Electrical specification
- High quality driver for 110V to 240V, flexible wiring heat resistant up to 105ºC, removable geartray with plug in connector to the terminal on ground plate.
Light Source
- LED light colour: 4000K/840 available 3000K/830, 5000K/850 or 6500K/865
Mounting
- Complete gear tray LED to replace T8 in luminaire.
Connection
- Easy replacement disconnecting and connecting at 3-pole plug.
