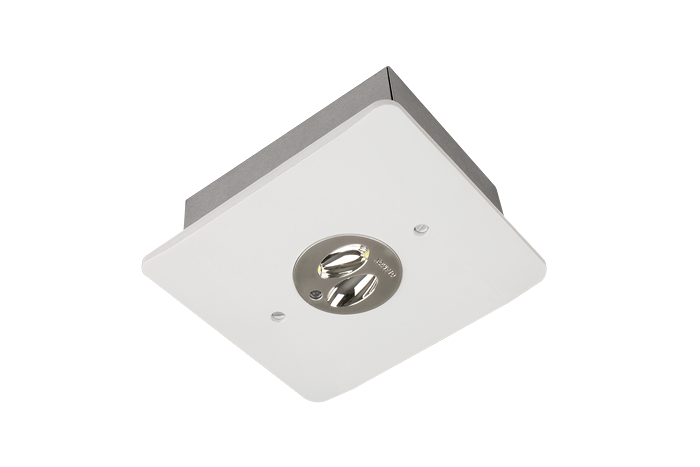

E85-R(M)
Description
Emergency and Escape route light for recessed mounting based on LED technology. Housing in aluminium and zink coated steel sheet. Two options for reflectors. C reflector for corridors and WB (wide beam) reflector for room/area illumination. Available in White. Other colours on request.
Technical specifications
Application
- For escape route or anti panic lighting
Design
- DNV approved design according to maritimeclassification societies, additional IEC/ISO
Housing
- Die casted aluminium recessed mounted,component plate in steel
Finish
- Housing white powder coated RAL 9016
Optic
- Corridor C or Wide beam WB for anti panic lighting
Electrical specification
- Electronic ballast 220-240V, 50-60HzDelivered with 1 hour (E1) or 3 hour (E3) integratedbattery. Option for centralized battery 230V (Z). S = Standard ST = Selftest DALI = addressable system Z = 230V central battery system
Light Source
- LED
Mounting
- To be fixed with 4 screws.For B0 or B15 fire classification, look at service manual.
Connection
- Back plate with double grommet and 2 knockouts,one each side.5x2x2.5 mm² push in terminal.
