Description

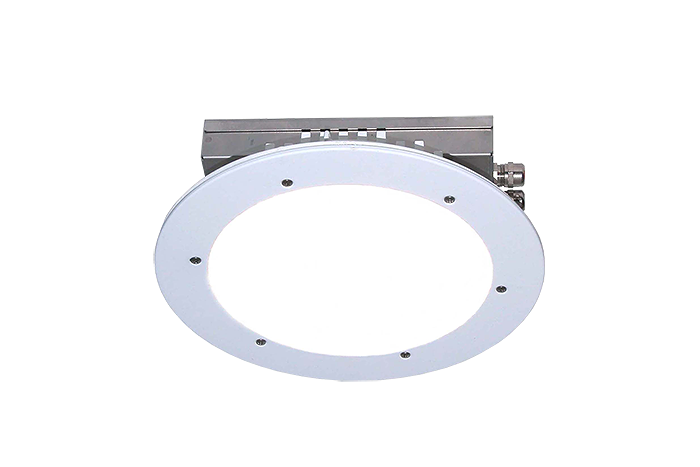

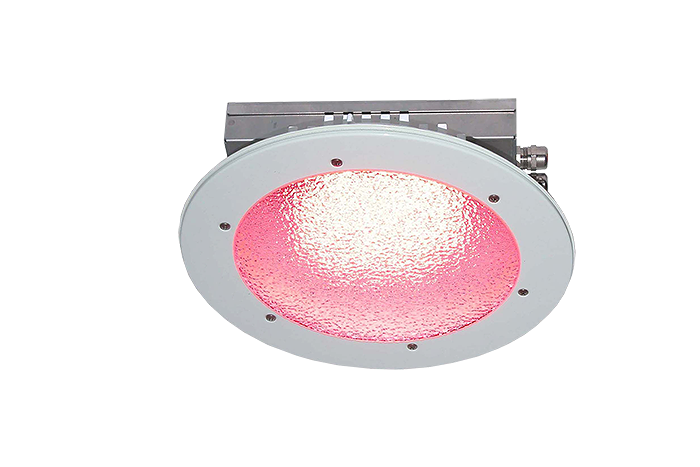

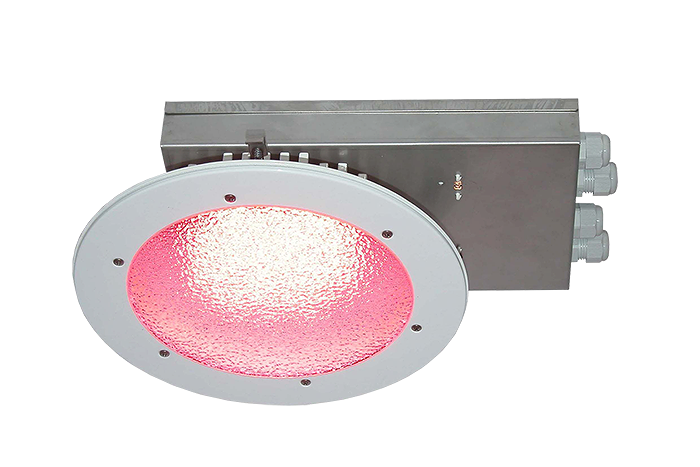

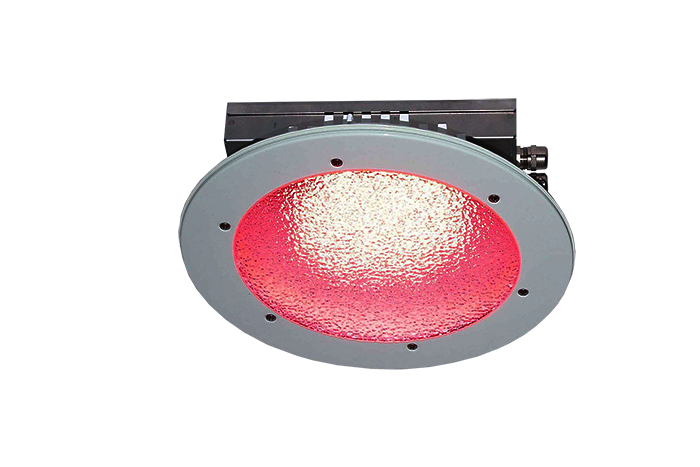

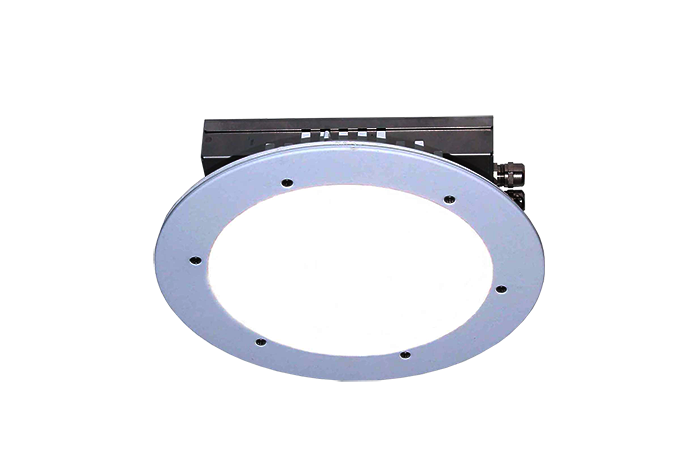

This LED downlights is designed for recessed installation and can replace the Aqua Signal Familiy 1787. 1788 CE-2 Structure 1788 CE-2 1788 CE-2 Red 1788 CE-4 Structure 1788 CE-2 Red Structure 1788 CE-5 Red Structure 1788 CE-4 Red Structure For Navy purposes, please contact your sales partner for more information.

Technical specifications

  • Application

    1. Accommodation areas, diningrooms, lounges, passage ways etc.
  • Design

    1. According to rules of maritime classification societies, additional VDE and IEC
  • Approvals

    1. acc. to DNVGL Std.
  • Ambient temperature (Ta)

    1. Operation from -25ºC up to +50°C in standard version
  • Housing

    1. Aluminium die castingRing/Cover: Zinc coated steel/RAL 9016 (White)
  • Finish

    1. Powder coated white (RAL 9016)
  • Optic

    1. Polycarbonate structure, clear, red, blue or Polycarbonate red, blue or opal.
  • Electrical specification

    1. 110-240V 50/60Hz
  • Light Source

    1. LED light colour: 4000K/840; others on request
  • Mounting

    1. To be installed in ceiling cut out with adjustable suspension brackets.
