AL42-W LED
Description

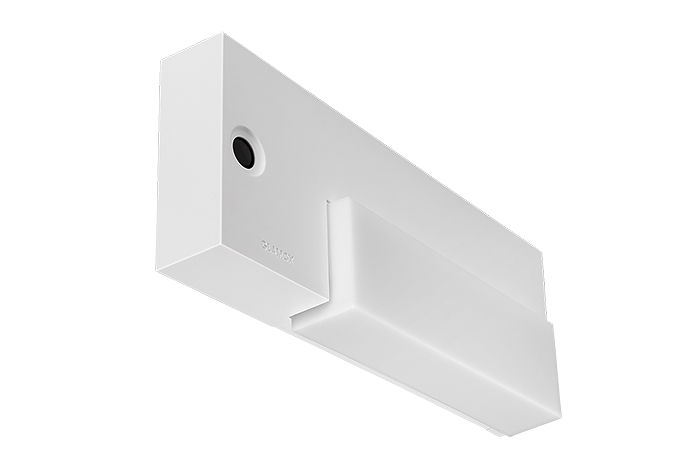

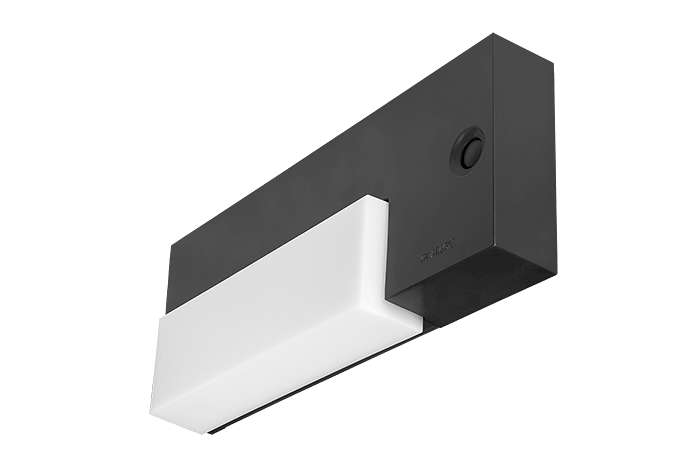

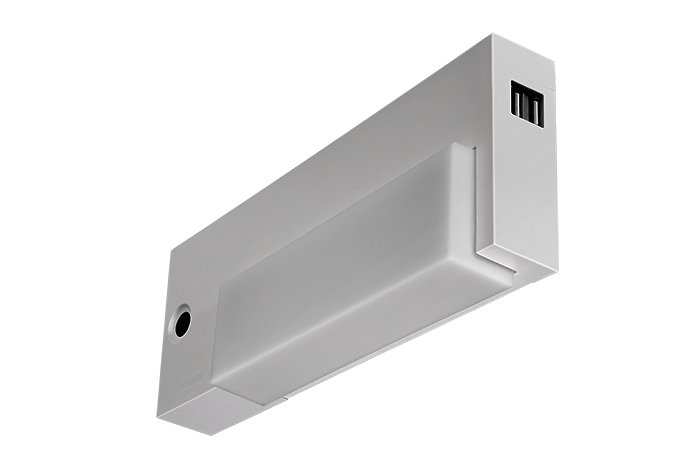

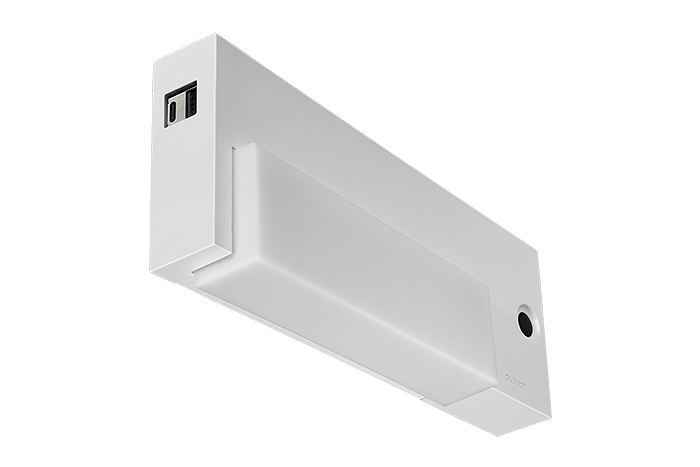

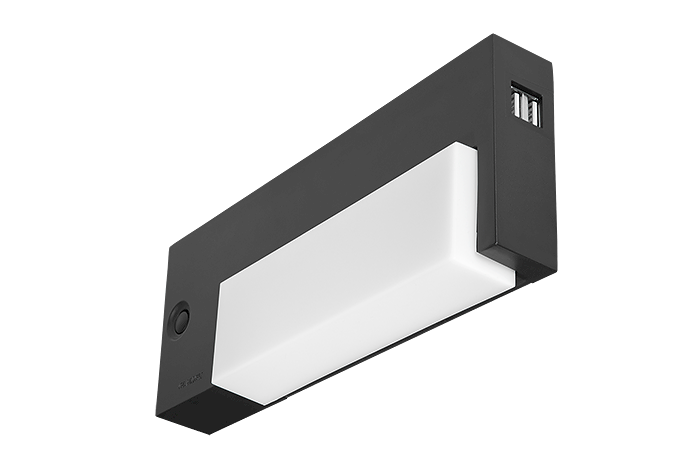

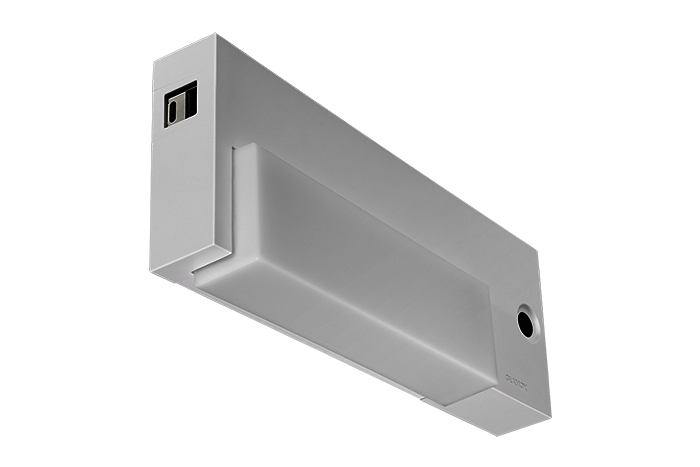

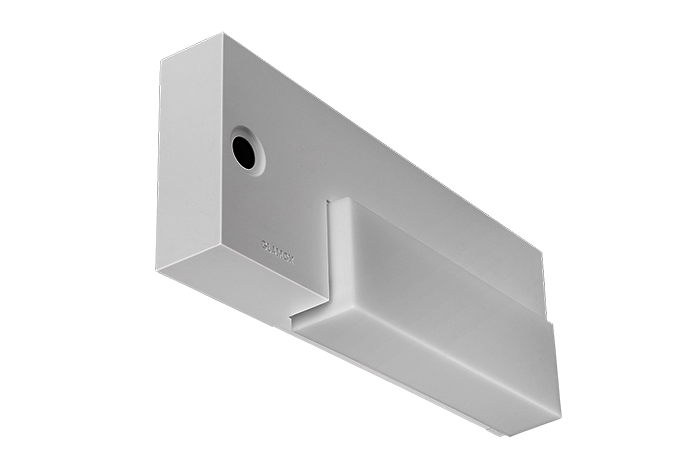

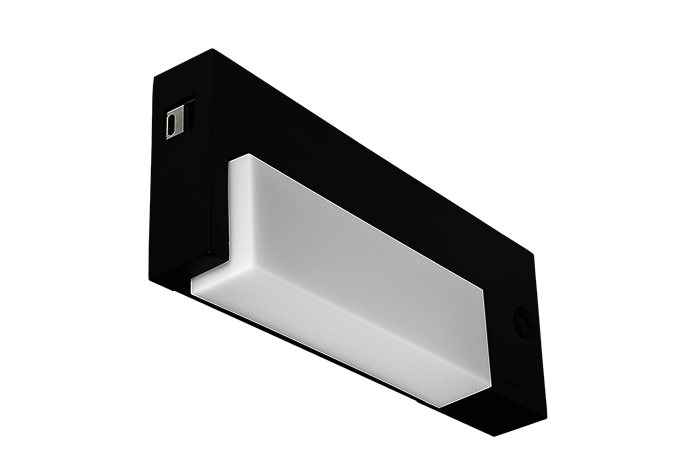

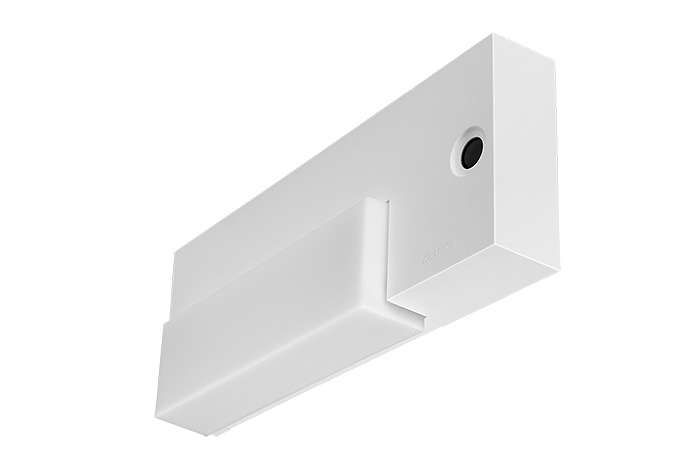

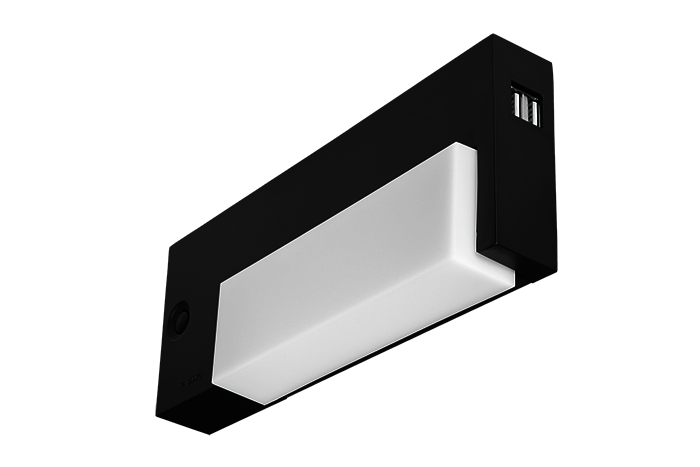

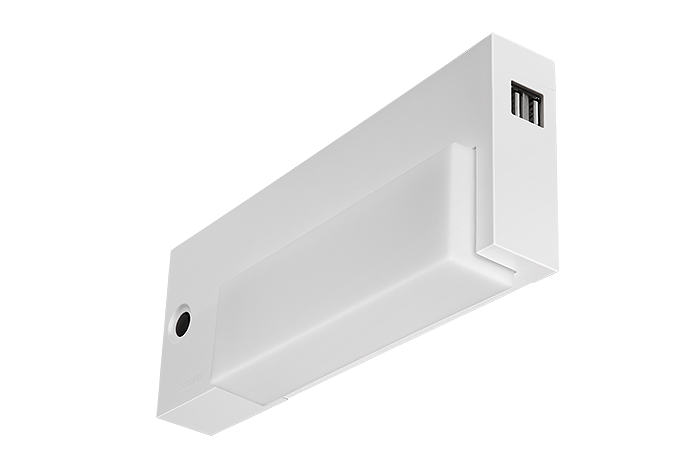

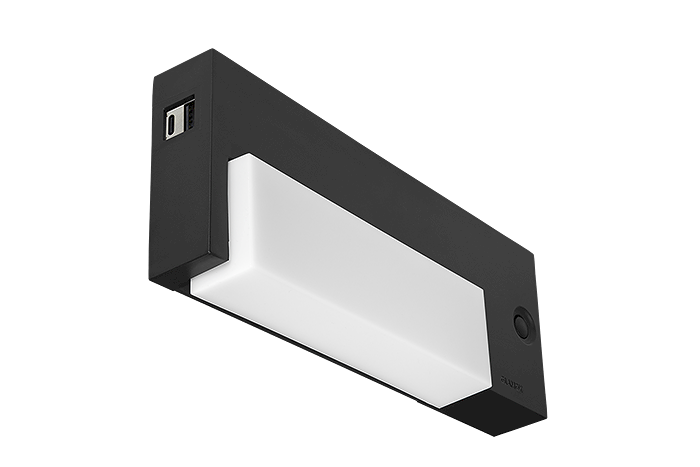

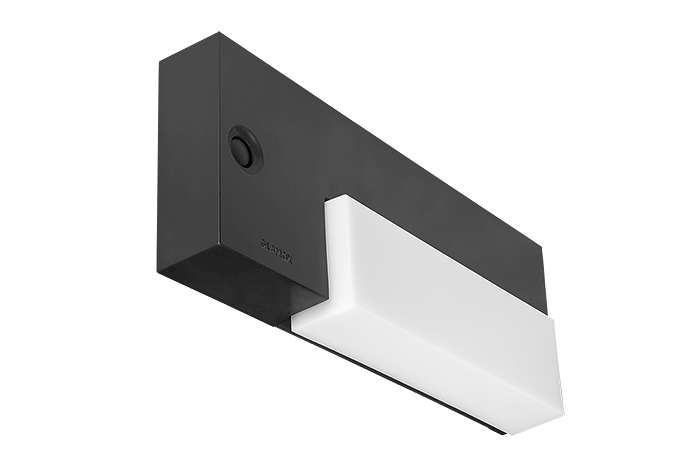

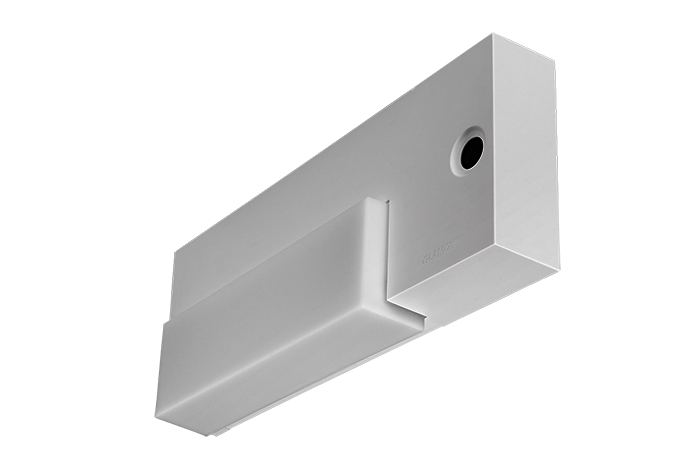

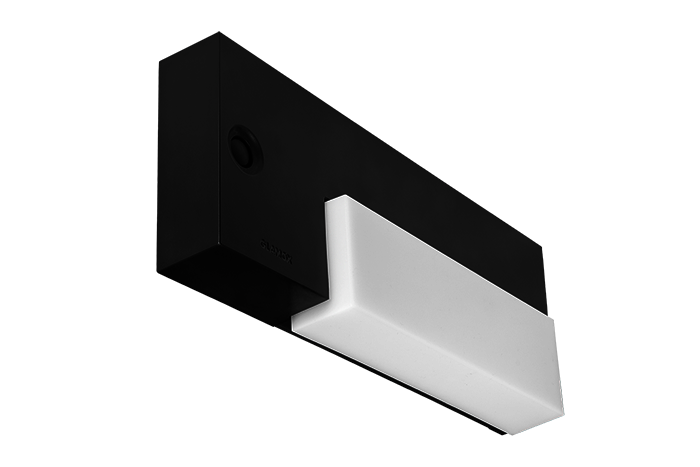

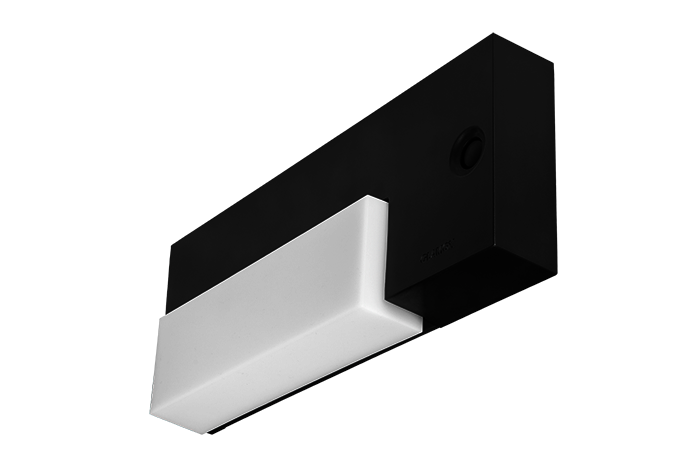

Glamox AL42-W is a compact designed bed light. It has a characteristic modern look and is designed to meet maritime requirements. AL42-W is available with -on/off switch (S) -on/off switch with integrated double USB socket for charging (S and USB) -touch switch with dimming (S-DIM) -touch switch with dimming and with an integrated double USB socket for charging (S-DIM and USB). Available in right- and left-handed version in black and in white. Due to the LED technology the light is energy saving with only 6 W at 353 lm light output. It is easy to install - only three screws for fixing, connect and fix cover. The bed light is flexible to cover 110 - 230 V, 50 - 60 Hz.
Technical specifications
Light Source
- Color tolerances: MacAdams 3 Color rendering: CRI > 8 Color temperature 3000K. 4000K on request Lifetime: Minimum 50 000 hour, L70 at max Ta=35° LED 350 lumen out
Body material and colour
- The housing is made of solid PA (polyamide) in black (BL) or White(W). Geartray in steel white powder painted. Diffuser in white polycarbonate (PC).
Connection
- Connection possibilites with a 3 pole push-in terminal block
Driver
- Offers a choice between switch on/off (S) with fixed output (HF), or switch on/off (S) with double USB charger (USB), or switch with touch dimming on/off (S-DIM), or switch with touch dimming on/off (S-DIM) with double USB charger (USB).
Application
- Glamox AL42-W is a compact designed bed light. It has a characteristic modern look. Due to the LED technology the light is energy saving and it is easy to install.
