Technical specifications

  • Application

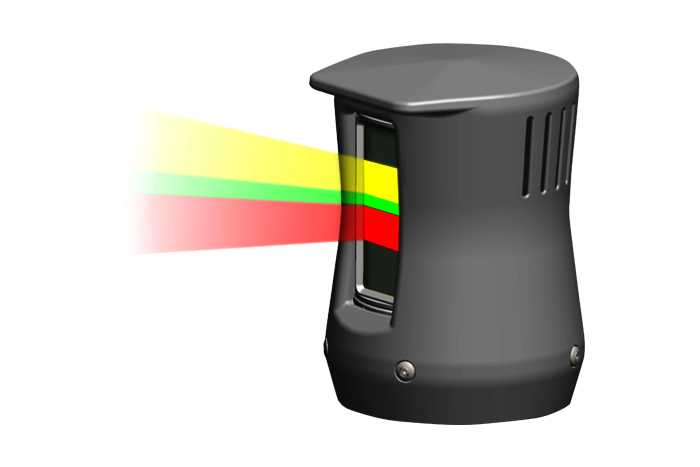

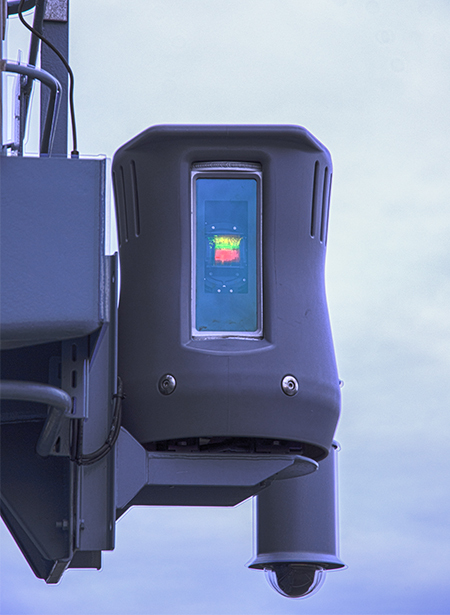

    1. Component of a Helicopter Visual Landing Aid System (HVLAS) by LINKSrechts Optical signalling device for visualisation of the correct glide path during landing approach of a helicopter to the ship Partitioning of the light beam into three sectors of different colours and flash frequencies yellow: low flash frequency, approach angle too high green: continuous light, approach angle correct red: high flash frequency, approach angle too low During night vision operation (NVG) monochrome green light with identical light intensity for all three sectors, distinction by the respective flash frequency compensation of rolling and pitching motions up to +/- 30° Azimuth angle adjustable from 90°…270° Installation possible without shock absorbers due to sturdy design Shock absorber available for very high demands on shock resistance
  • Electrical specification

    1. Nominal Voltage20 ... 32 V DC Rated Voltage24 V DC Rated Power< 300 W
  • Mechanical specification

    1. Dimension (ø x H)515 x 700 mm Material HousingPE / aluminium (seawater proof) Weight HIGPI11265 kg Weight bracket30 kg Weight shock absorber30 kg Rolling angle compensation +/- 30° Pitching angle compensation+/- 30° Azimuth angle adjustment+90 ... +120 °
  • Environmental specification

    1. Operating temperature-25 ... +45°C Ingress ProtectionIP 67 (GL standard 2004)
  • Optic

    1. LightsourceLEDs Light colouramber/green/red Luminous range6 nm
  • Certificate

    1. Electromagnetic compatibility (EMC) - VG95373* Shock resistance - BV0230** Vibration resistance - BV0240*** / MIL-STD-167-1A**** STANG directives *part 10 LA 01 G, GWK:2 (11/2008); part 14 LF 03 G, GWK:4 (11/2008) (LR documet 1228-TCE-500) **class SSK A, test with shock absorber (LR document 1228-ACS-100) ***test with shock absorber (LR document 1228-TCE-201) **** section 5.1.2.4 §2, §3, §6, test with inflexible bracket (LR document 1228-TCE-200)
