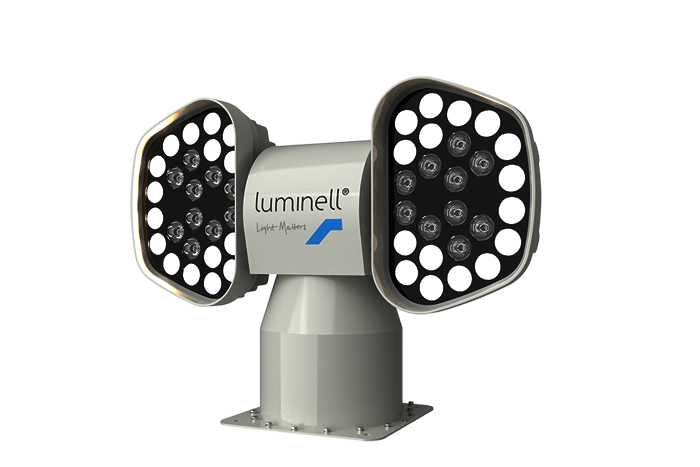

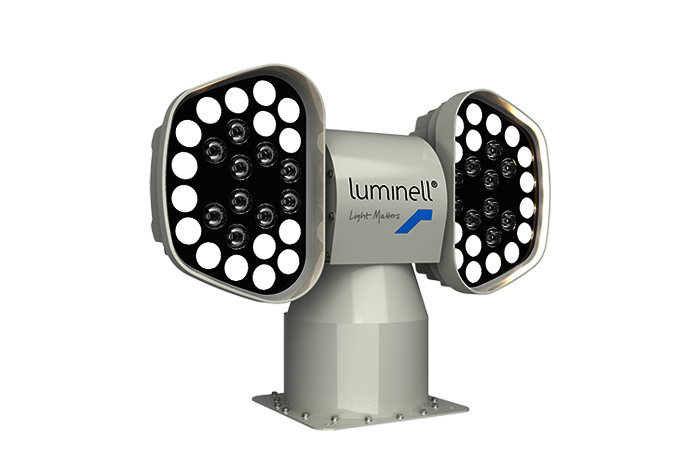

SL2 LED Searchlight

SL2 LED Searchlight

  • Loading...
  • Loading...
  • Loading...
  • Loading...
  • Loading...


The SL2, built on a proven concept, now even more energy efficient and powerful. The SL2 is available in standing or in hanging version and with optional integrated IR thermal camera. The unlimited movement functionality offers limitless operational freedom and superior sea area coverage. In combination with the intelligent Luminell 3G control system it can be connected in a system with all the variants of SL2 and CL25/35/38 models and possible to control many searchlights and control panels in a network. The system is also open to be integrated with other systems onboard. The searchlights from Luminell, targeting the professional customers that actively use their searchlights for their nightly operations, the SL2 is a perfect choice supporting operations by usefulness and less maintenance need. The SL2 is a compact sized and very robust searchlight giving great performance. Based on innovative LED technology, targeting the professional customers that meet the harsh marine conditions, virtually without maintenance maximizing your time in operation. Though the LED technology is relatively new to the market our concept is developed over 20 years and is highly appreciated among mariners all over the world. - A proven robust and functional design - Marine resistant materials of highest class - Virtually maintenance free - Unlimited maneuverability for superior sea area coverage - Superior operator control system with system feedback - Language selections in display - Compact size - Energy Efficient - Powerful LED - 1 lux at 1850m - 40 000 Lm - Digital controlled spot and flood beam - Dimmable beam - Min. 30.000 light hours - FiFi1 regulation compliance - Excellent EMC characteristics - DC or AC power versions available - Standing or hanging version available - Optional with Integrated IR thermal camera - Ready for integration

Technical specifications

  • Technology

    1. Dual Head Searchlight with endless rotation in both pan und tilt. LED light source with dimmable and adjustable beam focus. Remote control and ready for integration.
  • Input power

    1. 18-32 VDC or 100-240VAC, 50/60Hz Maximum Power Draw - 800W
  • Body material and colour

    1. Acidproof Stainless Steel and Anodized Seawater resistant Aluminum. Powder coated in White RAL9016
  • Light output

    1. Spot beam - 3.5° / 40.000 lm / 3.4 MCd Flood beam - 15° / 24.000 lm
  • LN Color rendering index

    1. 70 (minimum)
  • LN Color temperature

    1. 6.000K
  • Range with 1 lux at target

    1. 1.850m
  • Weight

    1. 28kg
  • Dimensions

    1. 26x65x50cm
  • Others

    1. For a working searchlight system also choose: -Ebox, for AC or for DC version. -Cable lengths of mandatory Power-/signal cables. -Operator panel and other accessories
