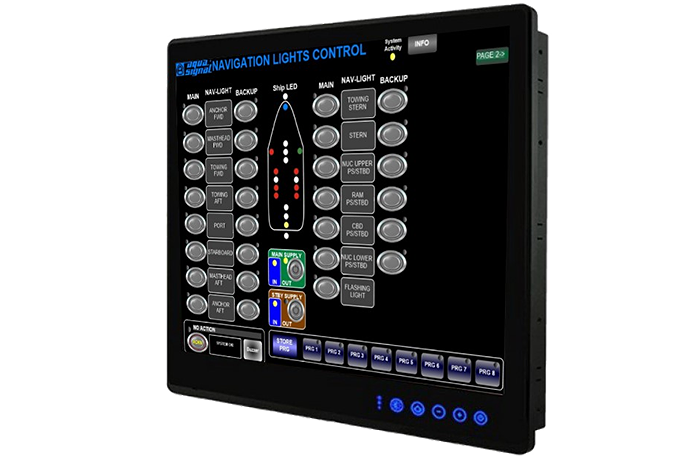

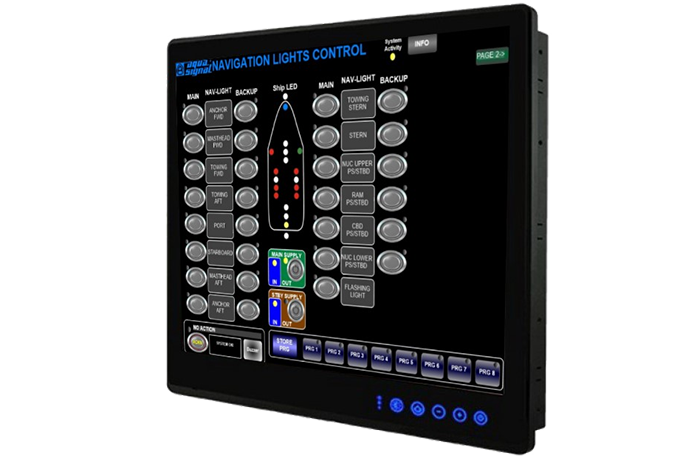

ASC NL101N is a custom pre-configured control and monitoring system for navigation and signal lights by factory. Control is realized with custom made hardwired control Panels. A modular and scalable design makes it suitable for all types and sizes of vessels for Navy and Coast Guard applications.

The complete unit contains a hardwired main control panel for flush mounting, relay modules and Main power unit for installation inside of bridge console or in technical room. It runs under a user-friendly and easy-to-use operation. The system can be extended with additional custom-made slave panels.

The ASC NL101N can handle vessel’s input power supply voltage (including main and standby) of range 100VAC-230VAC (50/60Hz) and 24VDC. Moreover, it may contain up to 14Pcs. of relay modules. The ASC NL101N monitors dual (main and standby) power supply with manual or automatic switch-over function. It continuously monitors the status of lights that are switched on and light's circuitry by checking current for each connected navigational light or All-round light. If the current drops below threshold, the alarm is activated and the system automatically switches to spare light (if exists), however this provides more safety. Each light output is protected by melting fuse or circuit breakers. All Relay modules are equipped with manual override activation features which allow operation even in case of electric failure.

The ASC NL101N, in maximum configuration, controls up to 64 Nav-Lights. It is tested and compatible with standard incandescent bulbs and Glamox / aqua signal LED navigation lights Series 55, 65, 60, 61, 70/70(M), 75(D), 66N(D) MIL, and 76N(D), both Standard and Arctic variants. In addition, The ASC NL101N is DNV certified.

For further technical support, please contact GPD Technical department (gpd.technical@glamox.com).
