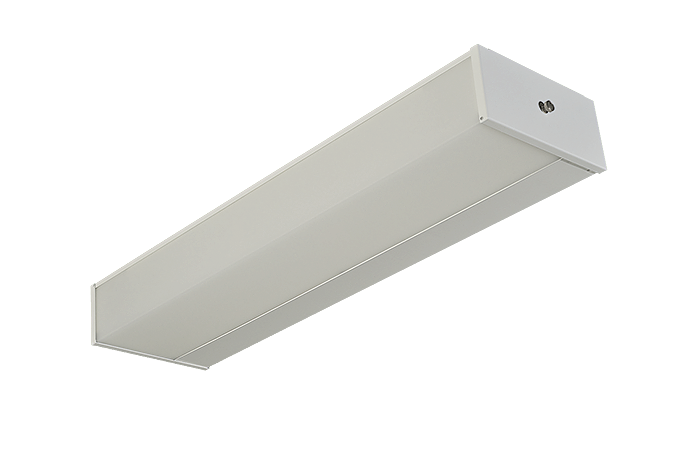

GKASA LED U
Description
Corner lights are applicable for accommodation areas and passage ways for mounting in corner on wall or ceiling. They are designed to meet maritime requirements and UL approval. Steel housing with screw fixing steel end caps. Powder coated white RAL9016. Opal acrylic diffuser.
These corner luminaires have LED light sources.
Technical specifications
Application
- Cabins, corridors, restrooms, etc.
Housing
- Aluzinc sheet steel
Finish
- Epoxy powder coated, white RAL 9016
Diffuser
- 3mm opal acrylic diffuser attached by endcaps
Electrical specification
- Flexible wiring, heat resistant to 105°C.
Cable entry
- One ½" knockout in back and top, others upon request
Battery backup
- Optional 3 hour battery backup. Other configurations available upon request.
Mounting
- Cornice mounting, direct to ceiling or bulkhead.
Dimming
- Available with dimmable driver.
