Wave (M) LED

Wave (M) LED

  • Loading...
  • Loading...
  • Loading...
  • Loading...
  • Loading...

Description

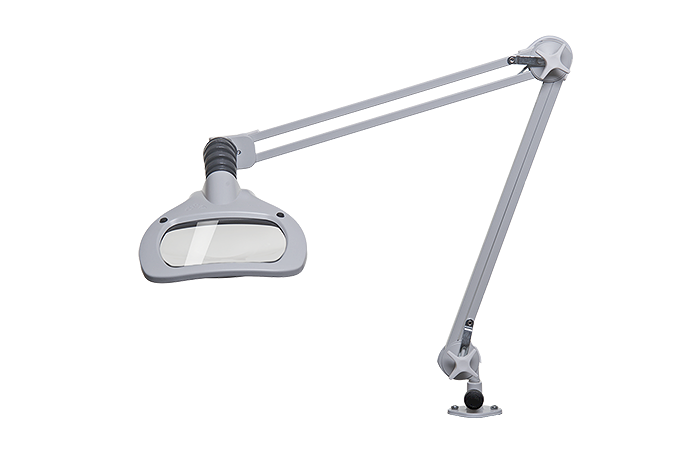

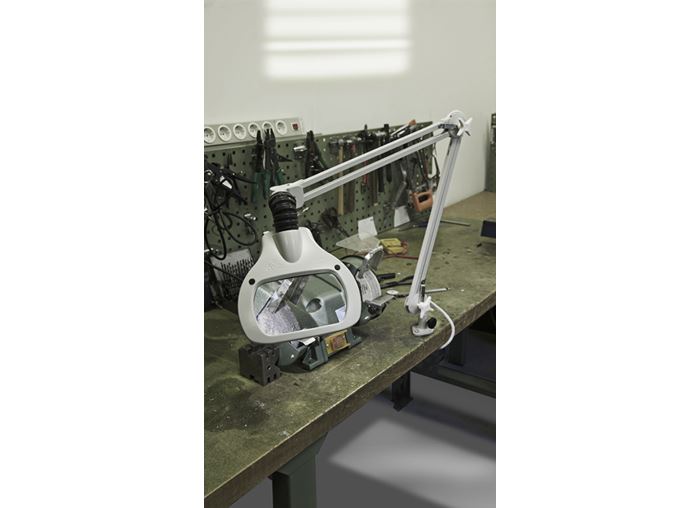

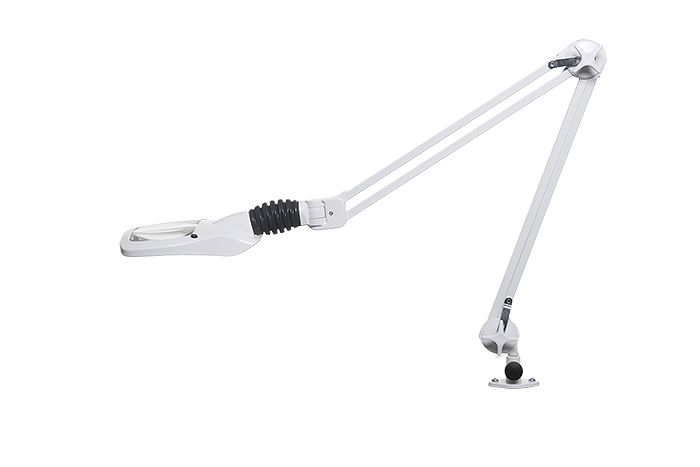

Wave (M) LED is a magnifier for maritime applications. It offers shadow-free magnification with light coming from both sides, as well as three-dimensional magnification with light coming from the left or right. The 3D-feature is especially welcome when working with circuit boards and similar delicate objects. With its rectangular lens, Wave LED is also suitable for reading purposes.Wave (M) it is delivered with friction locking at both arms and table clamp Colours: White or light grey.   Maximum flexibility and precision The flexibility of the joint between lamp head and arm makes exact positioning easy. The spring balanced arm provides maximum vertical and horizontal movement, and will always stay in the right position without drifting. The standard version is supplied with a 3.5 or 5 diopter glass lens. A cloth cover is provided to protect the lens from dust and to prevent the luminaire from inadvertently turning into a burning glass. LED: Light source of the future! Wave (M) LED is equipped with two 6 W LED modules, which are lit individually. The modules are dimmable, and automatically turn themselves off after 4 or 9 hours in order to save energy. Light emitting diodes have an incredibly long life span. The diodes in Wave LED have a life expectancy of 50.000 hours. That means 25 years or more with normal use.

Technical specifications

  • Switch

    1. Two separate switches and three-step dimming 0-50-100%
  • Light Source

    1. 2 x 6W LED modules Colour rendering: CRI 80 Correlated colour temperature (CCT): 4000K Lifetime: min. 50.000 hours
  • Body material and colour

    1. Steel arm, shade in aluminium. Colour: White or light grey.
  • Mounting

    1. Standard with table clamp. Other table clamps, integrated table mounts and trolley are available on request.
  • Optic

    1. Standard with 3.5 or 5 diopter crown glass lens. Lens dimensions are 175 x 108 mm. For additional magnification a secondary lens, 4D, 6D or 10D can be attached to the magnifier.
  • Electrical specification

    1. Delivered with cable and plug
  • Arm technology and movement

    1. Parallel, three-pivot arm. Arm length is 105 cm.
  • Timer

    1. A shut-off function is integrated. The ligt will automatically shut off after 4 or 9 hours.
