EL40
Technical specifications
Available variants

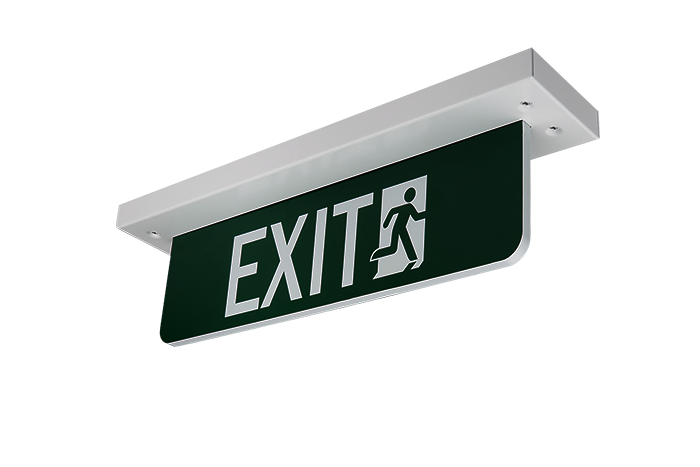

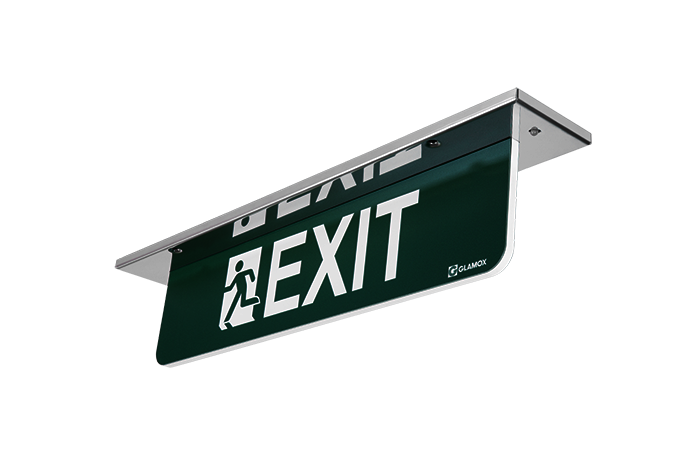

- EL40 is available both as recessed (-R) and surface mounted (-S) versions with and without battery back-up. The battery back-up versions have bodyset, battery, inverter, indicator diode and cover included. Just relevant sign to be ordered in addition. For versions without battery, bodyset, cover and sign need to be ordered.
Design
- According to rules of maritime classification societies and relevant standards

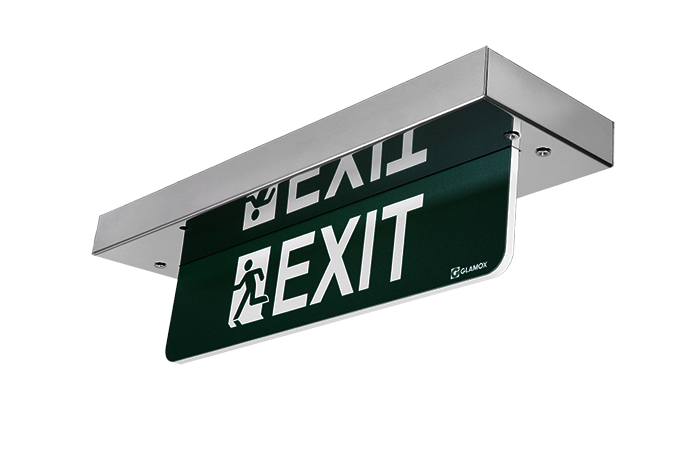

Frame

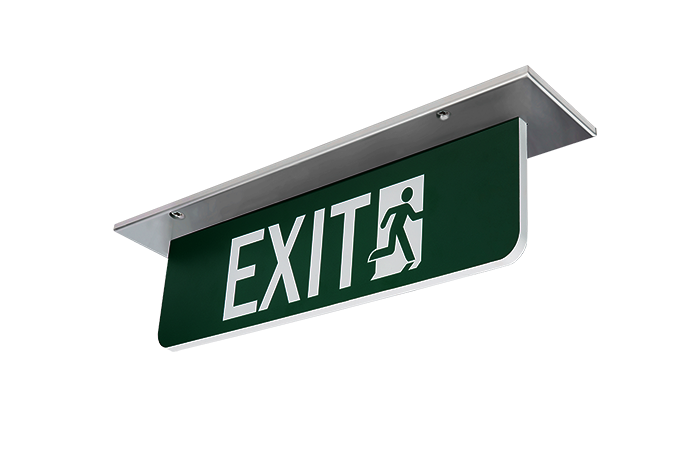

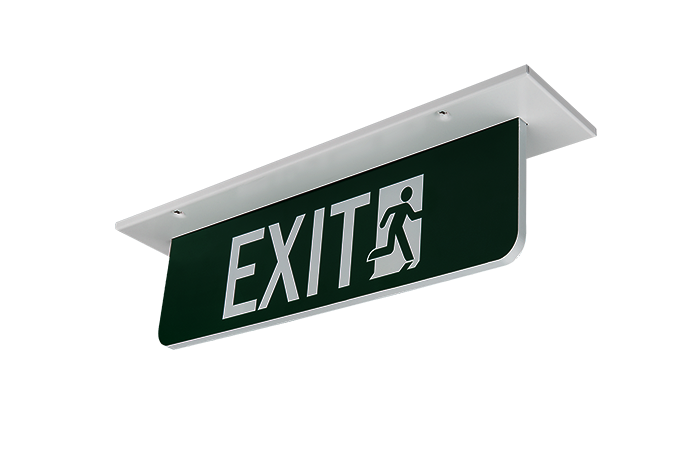

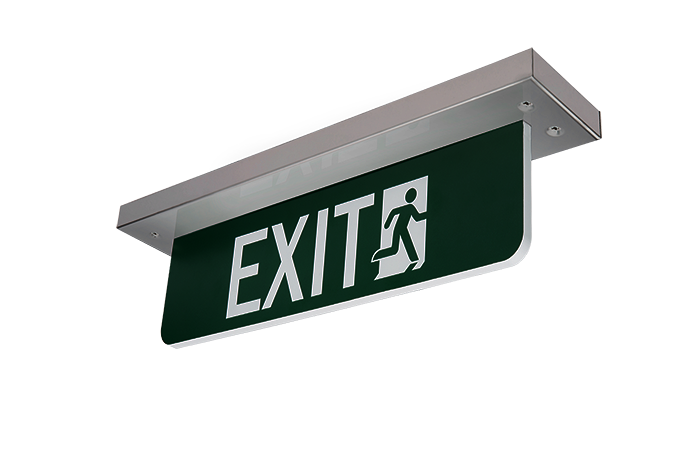

- Stainless steel polished (PS) or white powder coated (WH)
Mounting
- 4 pre-installed screws, Weight ~1kg with sign.
Connection
- Connection cable with WIELAND-RST20I3 3-pole plug IP67 or Wago Midi IP20

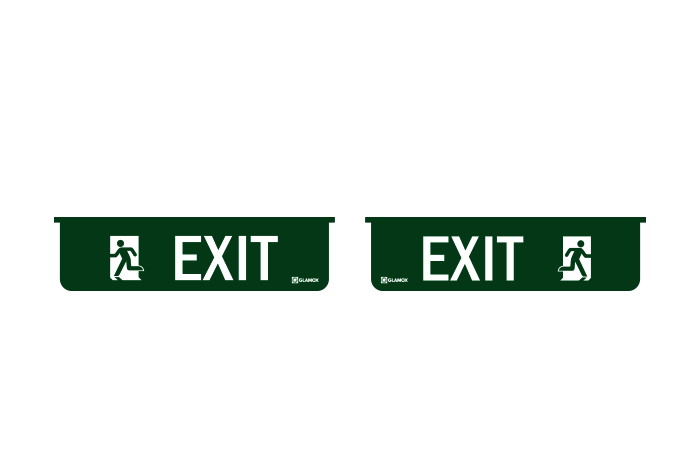

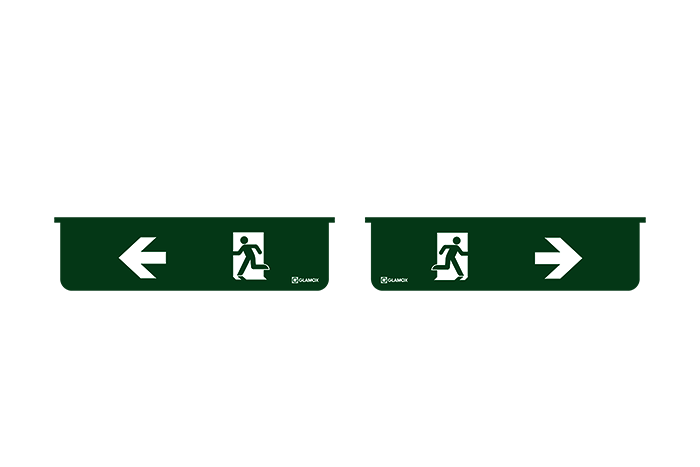

Sign

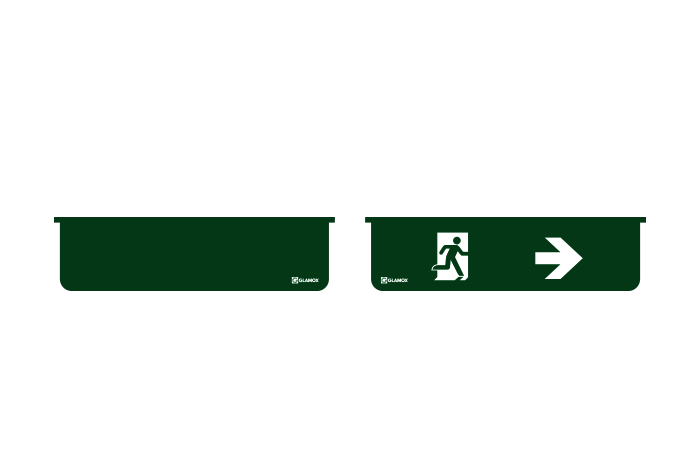

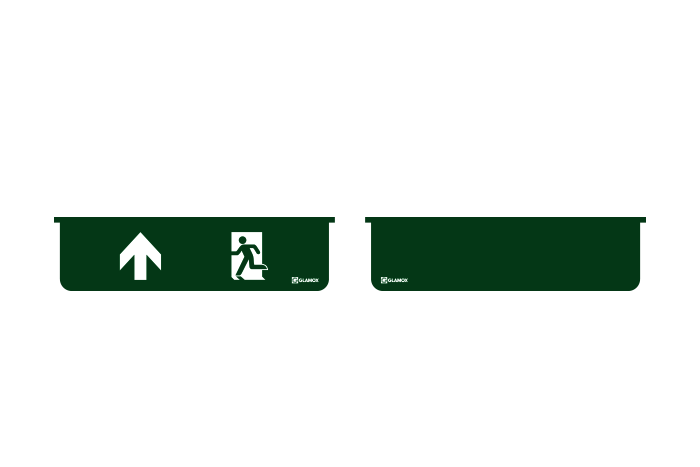

- PMMA. Sign/Pictogram on customer requirements
IP class
- IP67 with Wieland and IP20 with Wago quick connector

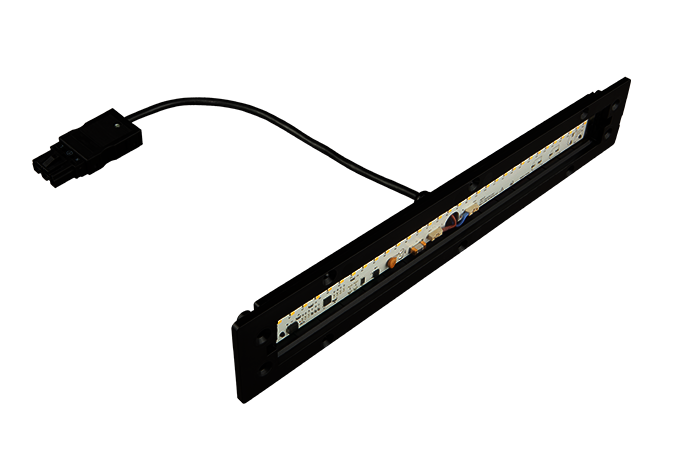

Light Source

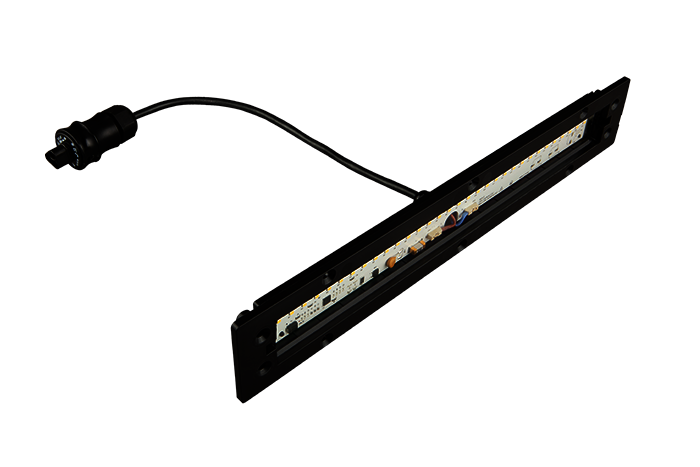

- Linear LED, 1,7 W,
Voltage / Frequency
- 220-240Vac / 50 and 60Hz
Temperature range
- -25°C to +55°C
