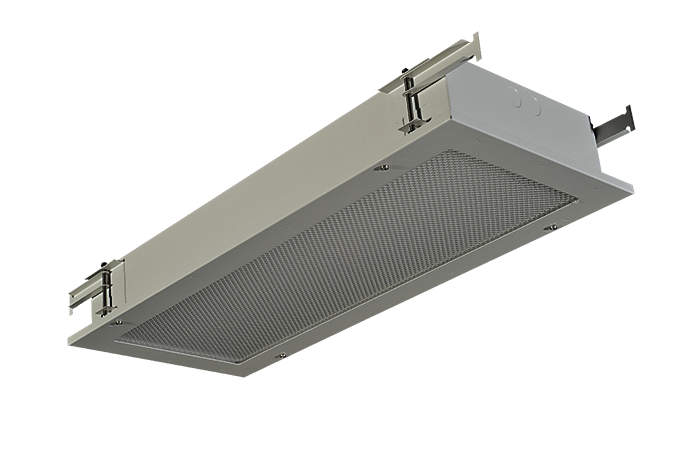

GIM LED UL
Description
GIM ceiling luminaires are applicable for accommodation areas. They are designed to meet maritime requirements and UL approval. Lighting fixtures for ceilings with their high quality light distribution are easy to install and maintain. Some models have a wide range of optical systems and side profiles or frame for adaption to different ceiling types.
GIM ceiling luminaires are available with LED light sources.
Highlights:
Easy installation
Ingress Protection IP44
For use in solid ceilings
Technical specifications
Application
- Cabins, corridors, galleys, pantries, etc.
Housing
- Aluzinc sheet steel, IP44, Epoxy powder coated, white RAL 9016.
Diffuser
- Clear prismatic acrylic diffuser, others upon request.
Electrical specification
- Flexible wiring, heat resistant to 105°C; through wiring up to 15A.
Cable entry
- Two ½" knockouts in each end, others upon request.
Light Source
- LED
Battery backup
- Optional 90 minute or 3 hour battery backup. Other configurations available upon request.
Charge time after full discharge
- 24 hours
Mounting
- Recessed in solid ceiling, swing out brackets for easy adjustment.
dimming
- Optional dimmable driver/ballast available upon request.
