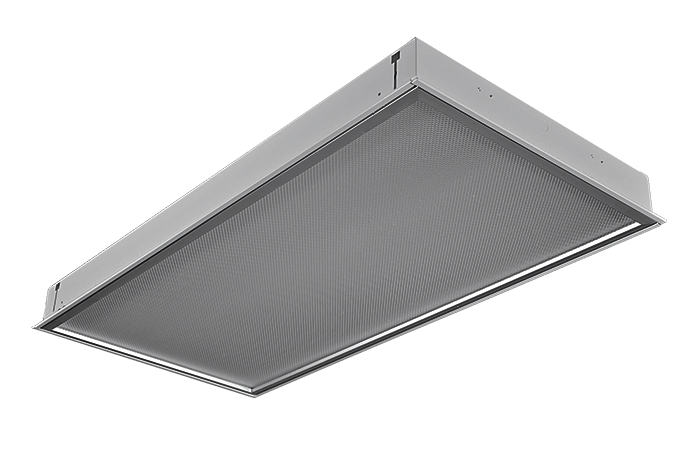

DLT RT (M) 609 LED U
Ceiling luminaires are applicable for accommodation areas. They are designed to meet maritime requirements and UL approval. Lighting fixtures for ceilings with their high quality light distribution are easy to install and maintain. Available with LED light sources. Steel luminaire housing with white epoxy/polyester powder coated paint finish. Can be delivered with optics as FR1, FR2, FR3 or FR4.
- Interior, recessed mounted.
- Aluzinc sheet steel. Epoxy powder coated, white RAL 9016.
- Frame version (FR): Aluminum extrusion frame with a selection of different acrylic diffuser materials. FR1: Double prismatic acrylic panel FR2: Acrylic opal panel FR3: White acrylic grid FR4: Metallized acrylic grid in silver FR5: Double prismatic polycarbonate
- Flexible wiring, heat resistant to 105°C; through wiring up to 15A.
- One ½" knockout in each end and back, others upon request.
- Optional 90 minute or 3 hour battery backup. Other configurations available upon request.
- LED or Fluorescent.
Charge time after full discharge
- 24 hours
- Designed for 24" / 609 mm inverted T-bar ceiling.Standard side mounting kit provided. A 12" version is also available.
- Available with dimmable driver.
