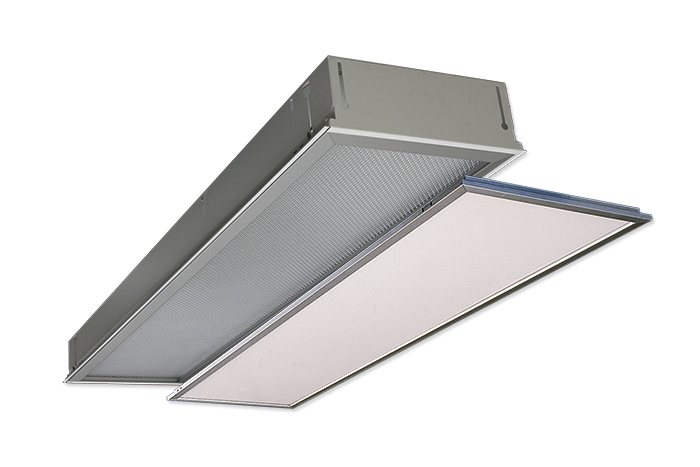

DLT RS (M) LED
Lighting fixtures for panel ceilings
Description
Recessed luminaire, mounting in plank ceilings or solid ceilings. Adaptation for ceiling types with affixed side mouldings/side moulding frames. Side mouldings and side moulding frames are ordered separately. Same for suspension brackets (MNT-I). Steel luminaire housing with white epoxy/polyester powder coated paint finish. Optic (Reflector) can be hinged to both sides for easy installation.
Available with 3 hours battery back-up (EB3) box that has to be ordered separately.
Highlights:
- Energy saving and maintenance saving
- High quality light distribution
- Single or continuous installation in panel ceilings
- Side profiles or frame for adaption to a wide range of ceiling types
- Wide range of optical systems
Technical specifications
IP class
- DLT RS(M) products are IP20 with an FR1 or FR2 optic in front.
Application
- For recessed installation in panel and solid ceilings.
Design
- According to martime requirements.
Housing
- Steel housing and variants of side rails or frames for adaption to most type of panel ceilings.
Finish
- Power Coated white RAL9016.
Optic
- Frame with options of plastic sheet available as accessory: FR1 = Double prismatic plastic FR2 = Opal polycarbonate plastic Ceiling frame or rails tobe ordered separately.
Electrical specification
- With electronic driver HF, with analogue dimming HFDA 1-10V or with emergency HF-EB. External battery box to be ordered separately. DALI dimming on request.
Light Source
- LED 830 or 865, 1400 or 2000 lumen.
Mounting
- To be mounted in modular panel or solid ceiling. ND: Side rails, frames and suspension brackets to be ordered separately. Emergency battery box to be ordered separately.
Connection
- one double hole 20,5 x 41 mm with rubber grommet on top, two knock outs Ø20,5 on other side of top and two knwck outs Ø20,5 on one long side. One 3-way + one 2-way push in terminal block, 2 x 2,5 mm².
