O48
Decorative 3 to 6 m column LED luminaire
Description

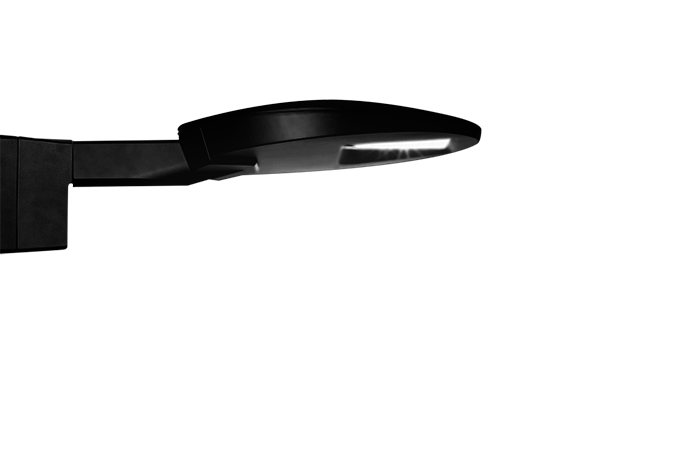

Glamox O48 is a decorative 3 to 6 m column LED luminaire. Suitable for parks, paths and amenity lighting. The luminaire can be mounted on wall with an accessory bracket. Available in three colours; black, anthracite or aluminium grey.
O48 is manufactured with luminaire housing in die-cast aluminium. Double layer polyester powder coated paint finish. Supplied with tempered safety glass covers and two types of optics. The luminaire has silicone gasket and screws are in stainless steel.
O48 is equipped with 6 m pre-assembled rubber cable.
Technical specifications
Wind exposed surface
- 0.16 m²
Driver
- Fixed output (HF) or DALI dimmable (10-100%).
Light Source
- LED 3000 - 7500 lumen out
Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
- LED 3000 - 7500 lumen out
Optic
- Asymmetric (ASY). Wide beam optic for pathway lighting (WBA).
Mounting
On 3 to 6 m pole with top diameter of 60 mm or on wall.

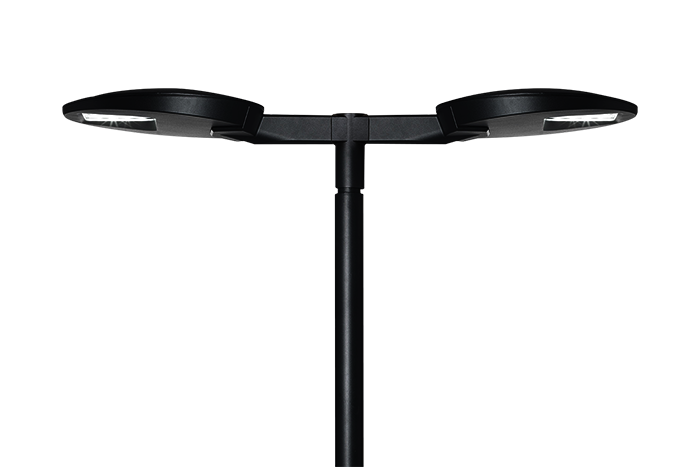

Single -, twin - and wall bracket has to be ordered separately.
Accessories
- Bracket and twin bracket for pole Ø60 mm.
Wall bracket.
- Bracket and twin bracket for pole Ø60 mm.
Connection
- Supplied with 6 m pre-assembled rubber cable.
Protection against surges
- Up to 4kV.
Body material and colour
- Housing in die-cast aluminium. Double layer black (RAL 9005), anthracite (close to RAL 7024) or aluminium grey (RAL 9006) polyester powder coated paint finish. Tempered safety glass cover. Silicone gasket. Screws made of stainless steel.
Light management
- This product is available with Glamox NightDim and can also be supplied with Zhaga socket for connecting communication and sensor units.
For more information see "Light control for outdoor lighting" under “Light Management”.
- This product is available with Glamox NightDim and can also be supplied with Zhaga socket for connecting communication and sensor units.
