O67-R
LED downlight for exterior or interior installation
Description

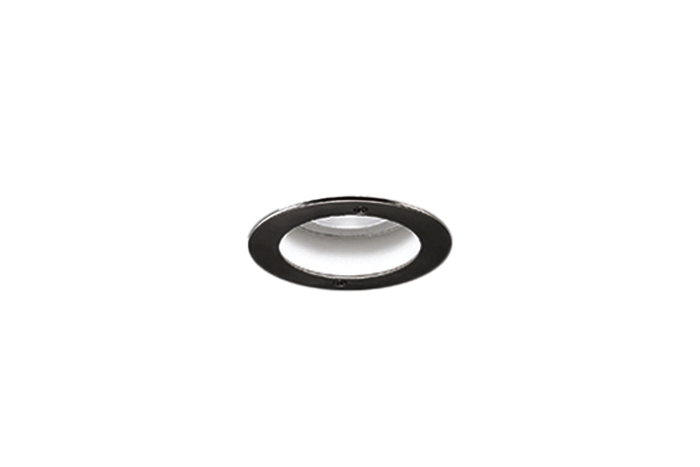

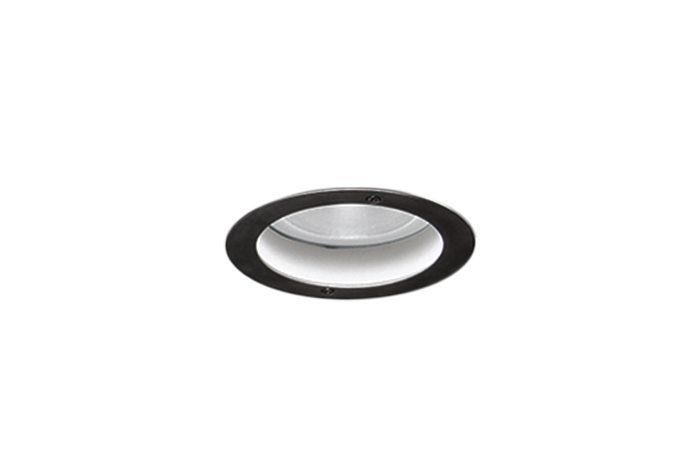

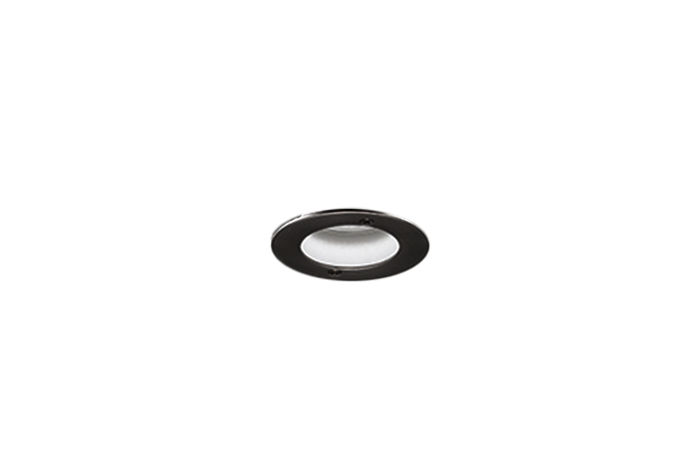

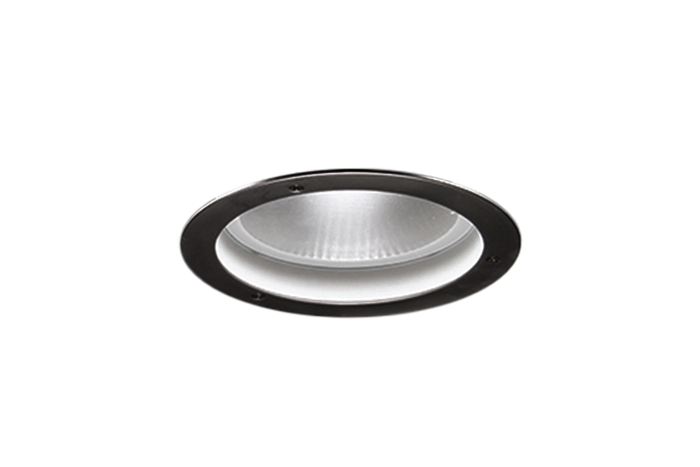

Glamox O67-R is a range of LED downlights for exterior or interior installation. Available in four different sizes.
O67-R is a compact recessed LED downlight. Manufactured with luminaire housing in die-cast aluminium. A first layer of epoxy powder and a second layer of polyester powder coated paint finish. The front ring is available in white coated or matte acid-proof steel (AISI 316L). The front cover is made of textured glass. The luminaire has silicone gasket and all screws are in stainless steel.
Technical specifications
Optic
- Wide beam (WB).
Light Source
- LED 1000 - 4000 lumen out
Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
- LED 1000 - 4000 lumen out
Driver
- Fixed output (HF).DALI on request.
Body material and colour
- Housing in die-cast aluminium. A first layer of epoxy powder and a second layer of polyester powder coated paint finish. Front ring made of white coated (close to RAL 9016) or matte acid-proof steel (AISI 316L). The front cover is made of textured glass. Silicone gasket. Screws in stainless steel.
Mounting
- For recessed installation into a ceiling with thickness of 5 - 35 mm.
The luminaire must not be covered with thermally insulating material.
A metal installation box for concrete ceilings can be ordered separately.
- For recessed installation into a ceiling with thickness of 5 - 35 mm.
Accessories
- Metal installation box for concrete ceiling.
IP68 terminal blocks.
- Metal installation box for concrete ceiling.
Connection
- The external ballast kit is supplied with pre-assembled 30 cm 2x0.75 mm² cable. Quick connector between ballast kit and luminaire.
