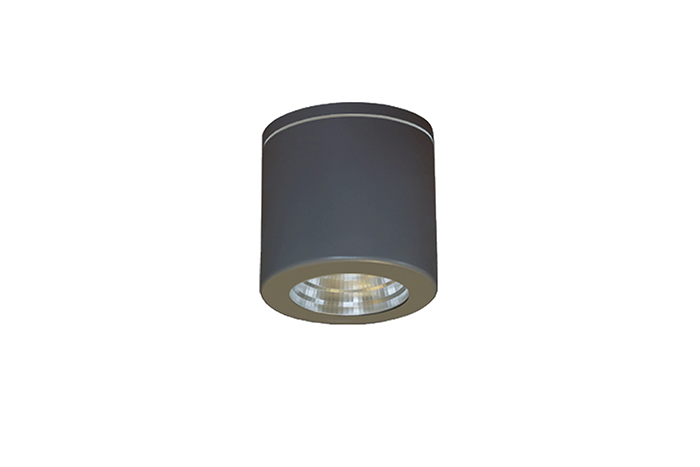

DN S140 MINI
LED downlight for exterior installation
Description
DN MINI S140 is a compact surface mounted LED downlight. Manufactured with luminaire housing in aluminium with aluminium grey polyester powder coated paint finish. Available with wide - and medium beam reflector in metallized polycarbonate. The luminaire has tempered glass cover and silicone gasket.
Technical specifications
Driver
- Fixed output (HF) or DALI dimmable.
Body material and colour
- Housing in aluminium. Aluminium grey (RAL 9006) polyester powder coated paint finish. Tempered glass cover and silicone gasket.
Connection
1 membrane gland (cable Ø8 - 13 mm) on top of the luminaire.
3 pole - (HF) or 5 pole (DALI) 2.5 mm² push-in terminal block in the luminaire housing.
Outdoor use requires suitable flexible cables assuring the water tightness of the cable gland.
Light Source
- LED 700 - 1000 lumen out
Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
- LED 700 - 1000 lumen out
Optic
- Wide beam - (WB) and medium beam (MB) reflector in metallized polycarbonate.
Mounting
- Installation directly on the ceiling.
