O26-SQ240
Decorative quadratic outdoor LED luminaire
Description

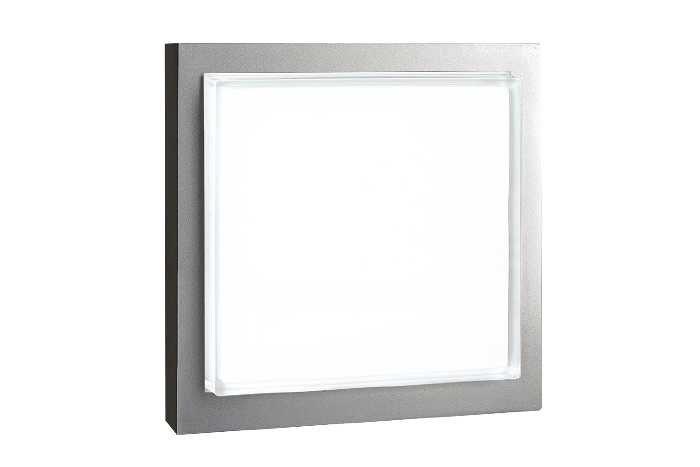

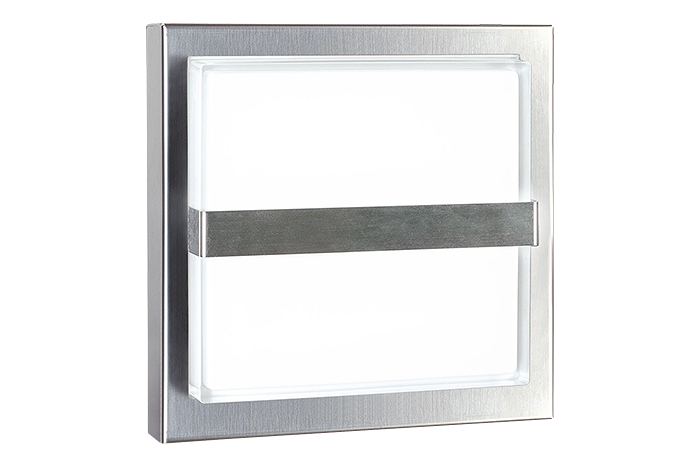

Glamox O26-SQ240 is a decorative quadratic wall or ceiling LED luminaire for residential or commercial use. Manufactured with housing made of die-cast aluminium. Polyester powder coated paint finish in 4 different colours; black, white, anthracite or silver grey.
The diffuser is made of screen-printed glass. Supplied with silicon gasket and screws in stainless steel.
Technical specifications
Driver
- Fixed output (HF).
Mounting
- Installation directly on the ceiling or wall.
Connection
- Cable inlet through two membrane glands on backside of the luminaire. 2pole 2.5 mm² screw terminal block and grounding terminal.
Outdoor use requires suitable flexible cables assuring the water tightness of the membrane gland.
- Cable inlet through two membrane glands on backside of the luminaire. 2pole 2.5 mm² screw terminal block and grounding terminal.
Light Source
- LED 700 - 800 lumen out
Colour temperature 4000 K, CRI Ra 80, MacAdams 3
On request: 3000 K
- LED 700 - 800 lumen out
Body material and colour
- Housing made of die-cast aluminium. Polyester powder coated paint finish in 4 different colours; black, white, anthracite or silver grey. The diffuser is made of screen-printed glass. Supplied with silicon gasket and screws in stainless steel.
