PRO TRACK
Strong profile track for several areas of application
Description
Pro Track is a strong profile track for several areas of applications.

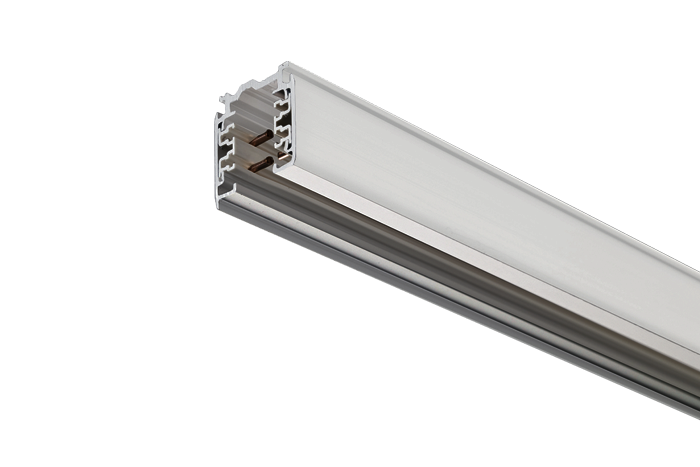

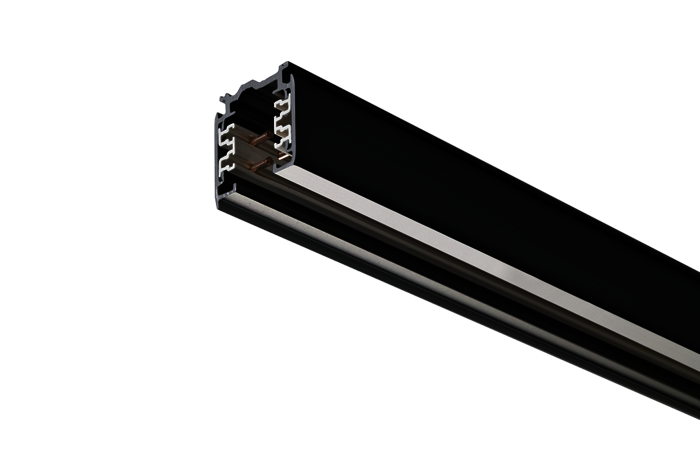

Pro Track is a 3-circuit extruded aluminium profile track for surface mounted installation or suspended on wire. Supplied with insulated 3 mm² copper conductors for 230 - 250V/ 16A.
Available in 2 or 3 metre versions. Colours: white and black.
This strong profile track can withstand a load of 2 kg every 200 mm with a maximum distance between the fixing points of 1000 mm. In case of 5 kg every 200 mm the fixing points have to be maximum 500 mm.
Pro Track rail and necessary accessories must be put together to get a working 3-circuit track. All parts must be ordered separately. Please see Gallery for product pictures or Pro Track user manual for a complete overview.
Technical specifications
Body material and colour
- Extruded aluminium profile 3-circuit track for surface mounted installation or suspended on wire. Two different lengths 2 or 3 m, white or blackolour. Insulated 3 mm² copper conductors for 230 - 250V/ 16A. Mounting details and limitations see user guide that is downloadable as pdf.
Mounting
- Surface mounting direct to ceiling with or without ceiling clamp or to T-bar ceiling system with T-bar ceiling clamp. Pendant mounting with wire or rod suspension. See user manual for more information.
Connection
- Connected to main power by using end, middle, L, T, X feeds 4 x 2.5mm² + earth connector. Straight joint is to be used when tracks are to be jointed together. See user manual for more information.
