MODERNA2-S
Providing a comfortable workstation
- Only 45 mm height
- Quick and easy installation with the CLICK system
- A high luminous efficacy of 142 lm/W while maintaining low glare parameters
Popular
![MODERNA2-S]()
![MODERNA2-S]()
![MODERNA2-S]()
Description

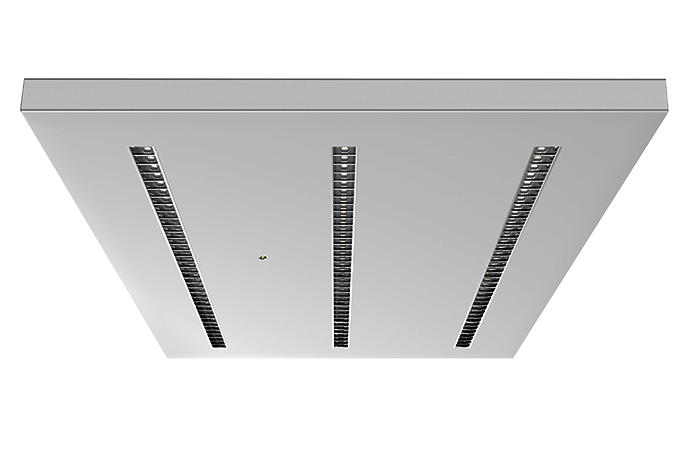

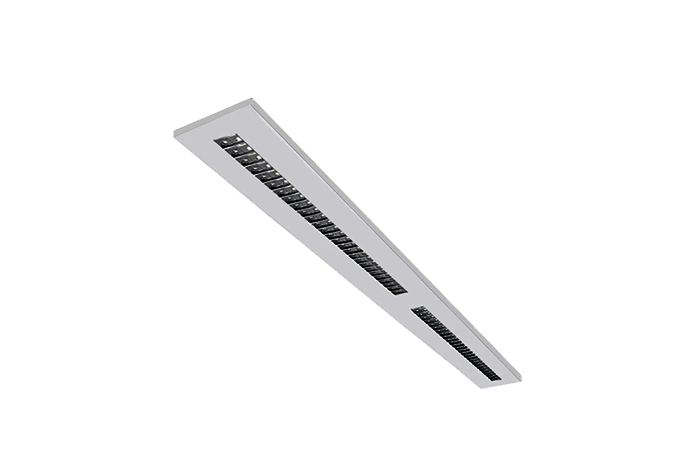

The MODERNA2-S system is a family of surface luminaries with a low glare rating, thereby protecting against excessive fatigue and gradual deterioration of vision. It uses efficient, energy-saving LED light. The specially designed optics provide a highly uniform illumination and exceptional working comfort. The luminaries minimalist design fits seamlessly in modern, austere interiors without dominating their décor. Suitable for installation in a ceiling grid or plasterboard ceiling using additional mounting brackets. The specially constructed optics limits glare and makes the luminaire suitable for use in applications like offices, corridors etc.
Technical specifications
Connection
- 3 or 5 pole push-in terminal block
Emergency system
- Standard (S), Self test (ST) or DALI. 1h or 3h.
Sensors
- MPW-SEN available on request
Mounting
- First mounted a backplate to the ceiling through 4 mounting holes on top. Later a luminaire clicked on.
Light Source
- Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
Light output
- 2650lm - 5800lm
Optics
- Silver matt parabolic louvre (SMP) Modular DARKPOINT optics: a single lens and a black two-step reflector (DK). Modular WHITEPOINT optics: a single lens and a white two-step reflector (WT) A two-layer microprismatic PC diffuser (MP).
Body material and colour
- Body in white painted steel. Black colour available
Accessories
- A set of mounting brackets for plasterboard ceilings with a thickness of 12.5 mm or 25 mm
Certificate
- ENEC, Certificate of hygiene from the Polish National Institute of Public Health - (PZH) Certificate of approval from Poland's Scientific and Research Center for Fire Protection and National Research Institute (CNBOP)
