C25-R G2
Newly arrived
![C25-R G2]()
Description

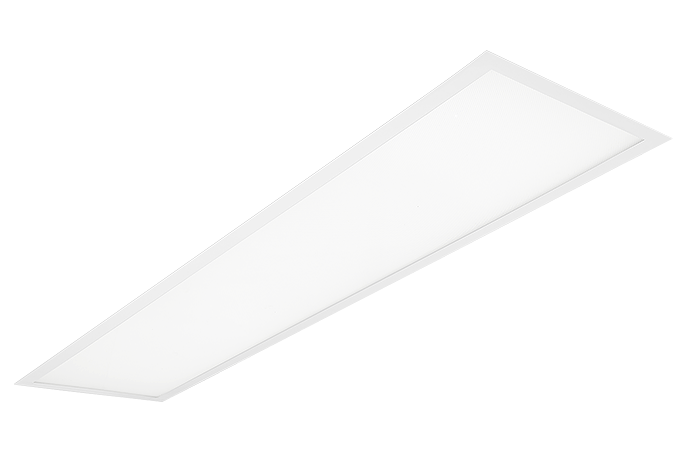

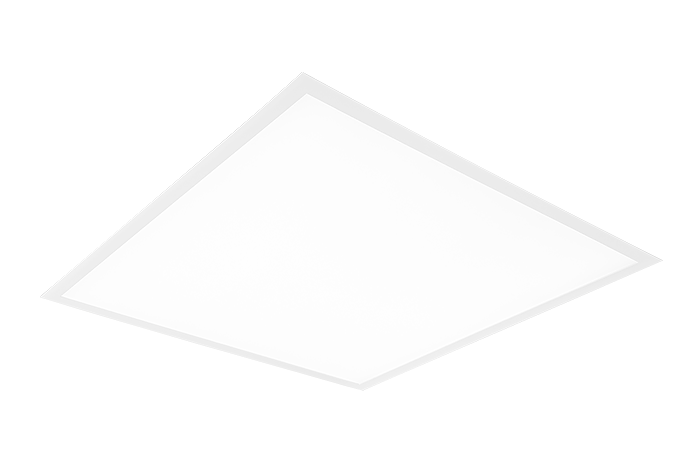

An ultra-lightweight, economical, thin, backlit troffer luminaire for general use. An opal or microprismatic diffuser with even light distribution. A smooth, white-painted aluminum frame. Well-designed luminaire corners prevent light from leaking out. The power supply is connected via a quick connector. Thanks to the luminaire’s protection class II, it can be used in installations without a protective conductor. The luminaire is equipped with a light source and separate lighting control equipment that cannot be replaced by the user.
Technical specifications
Mounting
- C25-R G2 is well suitable for lay-in in 15 and 24mm T-bar ceilings.
Optic
Microprismatic (MP) or opalic (OP)
Light Source
- 3000 - 5000 lumen out Colour temperature 3000/4000 K, CRI Ra 80,
Connection
- Delivered with external driver for 3 or 5 pole connection. Quick connector between the luminaire and the driver.
Body material and colour
- Body in white extruded aluminum.
Lifetime
- L80B50 - 100.000h
Driver
Multi-lumen drivers. Possible settings on the dip switches: 3000/3500/4000/4500/5000 lm Default setting at 4500 lm
