AMICAL
Description

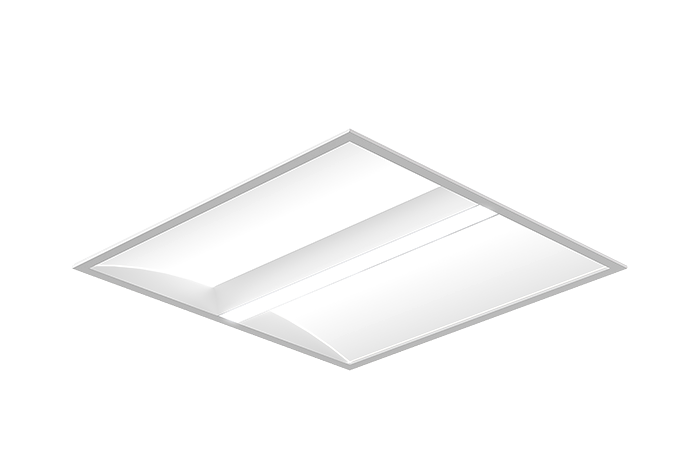

AMICAL - a ceiling-mounted luminaire for offices. Two side, thermoformed diffusers with edge illumination. Three-layer construction consisting of a reflective layer, a light guiding layer and a non-yellowing opal PMMA diffuser. The central additional module can have different optics: microprism (MP), opal diffuser (OP), black reflector (DK), white reflector (WT) or louvre (SMP). Central module mounted on CLICK in an extruded aluminum profile. The electrical connector available from the top of the fixture shortens installation time. Tool-free possibility of powering and mounting the luminaire in modular ceilings.
Technical specifications
Application
- A ceiling-recessed troffer luminaire for offices with unique, multi-part optics with two thermoformed, edge-illuminated side diffusers.
Available variants
- DARKPOINT or WHITEPOINT or a three-layer microprismatic diffuser or an opalized diffuser
Mounting
- entral model with an opalized PC diffuser that is CLICK-mounted in a white powder-coated extruded aluminum profile. White painted steel sheet housing. The electrical connector on the top of the fixture shortens the assembly time. Tool-free power supply connection and luminaire mounting in modular ceilings. The luminaire is equipped with a light source and separate lighting control equipment that cannot be replaced by the user.
Lumen out
- The highest luminous efficacy: 140 lm/W, separate lighting control for the central optics and the luminaire sides
Optics

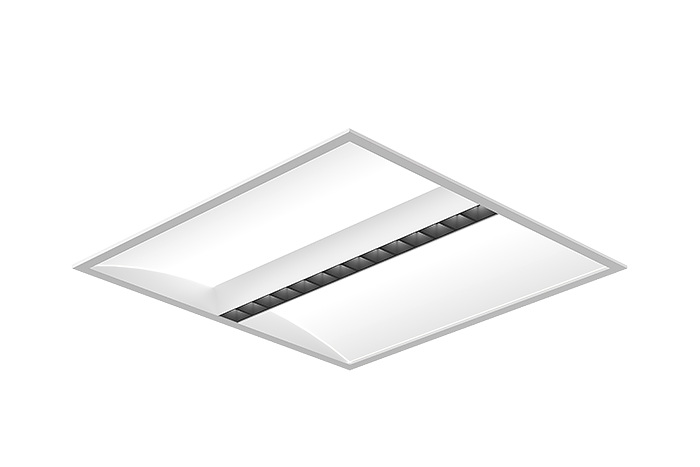

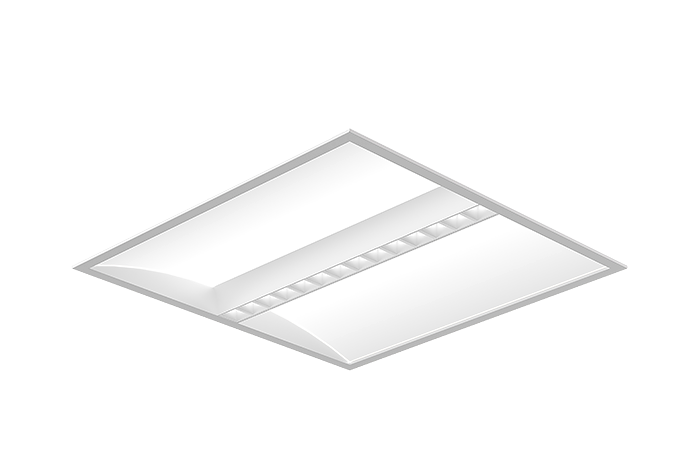

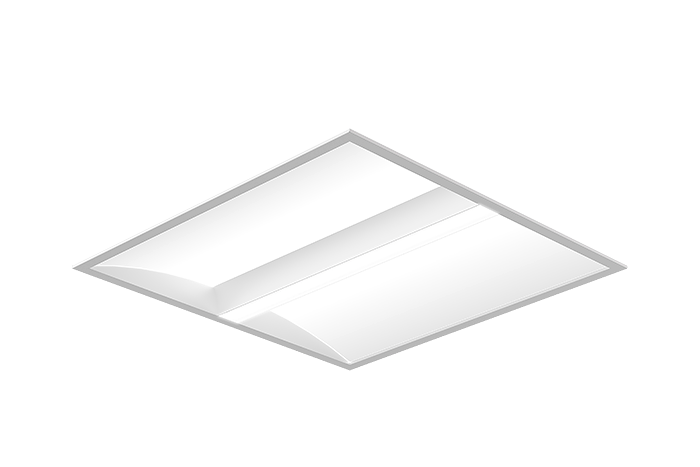

- Various central optics: An opalized PC diffuser DARKPOINT – a PMMA lens and a matte black PC reflector WHITEPOINT – a PMMA lens and a matte white PC reflector A three-layer microprismatic PC diffuser Two thermoformed, three-layer side diffusers with edge lighting
