A55-W
The versatile bedhead luminaire
Description

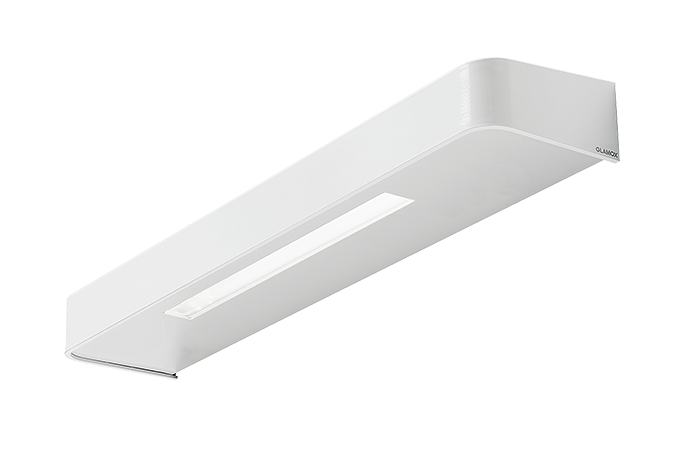

Glamox A55-W is a wall-mounted bedhead luminaire for medical care use, with a design and light quality that contributes to a domestic ambience in the ward or patient room. Still it has all the technical features needed for use in modern healthcare environments.
A wide variety of options

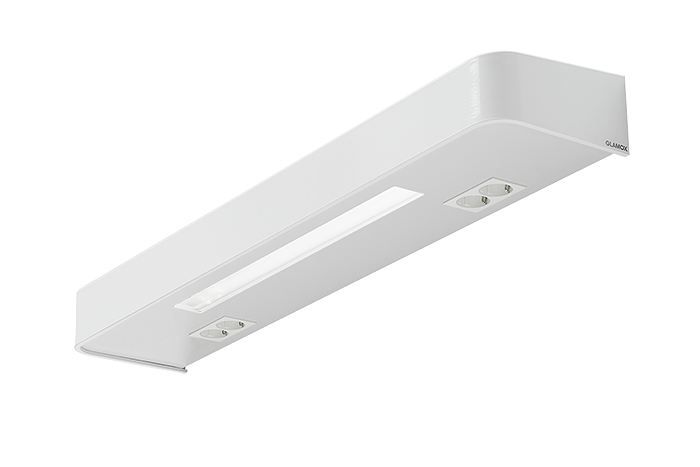

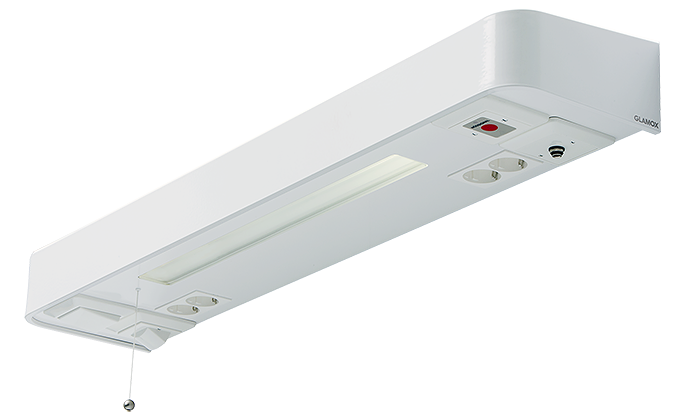

The design of Glamox A55-W allows for a wide variety of options. The luminaire can be equipped with up to four 230V mains sockets. It can also be configured for low voltage equipment such as emergency switches and data modules. We can deliver Glamox A55-W inset with up to four empty installation housings
Glamox A55-W has a curved design with smooth rounded corners, and no sharp edges. The slanted top ensures that cups and other objects that could topple and fall down cannot be placed on top of the luminaire. It fulfills relevant lighting requirements in the European standard EN 60598-2-25 – Luminaires for use in clinical areas of hospitals and health care buildings
Technical specifications
Body material and colour
- Aluminum profile with steel base powder coated Mounting frame in alu-zinc Diffuser up and down in acrylic material resistant to detergents and disinfection liquids.
Light Source
- LED
926 mm length LED 4500 - 5800 Lumen out
1226 mm length LED 5600 - 7000 Lumen out
Light source information:
3000/4000 Kelvin, CCT, CRI 80, CRI 90 on request, MacAdams 3.
Lifetime LED:
Up to 100.000h Ta25.
For precise technical information please see the data sheet on item level. (Use
on right hand side)
- LED
926 mm length LED 4500 - 5800 Lumen out
1226 mm length LED 5600 - 7000 Lumen out
Light source information:
3000/4000 Kelvin, CCT, CRI 80, CRI 90 on request, MacAdams 3.
Lifetime LED:
Up to 100.000h Ta25.
For precise technical information please see the data sheet on item level. (Use
Driver
- DALI
Mounting
- Surface mounted directly to the wall
Connection
- 3/5 pole push-in terminal block ready for through wiring. Electrical connection in center of the luminaries as standard.
