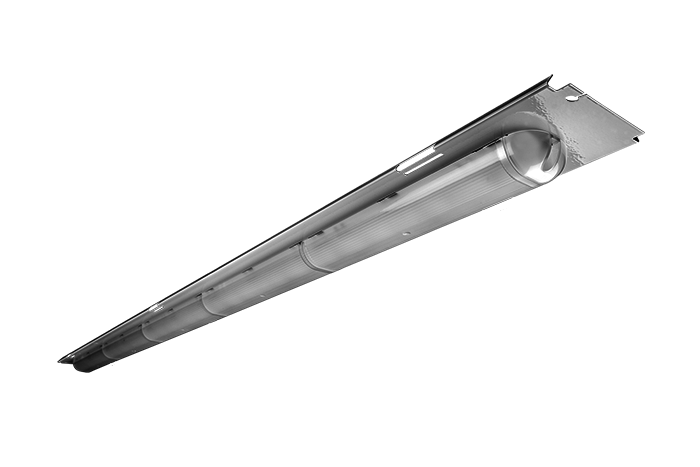

MIR KIT LED
LED replacement kit to upgrade MIR T5/T8
Description
MIR KIT LED is a replacement kit to upgrade MIR T5/T8 to energy efficient LED solution. Equipped with quick connector for easy replacement. Designed for areas with temperatures from -25ºC to +45ºC.
MIR KIT LED is also available with different types of integrated emergency both with internal battery and battery box.
Technical specifications
Driver
Fixed output (HF) and DALI dimmable (10-100%).
Driver life time up to 120 000 h/10 % (max failure) at Ta 25°C.
Connection
- Quick connector. Push-in terminal block for external battery box.
Emergency system
- Standard, Self Test or DALI addressable with internal battery or external battery box.
Light Source
- LED 2000 - 11 000 lumen out
Colour temperature 4000 K, CRI Ra 80, MacAdams 3
On request: 3000 K
- LED 2000 - 11 000 lumen out
Light measurements
- Light measurements are for complete luminaire.
