SCREEN
A solid but still elegant sign
Description

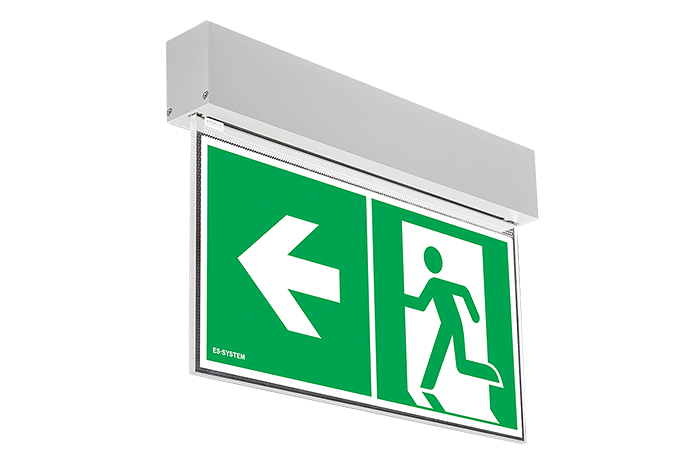

An emergency luminaire based on an aluminum body and a slim double-sided pictogram screen made of polycarbonate. The technology used in our own developed electronics includes micro-controllers for supervising the device’s operation and external communication. The LED module, designed for side illumination of the LGP, has a large number of low-power LEDs that gives a long service life. A unique technology for illuminating the screen gives a perfect uniform sign with no shadows or light spots. Versions for central monitoring using our Vertex or Glamox Connect is available. Pictograms must be ordered separately.
Technical specifications
Body material and colour
- Anodized, extruded aluminium body with sign in polycarbonate.
Mounting
- For surface ceiling mounting. Wall mounting is possible using a installation bracket. ItemNo: 9680140.
Accessories
- Wall bracket and signs must be ordered separately.
Emergency system
- Supplied in standard (S), selftest (ST) or addressable (DALI) system for 1 or 3 hours duration. Available also for central battery (Z and ZA)
Connection
- Cable entry on top. 3 or 5 pole terminal block. All Self contained items can be wired for Non maintained, Maintained and Switched Maintained functionality.
