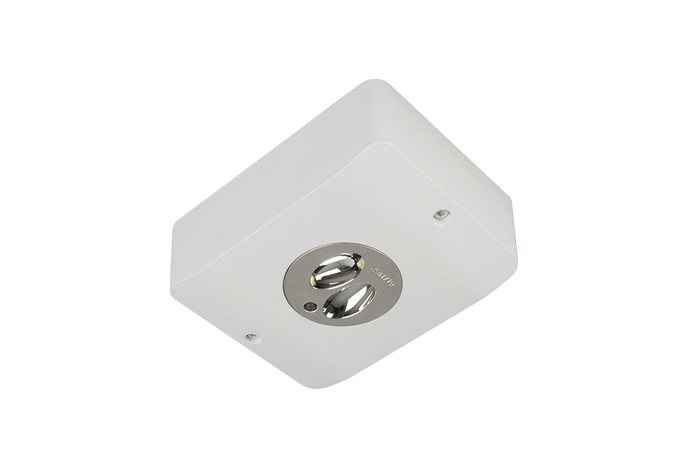

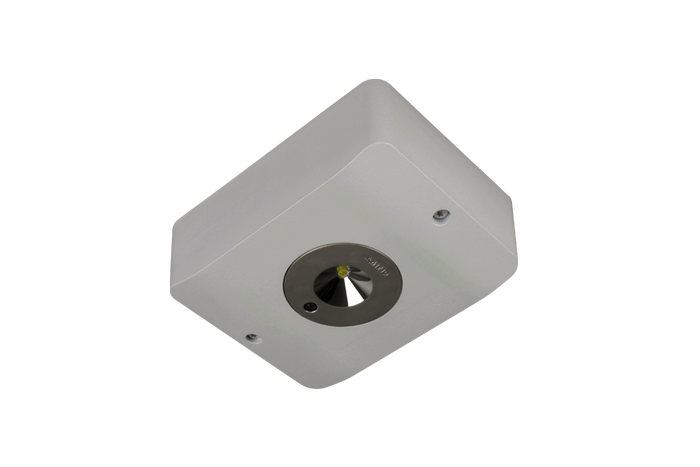

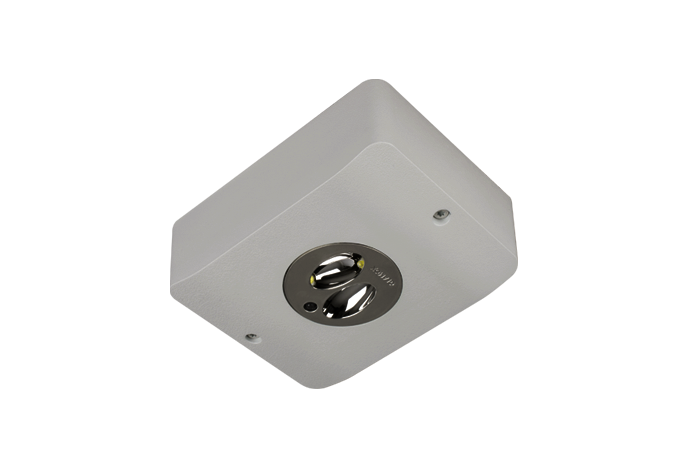

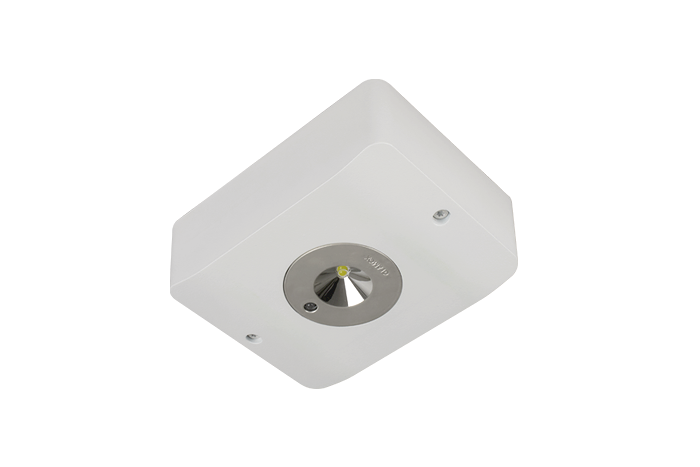

E85-S is a surface mounted escape rout light or anti panic emergency light system based on LED. The escape route system, E85-S C, is especially designed for corridors and covers a 17 meter corridor with 1 lux in centre line. The anti panic light, E85-S WB, have a circular wide beam light distribution that covers 8 x 8 meter with the required 0,5 lux.    E85-S is recognized by the use of hight quality material and components. Both variants can be supplied for manual, selftest and central controlled testing and monitoring. Using a environment friendly NiMh battery. Are also available for centralized battery as E85-S CB variant.

Technical specifications

  • Body material and colour

    1. White painted aluminium with component plate in polycarbonate.
  • Mounting

    1. For surface ceiling mounting.
  • Connection

    1. Cable entry on top and knock-out in each end. A 3 or 5 pole terminal block.
  • Emergency system

    1. Supplied in standard (S), selftest (ST) or addressable (DALI) system for 1 or 3 hours duration.
  • Light Source

    1. LED
  • Battery

    1. NiMH
  • Housing

    1. White painted aluminium with component plate inpolycarbonate
  • Dimensions

    1. W: 118 H: 54 L: 153
