D70-RQ150 G2
Perfect Uniformity
Description
D70-RQ150 G2 is a modern downlight that provides the perfect accent or general lighting for various applications. This lightweight product is easy to mount with only two screws and quick connectors for the mains cabling. It comes with four different reflector options and two types of trims to suit any type of interior in offices, healthcare, schools, retail or other applications. The D70-RQ150 G2 is part of the bigger D70 G2 family, which creates consistency throughout the whole project.
Technical specifications
Light Source
LED 800-3500 lumen out. Colour temperature: 3000/4000 K. CRI Ra 80. MacAdams 3. Tunable White (CCT).
Optics

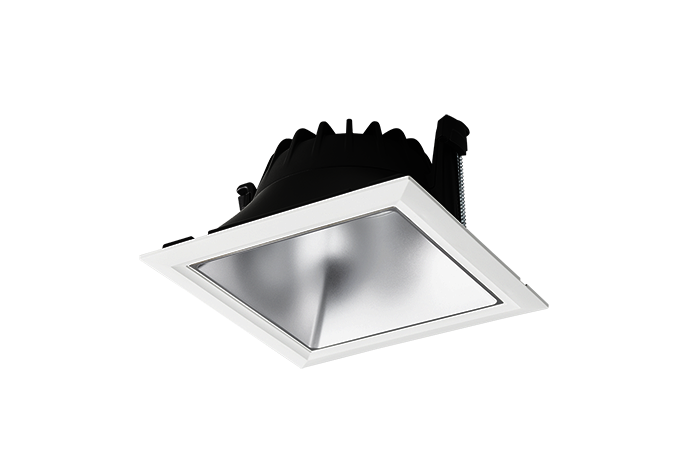

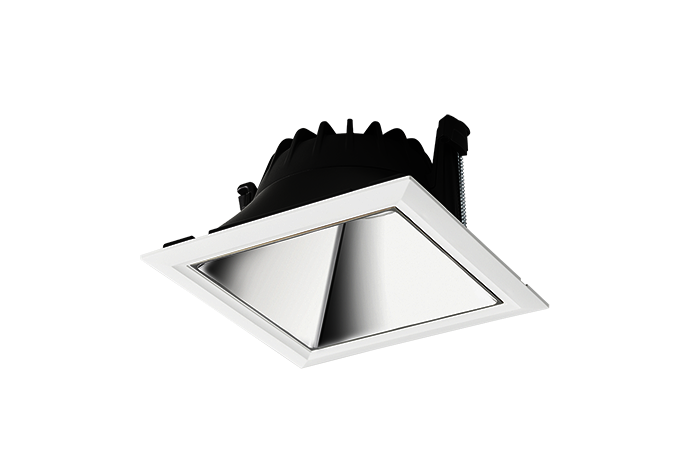

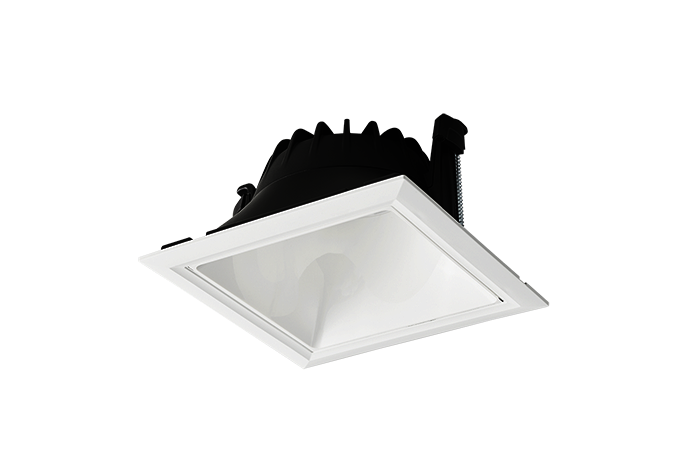

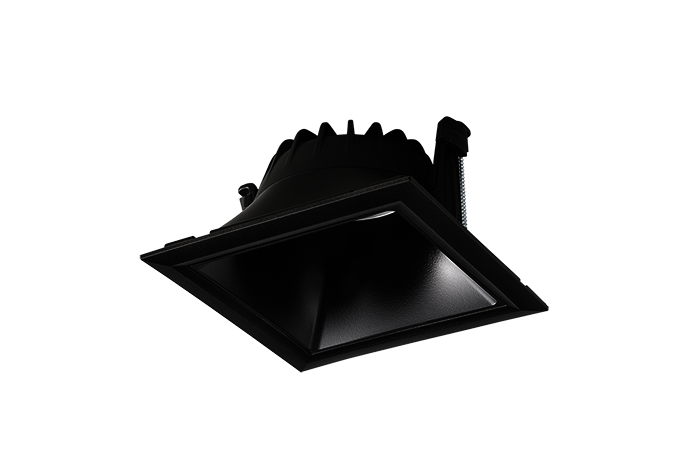

Lens optics in front of the LED light source. A treated or painted reflector in Silver Matte (SM), Silver (SI), White Matte (WM) and Black Matte (BM).
Body material and colour

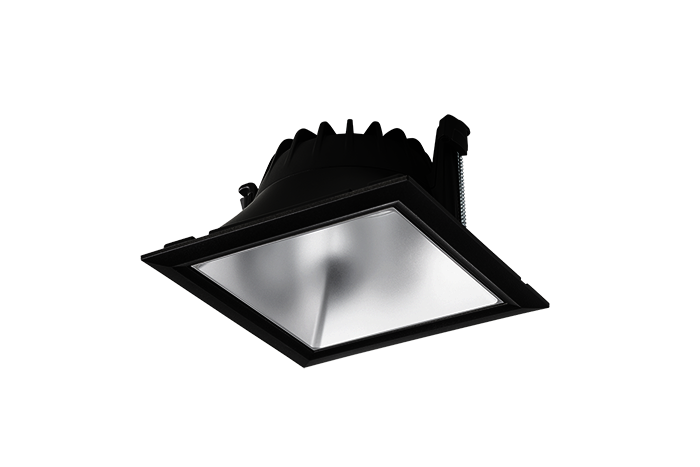

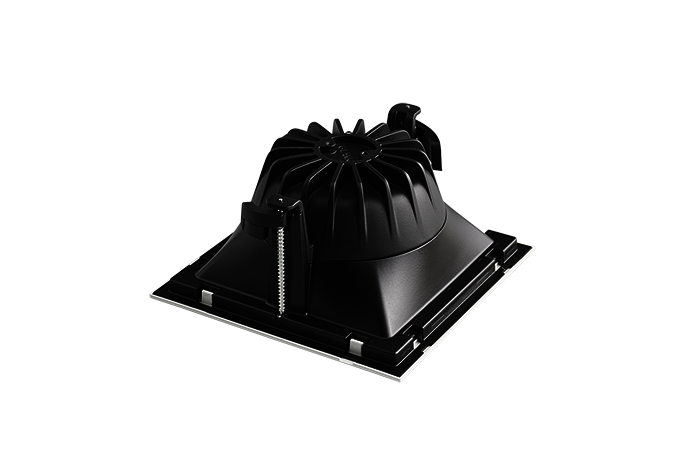

Black powder-coated aluminium body. Plastic reflector in different treatments and colours (see optics). Plastic trim in white or black.
Driver
HF (on/off) and DALI (dimmable) drivers with a lifetime up to 100,000 h (10% max failure) at Ta 25°C.
IP class
- IP55 from undernath, IP20 from above.
Mounting
External linect (LI) box as standard.
Special features
- This luminaire can be modified. Please ask your local sales responsible for special requests. Typical special features can include: various lumen values, other CRI(Ra) values, colours on trims, reflector types, other connection types, etc.
Sensors
D70-RQ150 G2 can be fitted with standard or wireless sensors. Microwave sensors are placed above the ceiling in a driver box for invisible installation. PIR sensors can be mounted on the side of the downlight.
Emergency system
- Standard (S), SelfTest(ST) or DALI. 1h or 3h.
