i55
High quality and industrial long life luminaire for chemical environments
Description

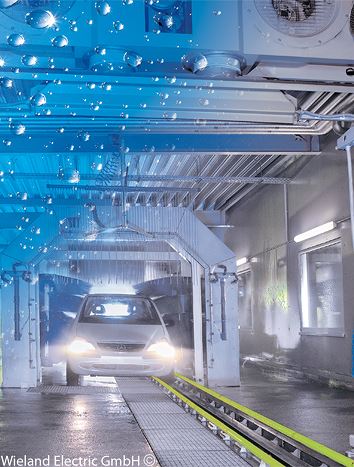

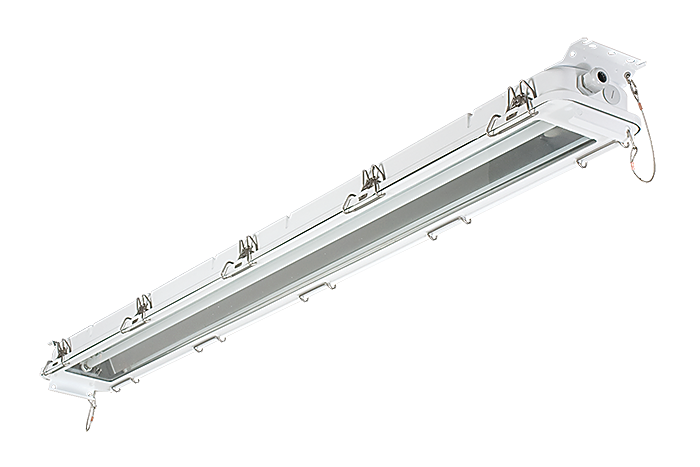

Glamox i55 is an impact-resistant and chemical resistant IP66/67 luminaire with diffuser in 5 mm tempered safety glass. The luminaire is very well suited for most chemical environments and is ideal for use in car washes, grease pits and chemical industry. Comes with stainless steel safety wire, easy installation and maintenance.
The luminaire housing is manufactured in Aluzink or acid-proof steel with white epoxy/polyester powder coated finish. Alternatively in unpainted acid-proof steel.
Important information
Please note that a mixture of chemicals can be very aggressive and destructive to the luminaire housing even when each individual chemical doesn’t pose a problem. It is therefore important to choose the right type of material for the luminaire housing. In case of doubt, please contact Glamox.

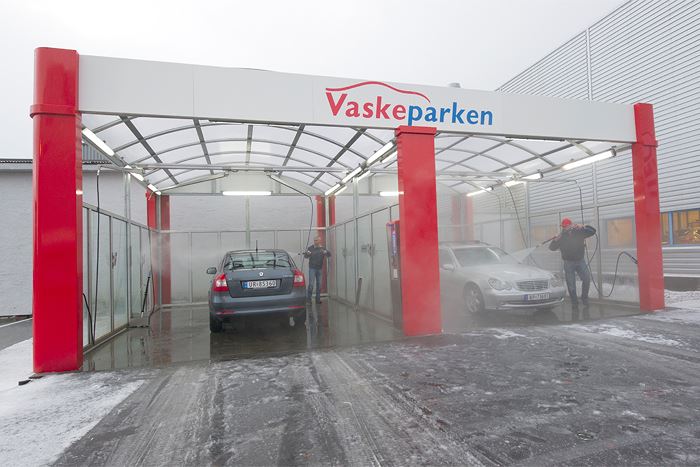

For car washes were acid based cleaners are used, you have to select a luminaire housing in acid-proof steel.
Technical specifications
Body material and colour
- Housing in Aluzink or acid-proofsteel with white epoxy/polyester powder coated finish. Alternatively in unpainted acid-proof steel. Tempered 5 mm safety glass cover with silicone gasket, spring-loaded acid proof steel clips and safety wires.
Driver
- Fixed output (HF) and DALI dimmable (1-100%).
Driver life time up to 120 000 h/10 % (max failure) at Ta 25°C.
- Fixed output (HF) and DALI dimmable (1-100%).
Connection
- 5pole6 mm² screw terminal block. 5 x 2.5 mm² through wiring.
5-way chassis plug in both ends on request.
- 5pole6 mm² screw terminal block. 5 x 2.5 mm² through wiring.
Light Source
- LED 5400 - 8100 lumen out
Colour temperature 4000 K, CRI Ra 80, MacAdams 3
On request: 3000 K
- LED 5400 - 8100 lumen out
Mounting
- The luminaire is supplied with fixed end brackets.
Cable entry
- 1 x M20 polyamide blind/cable gland (cable Ø7 - 14 mm) in each end.
1 x M25 polyamide blind/cable gland (cable Ø9 - 18 mm) in each end on request
. Supplied with 1 extra blind.
- 1 x M20 polyamide blind/cable gland (cable Ø7 - 14 mm) in each end.
Accessories
- Suspension kits.
