O38
Description

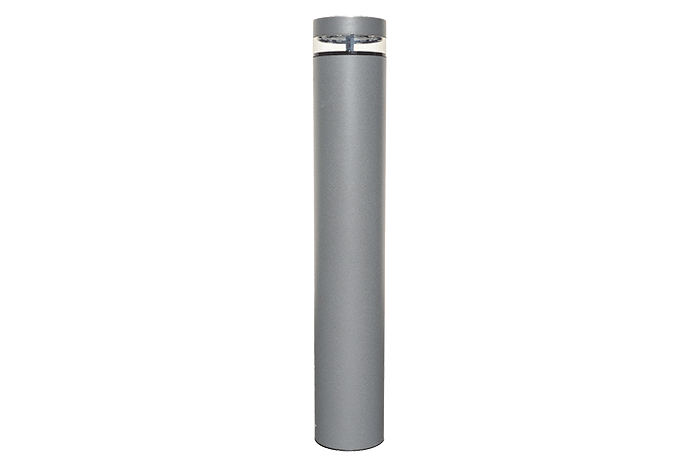

Glamox O38 is a robust and decorative bollard. Suitable for lighting pathways, entrances, parks and amenity areas. O38 is available in two different colours; black or silver grey.
O38 is manufactured with luminaire housing in extruded and diecast aluminium. Polyester powder coated paint finish. Supplied with polycarbonate diffuser. The bollard has silicone gasket and all screws are in stainless steel.
Technical specifications
Accessories
- Root column.
IP68 junction box.
- Root column.
Body material and colour
- Housing in extruded and diecast aluminium. Polyester powder coated paint finish in colour black (RAL 9005) or silver grey (RAL 9006). Polycarbonate diffuser. Silicone gasket. Stainless steel screws.
Connection
- Supplied with pre-assembled rubber cable.
Outdoor use requires suitable flexible cables assuring the water tightness of the cable gland.
- Supplied with pre-assembled rubber cable.
Light Source
- LED 1000 lumen-out
Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
- LED 1000 lumen-out
Driver
- Fixed output (HF).
Mounting
- Mounted to a root column that has to be ordered separately or directly to fixed base.
Protection against surges
- Up to 4kV.
