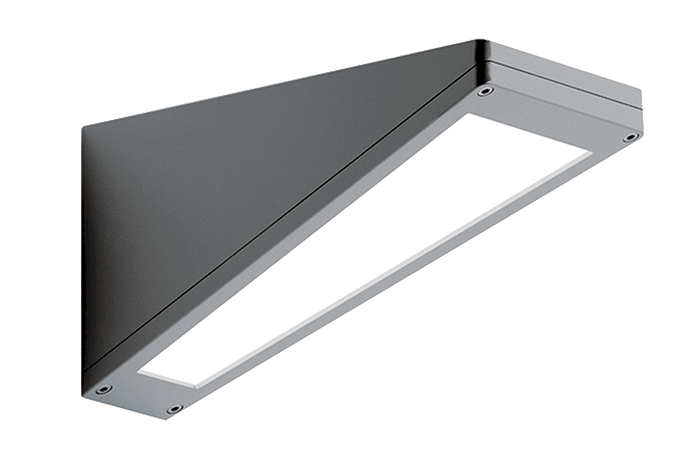

O22
Decorative wall luminaire
Description
Glamox O22 is a decorative wall luminaire for residential or commercial use. Suitable for both exterior and interior use. Available in three different colours; black, white or silver grey.
O22 is manufactured with body made of diecast aluminium. Polyester powder coated paint finish. Supplied with frosted tempered glass diffuser and an aluminium reflector. The luminaire has silicone gasket and all screws are in stainless steel.
O22 is manufactured with body made of diecast aluminium. Polyester powder coated paint finish. Supplied with frosted tempered glass diffuser and an aluminium reflector. The luminaire has silicone gasket and all screws are in stainless steel.
Technical specifications
Body material and colour
- Body made of diecast aluminium. Polyester powder coated paint finish. Black (RAL 9005) white (close to RAL 9001) silver grey (RAL 9006) Frosted tempered glass diffuser. Aluminium reflector. Silicone gasket Screws in stainless steel.
Driver
- Fixed output (HF).
Light Source
- LED 500 lumen out
Colour temperature 4000 K, CRI Ra 80, MacAdams 3
On request: 3000 K
- LED 500 lumen out
Mounting
- Installation directly on the wall.
Connection
- Cable inlet through membrane gland on backside of the luminaire.
3 pole2.5 mm² screw terminal block.
Outdoor use requires suitable flexible cables assuring the water tightness of the membrane gland.
- Cable inlet through membrane gland on backside of the luminaire.
3 pole2.5 mm² screw terminal block.
