C90-RC
Description
Description

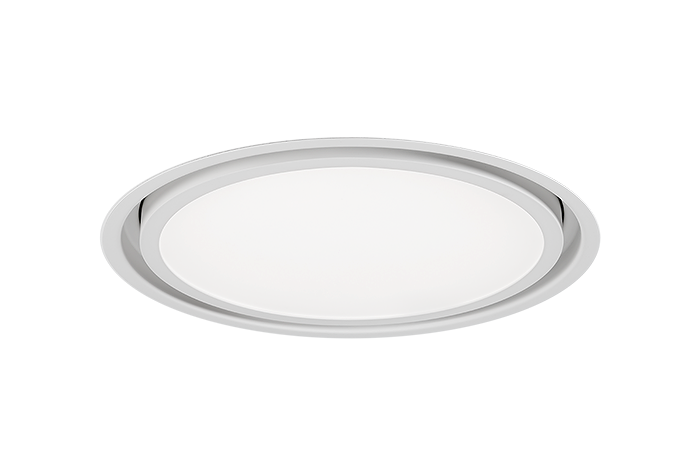

Glamox C90-RC is a circular recessed luminaire for high specification areas. The diffuser is evenly illuminated. The body is available in white or black with other colours available upon request.
Semi-recessed
C90-RC can be semi-recessed with an accessory, which allows the luminaire to adjust out from the frame either 30 mm or 50 mm.
Complete product family
C90-RC can of course also be combined with surface or pendent mounted products in the C90 family. This way it’s possible to have a consistent aesthetic feel with the same product family for a complete project to create a harmonious design with high quality products throughout.
Light management and Human Centric Lighting
C90-RC is available with DALI dimming and is compatible with all Glamox Light Management Systems. The luminaire can also be supplied with tunable white technology, which means that it can be used in a Human Centric Lighting solution.
Technical specifications
Mounting
- Suitable for recessed mounting in plasterboard ceilings or softtile structure ceilings in T-bar systems
Connection
- Delivered with external driver for LINECT, 3 or 5 pole connection.
Accessories
- Recessed mounting with weight distribution plate as accessory for soft structure ceilings.Can also be semi-recessed 30 mm or 50 mm with accessory.
Light Source
- LED 2800 lumen outColour temperature 3000/4000 K, CRI Ra 80, MacAdams 3Tunable white (CCT)
Optic
- Opal (OP) or microprismatic (MP)
Driver
- Electronic ballast (HF) or DALI. Driver lifetime up to 100,000 h/10 % (max failure) at Ta 25°C.
Sensors
- This product is available with integrated PIR sensor type SPR-SEN with relay based ON/OFF switch or a PIR sensor wired for Corridor function type SPC-SEN. It is also available with a combined PIR and Constant Light sensor with integrated DALI Power supply type MPP-SEN or a slave PIR version type MPS-SEN.For more information see user manual for the respective sensor under “Download”.
Emergency system
- Standard (S), Self test (ST) or DALI. 1h or 3h.
Body material and colour
- Aluminium body, powder coated in white or black structure.
Certificate
- Possibility of delivering an Environmental product declaration (EPD)
