i25
Placement friendly and robust IP67/IP68 LED luminaire.
Description

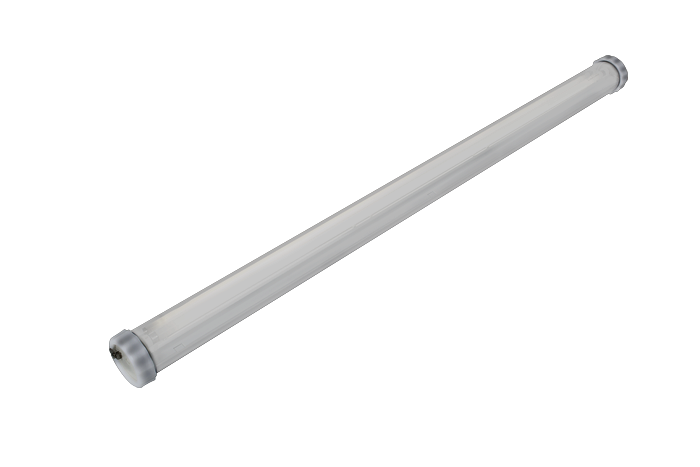

Glamox i25 is a slim and robust IP67/IP68 (down to 20 meters) LED luminaire for industry and outdoor applications. With it's slim constructions it is very placement friendly and well suited for applications with narrow mounting spaces.
i25 is manufactured with housing in extruded opal polycarbonate and with end caps in white polycarbonate. The luminaire is delivered with light sources and supplied with pre-assembled cable.
Technical specifications
Mounting
- Surface mounted luminaire for installation on the ceiling, wall or ground.
Suspension clamps have to be ordered separately.
- Surface mounted luminaire for installation on the ceiling, wall or ground.
Light Source
- LED 1100 - 4000 lumen out
Colour temperature 4000 K, CRI Ra 80, MacAdams 3
On request: 3000 K
- LED 1100 - 4000 lumen out
Connection
- Supplied with pre-assembled 50 cm 3x1.5 mm² rubber cable (H07RN-F).
The variant with through-wiring (TW) is supplied with one cable in each end.
Connection through external terminal block ordered separately.
- Supplied with pre-assembled 50 cm 3x1.5 mm² rubber cable (H07RN-F).
Body material and colour
- Housing in extruded opal polycarbonate. End caps in white polycarbonate. White painted zinc coated geartray.
Driver
- Fixed output (HF). DALI can be delivered on request.
Driver life time up to 120 000 h/10 % (max failure) at Ta 25°C.
- Fixed output (HF). DALI can be delivered on request.
Accessories
- Suspension clamps
IP68 terminal block
- Suspension clamps
