O13
Description
Glamox O13 is a compact and robust LED spotlight for many types of applications. Available in three different sizes. The spotlight is tiltable and can be mounted on wall, ceiling or ground. The luminaire is also ideal for aquatic applications as it can be submerged to a depth of 1 m.
O13 is manufactured with luminaire housing in acid-proof steel (AISI 316L). Supplied with tempered front glass and silicone gasket. Bracket and all screws are in stainless steel.
O13 is equipped with 3m pre-assembled rubber cable.
Please note that power supply for LED has to be ordered separately.
Technical specifications
Accessories
- Remote IP67 power supply.
Front visor in acid-proof steel.
Spike in acid-proof steel.
IP68 terminal blocks.
- Remote IP67 power supply.
Optic
- Wide beam (WB), medium beam (MB), narrow beam (NB) and elliptical beam (ELB).

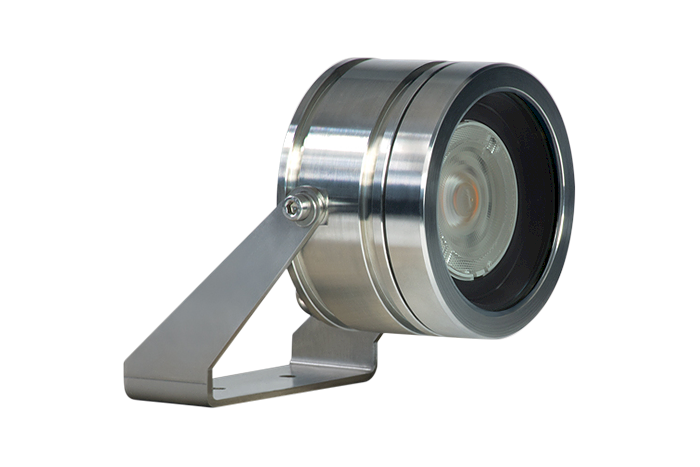

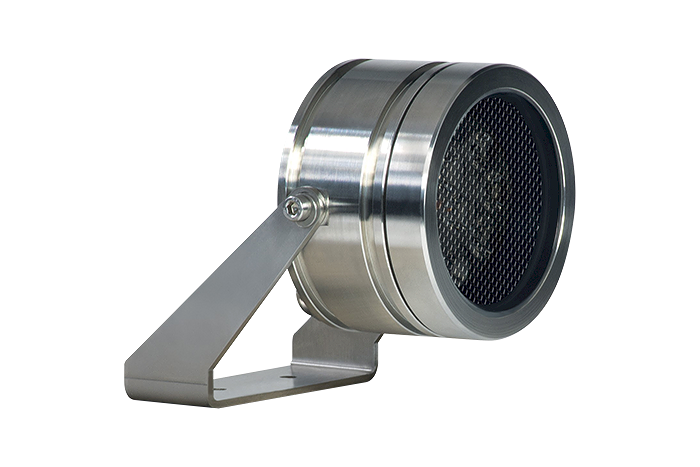

O13-90 can also be delivered with narrow beam and honeycomb louvre (NB+HC).
- Wide beam (WB), medium beam (MB), narrow beam (NB) and elliptical beam (ELB).
Electrical specification
- Remote IP67 power supply for fixed output (HF) or DALI dimmable (1-100%).
700mA for O13-25.
350mA for O13-55/90.
Remote power supply must be ordered separately.
- Remote IP67 power supply for fixed output (HF) or DALI dimmable (1-100%).
Connection
- Supplied with 3m pre-assembled rubber cable.
Light Source
- LED 200 - 1400 lumen out
Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
O13-55: RGB on request
O13-90: RGBW on request
- LED 200 - 1400 lumen out
Body material and colour
- Manufactured with luminaire housing in acid-proof steel (AISI 316L). Supplied with tempered front glass and silicone gaskets. Bracket and all screws are in acid-proof steel.
Mounting
- For installation directly on wall, ceiling or solid ground.
Can also be submerged in water to a depth of 1m.
- For installation directly on wall, ceiling or solid ground.
