O89-R
Description

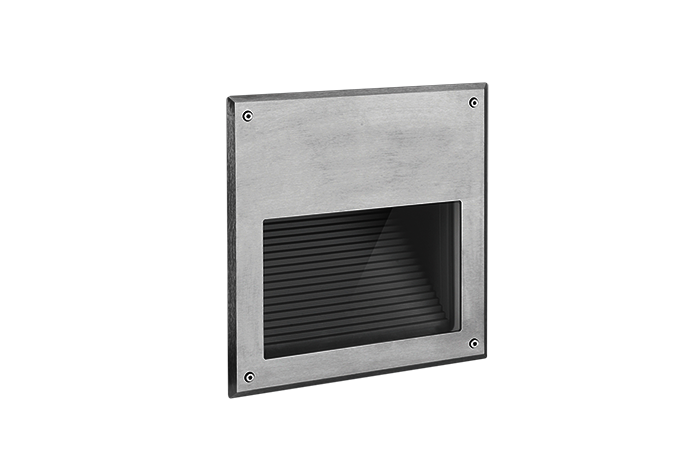

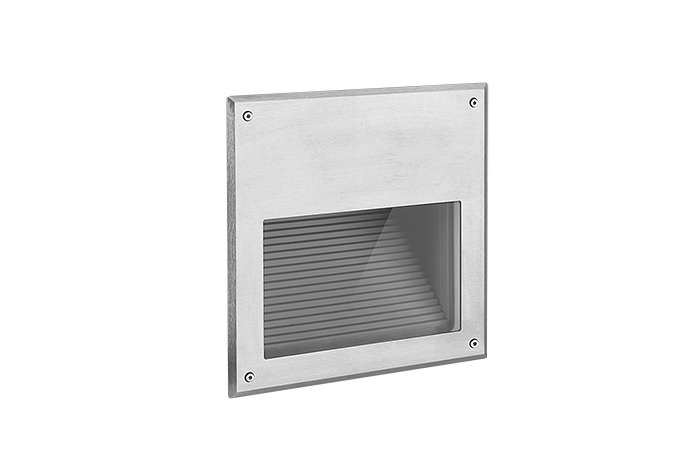

O89-R is a square shaped LED luminaire for recessed installation on walls. Well suited to illuminate outdoor spaces, passageways and access ramps.
O89-R luminaire housing is manufactured in shatterproof fibreglass reinforced polyamide and frame in brushed acid-proof steel. The diffuser is supplied in tempered glass. Silicone gasket. All screws are made of stainless steel. The mounting box is included.
Technical specifications
Light Source
- LED 250 lumen out
Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
- LED 250 lumen out
Driver
- Fixed output (HF).
Mounting
- Installation into supplied fibreglass reinforced ABS mounting box.
Body material and colour
- Luminaire housing is manufactured in shatterproof fibreglass reinforced polyamide and frame in brushed acid-proof steel (AISI 316L). The diffuser is supplied in tempered glass. Silicone gasket. All screws are made of stainless steel.
Connection
- Cable inlet is through membrane glands on backside of the luminaire.
3 pole 2.5 mm² screw terminal block.
Outdoor use requires suitable flexible cables assuring the water tightness of the membrane gland.
- Cable inlet is through membrane glands on backside of the luminaire.
