O87-R
Ground recessed circular LED luminaire
Description

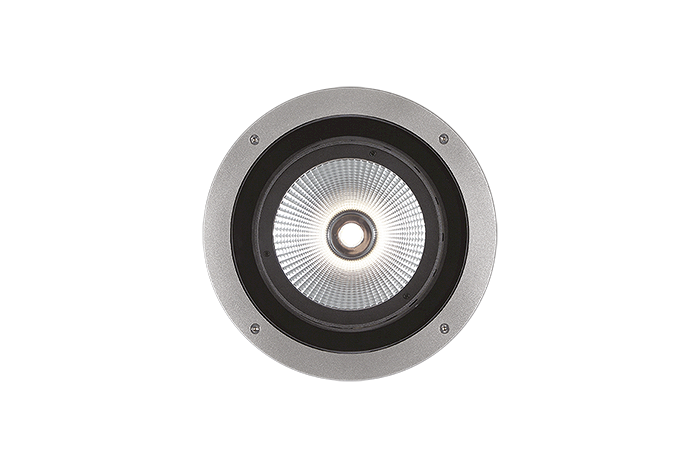

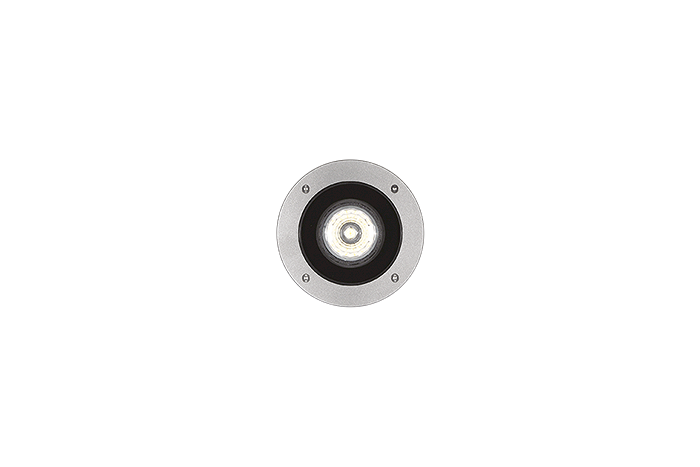

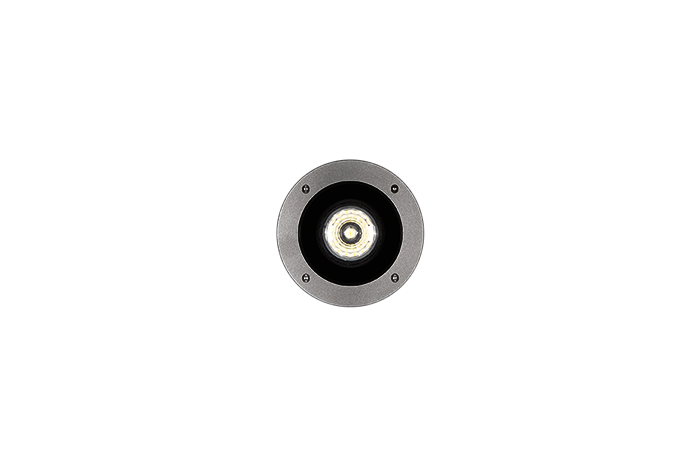

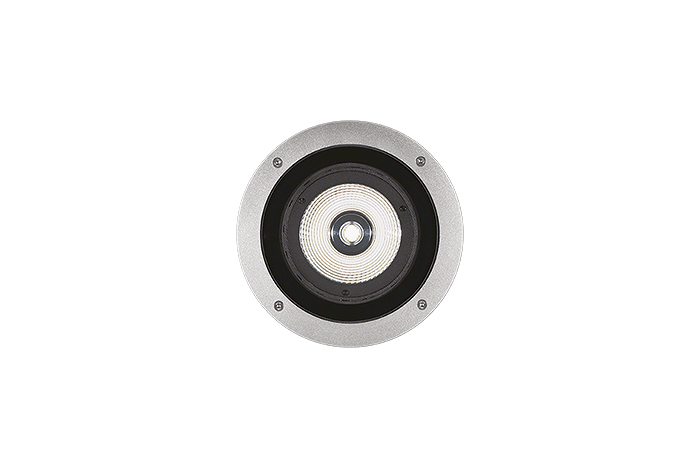

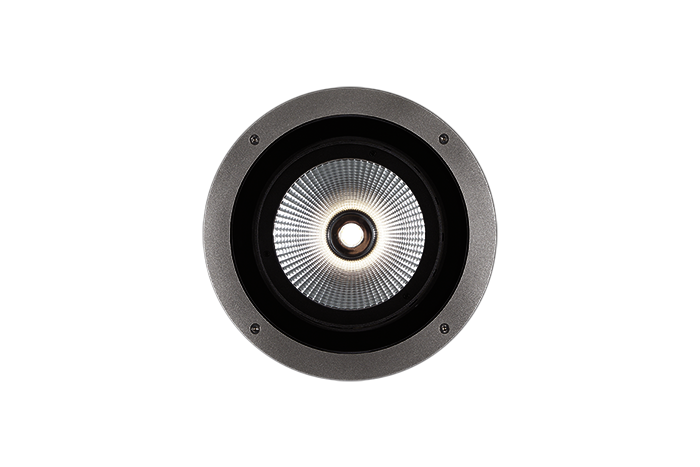

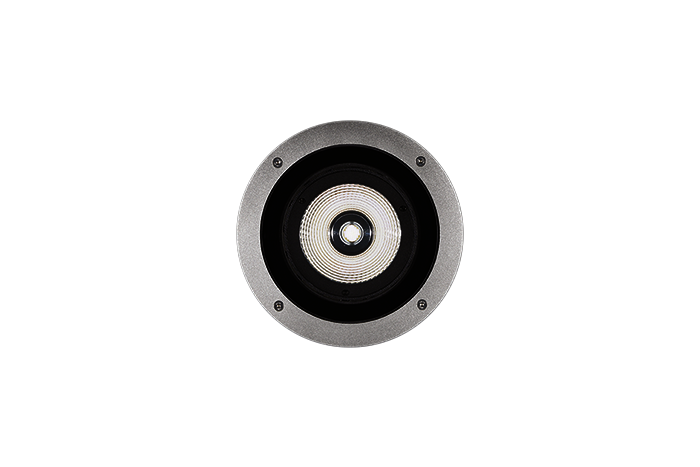

Glamox O87-R is a ground recessed circular LED luminaire with trim ring made of acid-proof steel (AISI 316L). Available in three different sizes.
The luminaire is manufactured with body in diecast aluminium. A first layer of epoxy powder and a second layer of polyester powder coated paint finish. The front glass is made of tempered glass. O87-R has silicone gasket and all screws are in stainless steel.

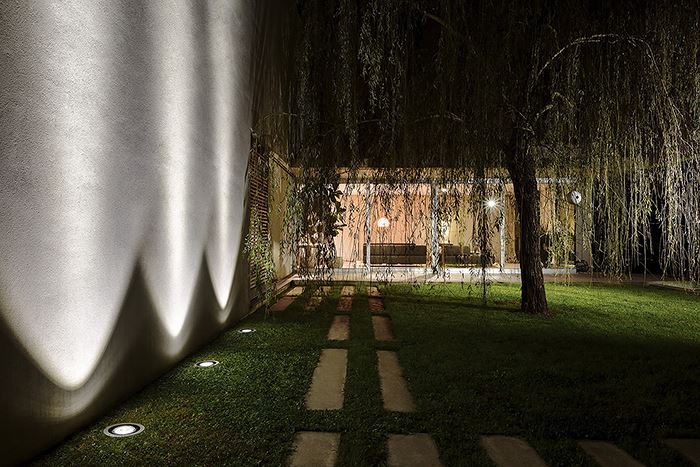

The light source can be tilted 15° and is well suited for façade illumination.
An in-ground mounting box made of thermoplastic material has to be ordered separately.
Technical specifications
Body material and colour
- Housing in diecast aluminium. A first layer of epoxy powder and a second layer of polyester powder coated paint finish. Front ring made of acid-proof steel (AISI 316L). Tempered front glass. Silicone gasket. Screws in stainless steel.
Driver
- Fixed output (HF).
Accessories
- In-ground mounting box.
IP68 terminal blocks.
- In-ground mounting box.
Light Source
- LED 500 - 3000 lumen out
Colour temperature 4000 K, CRI Ra 80, MacAdams 3
On request: 3000 K
- LED 500 - 3000 lumen out
Mounting
- Installation into a dedicated in-ground mounting box to be ordered separately.
Temperature on front glass
- <70°C at Ta 25°C
Maximum static load capacity
- 2 000 kg
Optic
- Medium beam (MB). Narrow beam (NB).
Connection
- The external ballast kit is supplied with pre-assembled 30 cm 2 x 0.75 mm² cable. Quick connector between ballast kit and luminaire.
