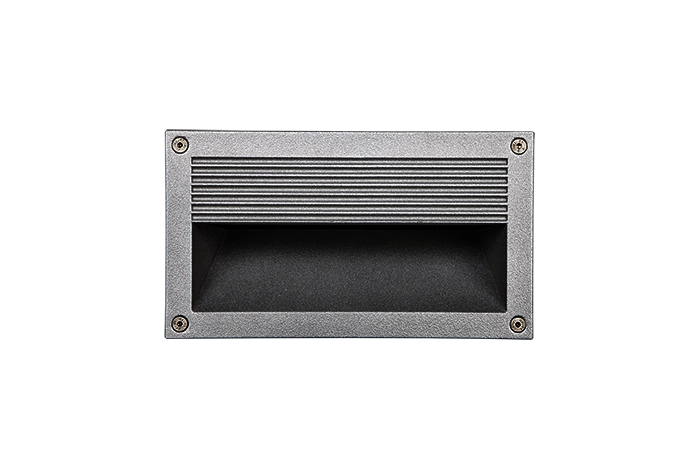

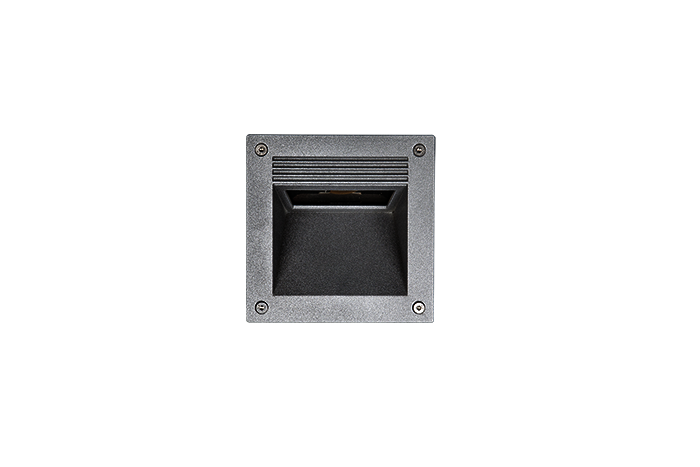

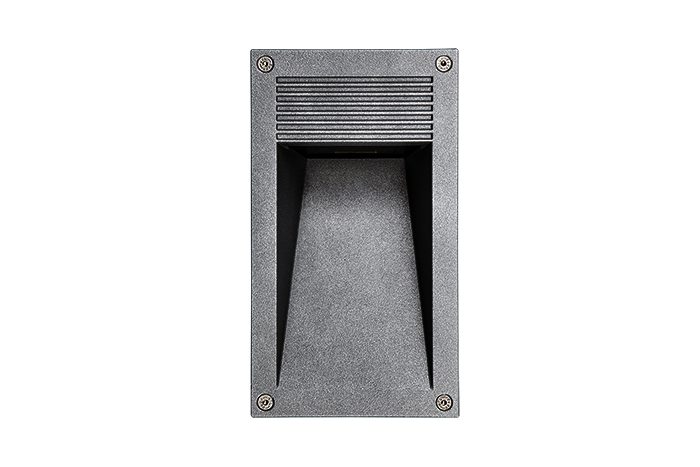

O79-R
For recessed installation on walls.
Description
O79-R is a LED luminaire for recessed installation on walls. Well suited for use in staircases where it provides increased safety on stairs. Available in different sizes.
O79-R is manufactured with luminaire housing in diecast aluminium. Polyester powder coated paint finish. Black, white or silver grey. The diffuser is supplied in frostedl tempered glass. The luminaire has silicone gasket and all screws are made of stainless steel. The mounting box is included and is made of technopolymer.
Technical specifications
Mounting
- Installation into supplied mounting box.
Connection
- Cable inlet through membrane glands on backside of the luminaire.
3 pole 2,5 mm² screw terminal block.
Outdoor use requires suitable flexible cables assuring the water tightness of the membrane gland.
- Cable inlet through membrane glands on backside of the luminaire.
Body material and colour
- Luminaire housing in diecast aluminium. Polyester powder coated paint finish. Black (RAL 9005), white (close to RAL 9001) or silver grey (RAL 9006). Front cover in frosted tempered glass. Silicone gasket. Screws made of stainless steel.
Driver
- Fixed output (HF).
Light Source
- LED 70 - 180 lumen out
Colour temperature 3200/4000 K, CRI Ra 80, MacAdams 3
- LED 70 - 180 lumen out
