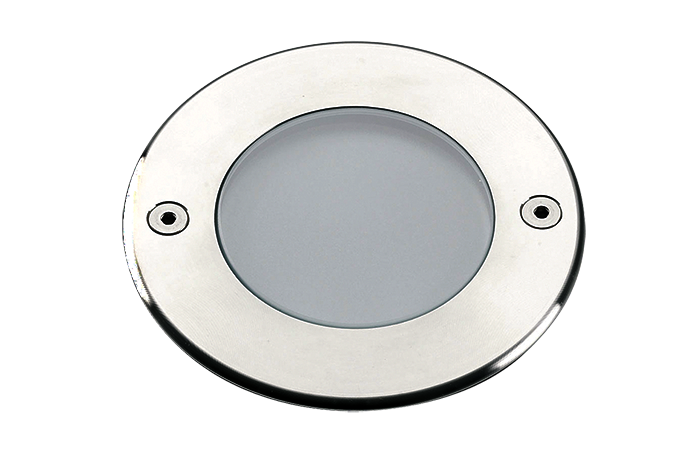

O72-R
Description
Glamox O72-R is a recessed LED luminaire for outdoor use with front ring in stainless steel. Well suited also for ground recessed mounting as the luminaire can manage a maximum load of 2000kg. O72-R is delivered complete with power supply.
The luminaire is manufactured with body in diecast aluminium. Polyester powder coated paint finish. Supplied with stainless steel front ring. The diffuser is made of tempered opal safety glass. The luminaire has silicone gasket and all screws are in stainless steel.
The glass has a mechanical strength of 6.8 joule. Temperature on the diffuser is 38°C.
An in-ground mounting box made of techno polymer is included.
The luminaire is manufactured with body in diecast aluminium. Polyester powder coated paint finish. Supplied with stainless steel front ring. The diffuser is made of tempered opal safety glass. The luminaire has silicone gasket and all screws are in stainless steel.
The glass has a mechanical strength of 6.8 joule. Temperature on the diffuser is 38°C.
An in-ground mounting box made of techno polymer is included.
Technical specifications
Body material and colour
- Body diecast aluminium. Polyester powder coated paint finish.
Stainless steel front ring. Diffuser made of tempered opal safety glass. Silicone gasket. Stainless steel screws.
Maximum load is 2000 kg. Glass mechanical strenth is 6,8 joule. Temperature on the diffuser is 38°C.
- Body diecast aluminium. Polyester powder coated paint finish.
Stainless steel front ring. Diffuser made of tempered opal safety glass. Silicone gasket. Stainless steel screws.
Connection
- 1 x PG9 cable gland (cable Ø4 -8 mm). 3 pole 1,5 mm² screw terminal block.
Outdoor use requires suitable flexible cables assuring the water tightness of the cable gland.
- 1 x PG9 cable gland (cable Ø4 -8 mm). 3 pole 1,5 mm² screw terminal block.
Light Source
- LED 15 lumen out
Colour temperature 3200 K, CRI Ra 80, MacAdams 3
- LED 15 lumen out
Mounting
- Installation into included mounting box.
