O62-W3
Description

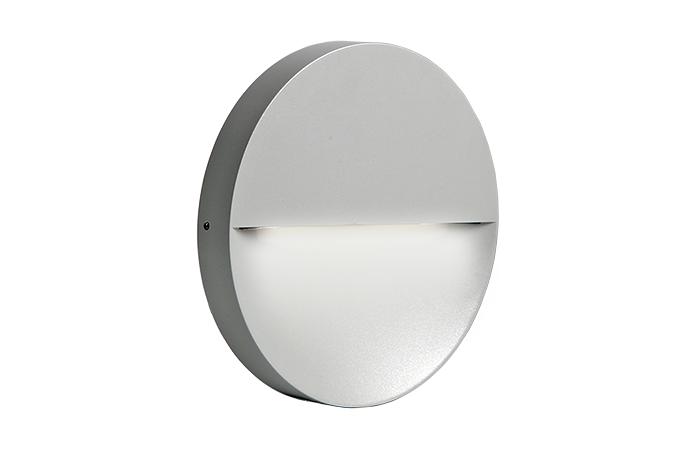

Glamox O62-W3 is a slim and circular wall LED luminaire. The body is made of die-cast aluminium. A first layer of epoxy powder and a second layer of polyester powder coated paint finish. The light source is embedded in polycarbonate. Supplied with pre-assembled cable and mounting bracket in stainless steel.
O62-W3 can be delivered with integrated power supply for fixed output, alternatively 24Vdc remote power supply for fixed output or dimming. Remote power supply must be ordered separately.
Technical specifications
Body material and colour
- The body is made of die-cast aluminium. A first layer of epoxy powder and a second layer of polyester powder coated paint finish. Black or aluminium grey. The light source is embedded in polycarbonate. Mounting bracket and screws in stainless steel.
Connection
- Supplied with pre-assembled 20 cm 2x0,75 mm² cable.
Light Source
- LED 410 - 430 lumen out
Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
- LED 410 - 430 lumen out
Mounting
- Installation directly on the wall with mounting bracket.
Electrical specification
- Integrated power supply for fixed output,alternatively24Vdcremote power supplyfor fixed output or dimming (1-10V/SwitchDim).
Remote power supply must be orderedseparately.
- Integrated power supply for fixed output,alternatively24Vdcremote power supplyfor fixed output or dimming (1-10V/SwitchDim).
Optic
- Diffuser (OP).
Accessories
- 24Vdcremote power supply.
IP68 terminal blocks.
- 24Vdcremote power supply.
