Description

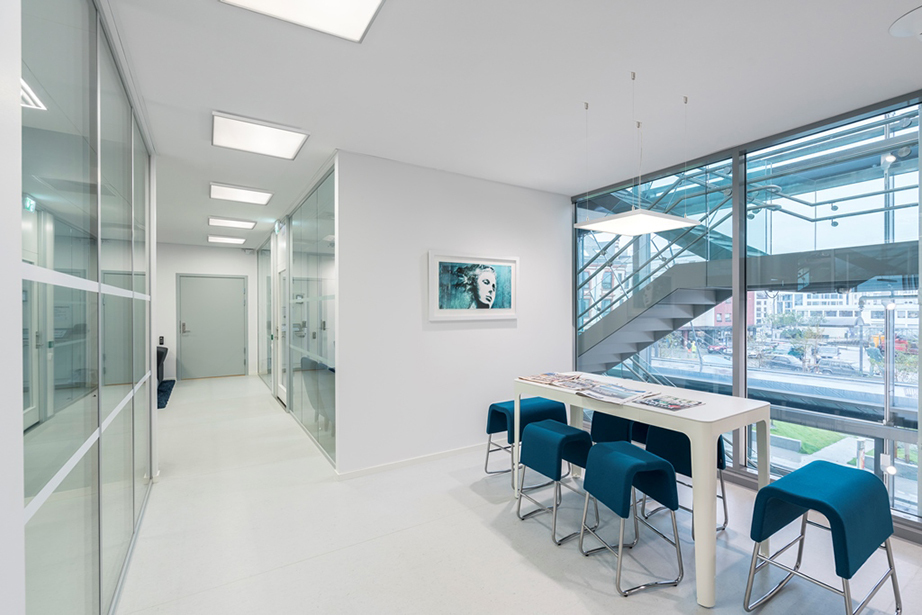

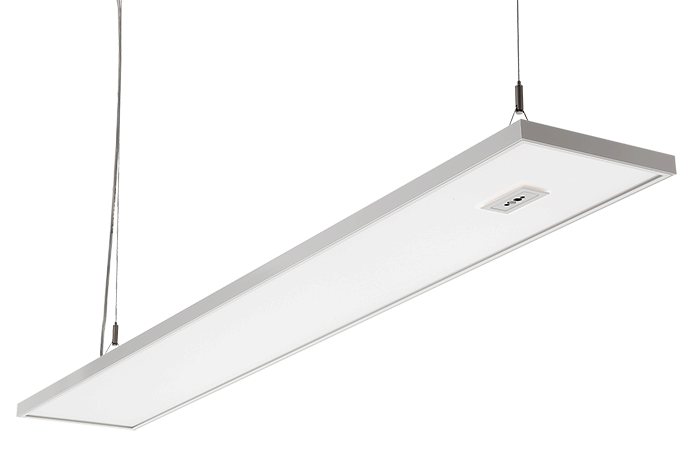

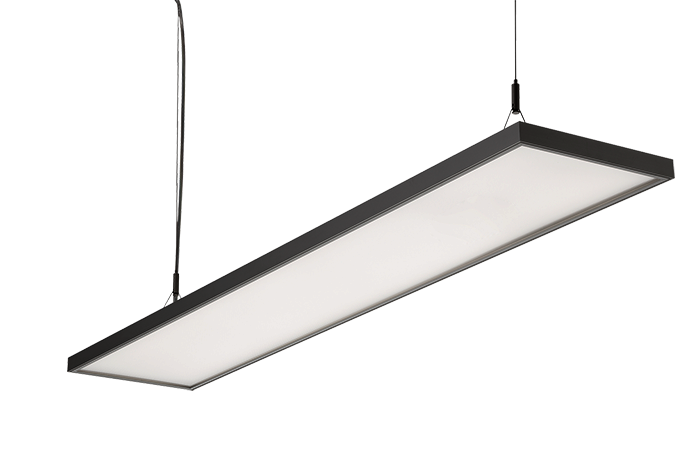

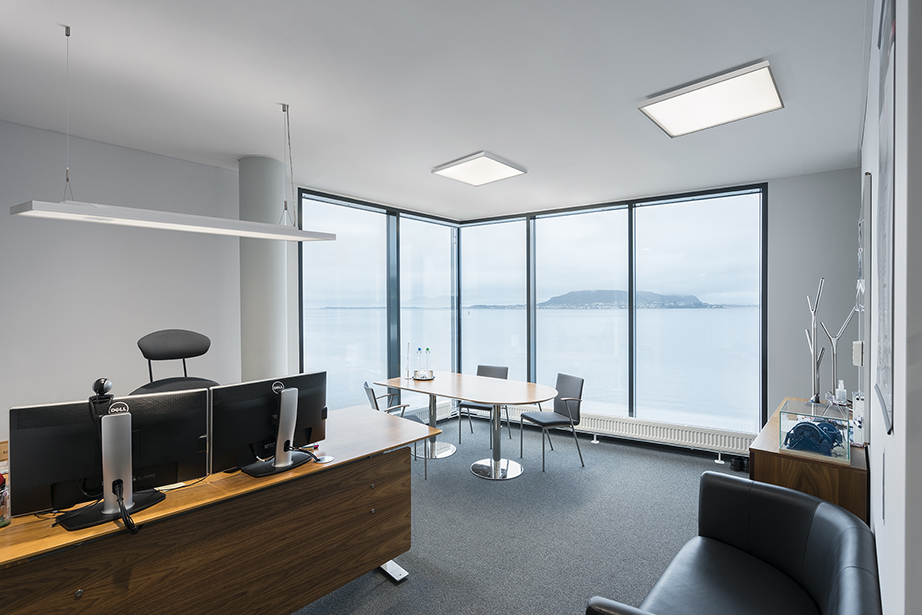

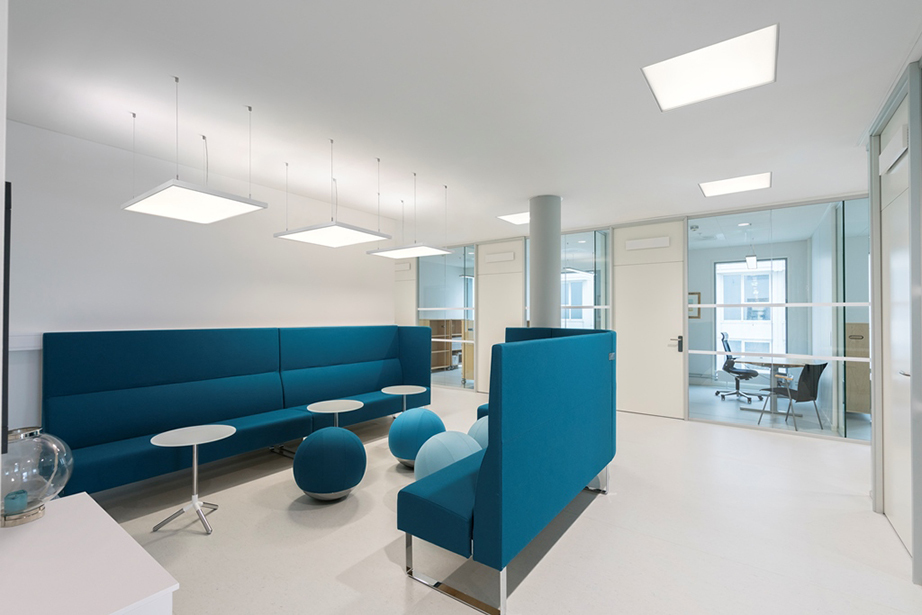

C95-P is a family of high-end interior luminaires. The family is characterised by a clean, minimalistic design and fully illuminated surfaces. The edge lit technology allows for a slim profile that reduces the influence on the ceiling height to a minimum. With the C95-P family you also get excellent light output and visual performance.   The diversity and flexibility of the C95-P product family makes it suitable for a wide range of applications. With it's slim and modern design, it’s ideal for offices with a high finish. The family is also well suited for schools and health facilities. Slim and minimalistic C95-P is a slim and refined pendant luminaire that will adorn any modern office, education or health facility. With separate up and downlight the luminaire can distribute the light any way you desire. The self-balancing suspension ensures that the luminaire is always kept level. Perfect light The fully lit surface of the luminaries provides excellent lighting to office spaces and other working stations. Since a large portion of the light provided by the C95-P is up light, the luminaire prevents glare down to the required levels. The uplight also contributes pleasantly to the general lighting in the room.

Technical specifications

  • Body material and colour

    1. Body frame in anodised aluminium with steel plate on top. White painted frame is available on request.
  • Driver

    1. HF or DALI. Driver lifetime up to 100,000 h/10 % (max failure) at Ta 25°C.
  • Connection

    1. Supplied with a pre-mounted 3 or 5 wire cable or cable and plug.
  • Emergency system

    1. Standard (S), Self test (ST) or DALI. 1h or 3h.
  • Light Source

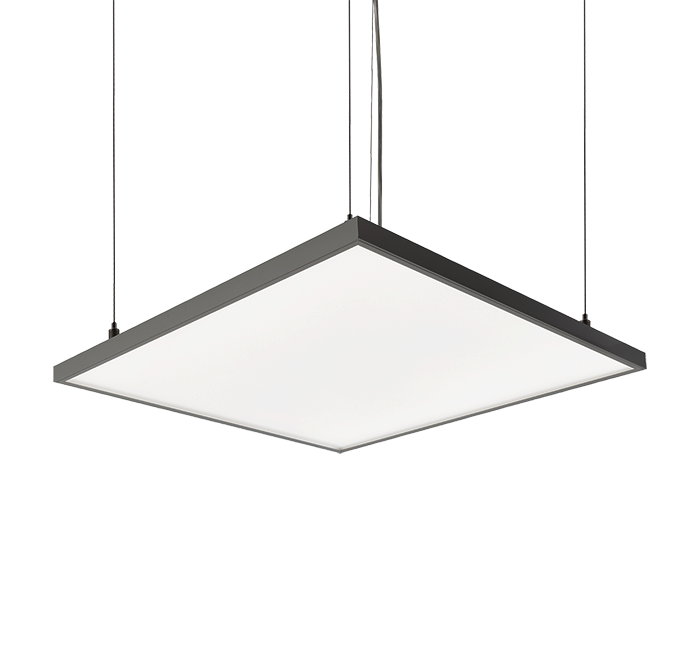

    1. LED 3000 - 8600 lumen out Colour temperature 3000/4000 K, CRI Ra 80 and 90, MacAdams 3 Tuneable white (CCT) Light distribution (% up/down): 20/80 or 40/60 depending on version. Only 5/95 on C95-P600x600
  • Optic

    1. Microprismatic (MP). Opalic (OP) available on 600x600 version.
  • Sensors

    1. This product is available with a PIR sensor type SPR-SEN with relay based ON/OFF switch or a PIR sensor wired for Corridor function type SPC-SEN. It is also available with a combined PIR and Constant Light sensor with integrated DALI Power supply type MPP-SEN or a slave PIR version type MPS-SEN. For more information see user manual for the respective sensor under “Download”.
  • Mounting

    1. Unique suspension system with simple, quick adjustment wire at both ends. Suspension is always supplied and pre-installed with the luminaire (PRE). Ceiling cup must be ordered separately.
