Description

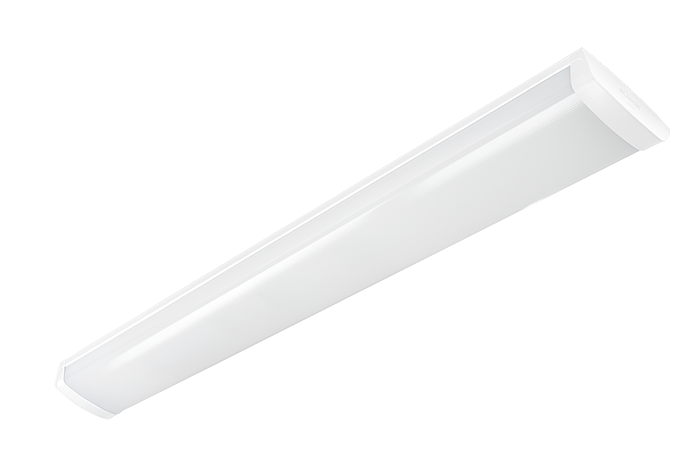

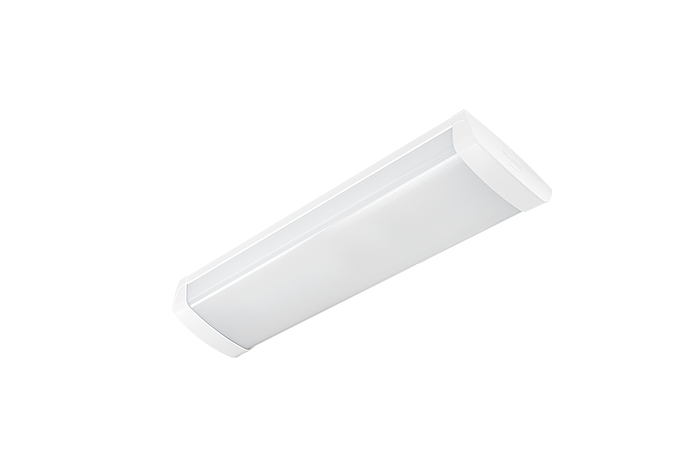

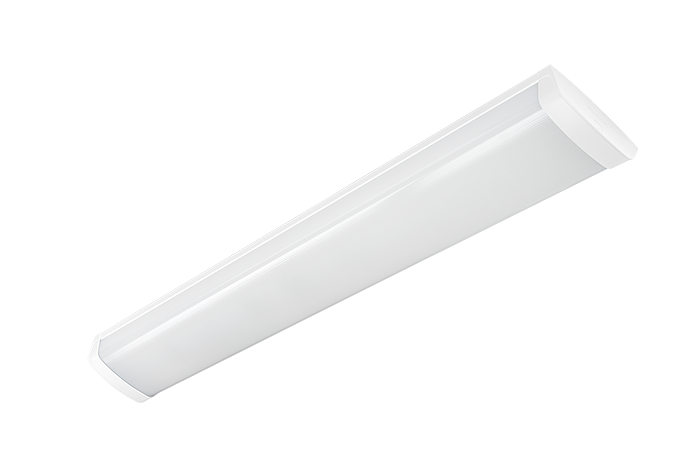

Glamox i60 is a flexible and streamlined splash proof LED luminaire for interiors and industry. With it's slim design and efficient functionality, i60 is a practical solution for many different applications. It is easily fitted onto ceilings or walls, wiring trays, or horizontal suspension wires. With the optional vibration damping suspension it is also well suited for evacuation shelters or areas of high vibration. Can also be pendant mounted with wire suspension kit. i60 is equally elegant in an office interior or a scientific area, in schools, car parks or industrial buildings. The luminaire housing is made of galvanized pre-painted steel with a second layer of white epoxy/polyester powder coated finish to achieve extra protection against corrosion. End caps in injection molded ASA with integrated locking device to prevent the luminaire being opened without any tools. The diffuser is made of extruded fire rated opal PC. i60 can be supplied with DALI dimming and sensors. Installation solutions with sensors and dimming are useful energy saving options. This will also increase the lifetime of components. Variants with 1 or 3 hour emergency lighting is a possible option except the for shortest version.

Technical specifications

  • Driver

    1. Fixed output (HF) and DALI dimmable (1-100%).
      Driver lifetime up to 120,000 h/10 % (max failure) at Ta 25°C.
  • Body material and colour

    1. The luminaire housing is made of galvanized pre-painted steel with a second layer of white epoxy/polyester powder coated finish to achieve extra protection against corrosion. End caps in injection moulded ASA.The diffuser is made of extruded opal fire rated polycarbonate.
  • Accessories

    1. Evacuation shelter brackets
      Wall brackets
      Suspension kits
      Cables
  • Integrated sensors

    1. This product is available with a PIR sensor with relay based ON/OFF switch type SPR-SEN, a PIR sensor wired for corridor function type SPC-SEN or a microwave sensor with relay based ON/OFF switch type SMR-SEN.

      For more information see user manual for the respective sensor under “Download”.

      (SMB-SEN is not recommended for wall mounting).
  • Emergency system

    1. 1 or 3 hour emergency lighting (Standard, SelfTest or DALI addressable) except for the shortest version.
  • Mounting

    1. Ceiling or wall, on luminaire tracks or on horizontal wire. Can be used in evacuation shelters using a special evacuation shelter bracket.
      Can also be pendant mounted but then wire suspension kit and cable must be ordered separately.
  • Light Source

    1. LED 2000 - 6000 lumen out
      Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
      Tuneable white (CCT)
      On request: CRI Ra 90
  • Connection

    1. 1 membrane gland in each end cap and 2 x membrane glands in top of luminaire housing.
      5 pole 2.5 mm² push-in terminal block.
      5 x 2.5 mm² through wiring on request.
  • Certificate

    1. Possibility of delivering an Environmental product declaration (EPD)
