D70-S155 G2
Description

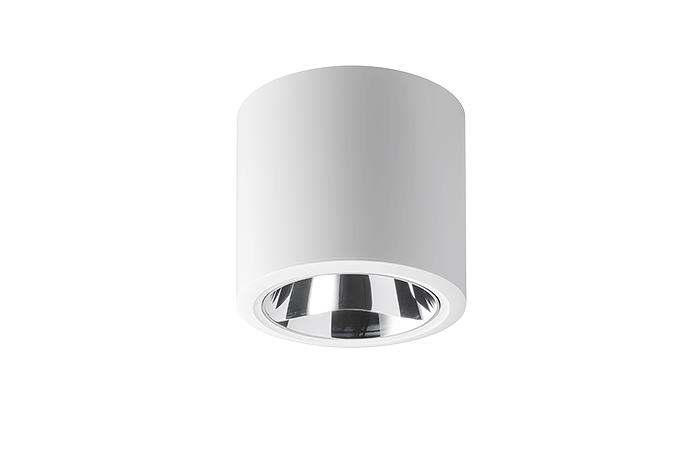

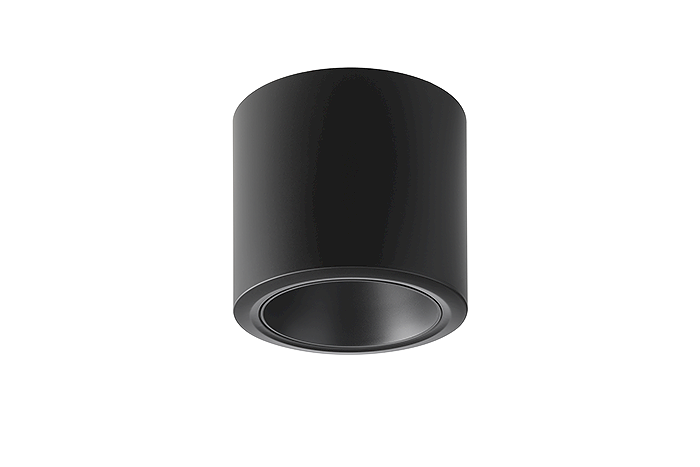

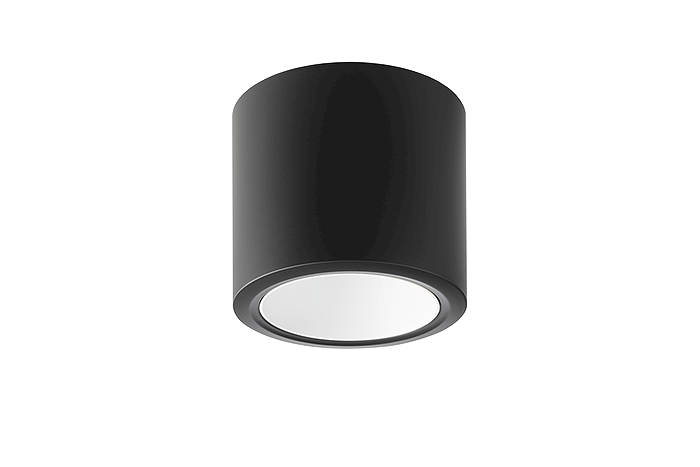

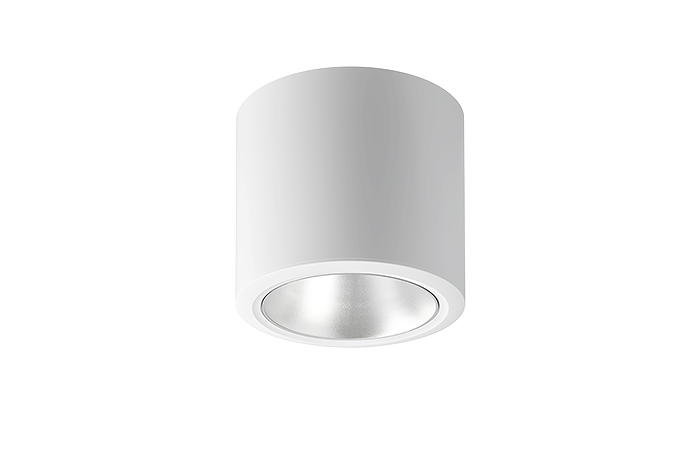

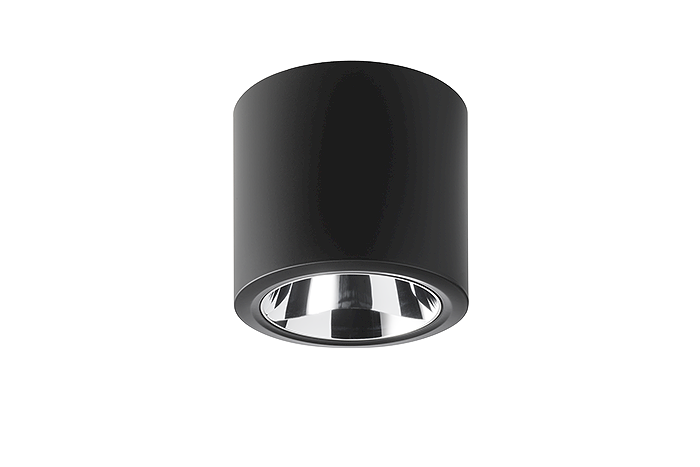

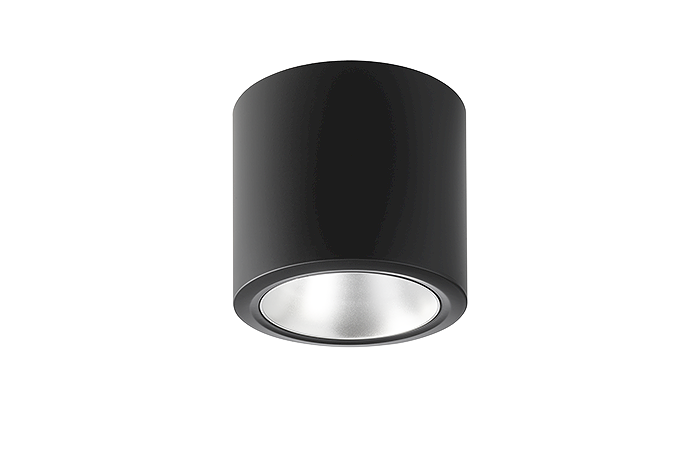

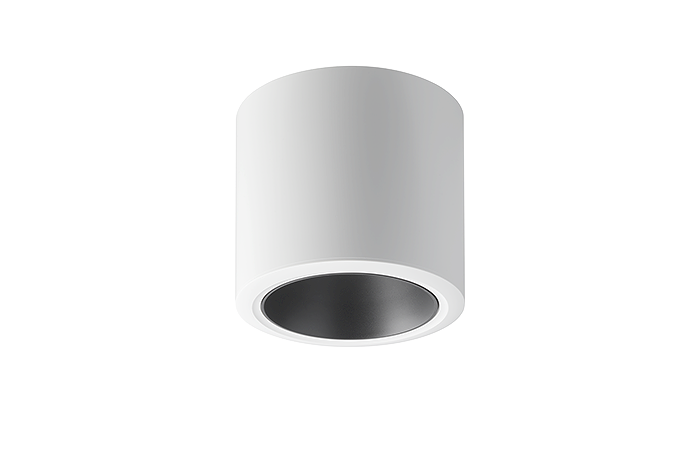

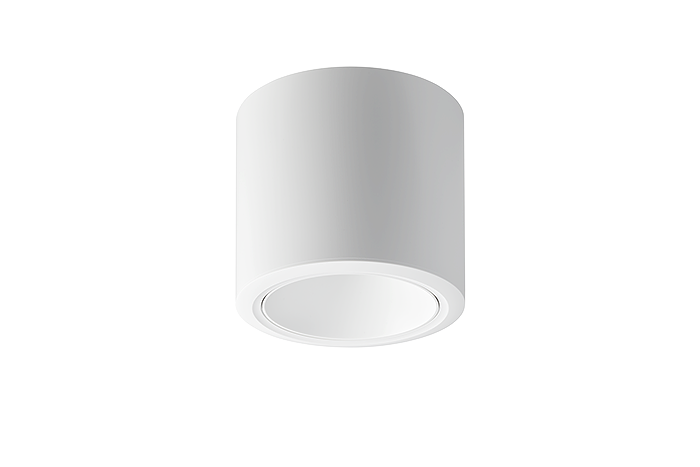

D70-S155 G2 is a modern, surface-mounted downlight that provides the perfect accent or general lighting for various applications. This lightweight product is easy to mount and can also be equipped with a pendant accessory. It comes with four different reflector options and two body colour variants to suit any type of interior, including offices, healthcare facilities, schools, retail, and other applications. The D70-S155 G2 is part of the bigger D70 G2 family, which creates consistency throughout the whole project.
Technical specifications
Light Source
LED 1100 - 2200 lumen out Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3.
Optics

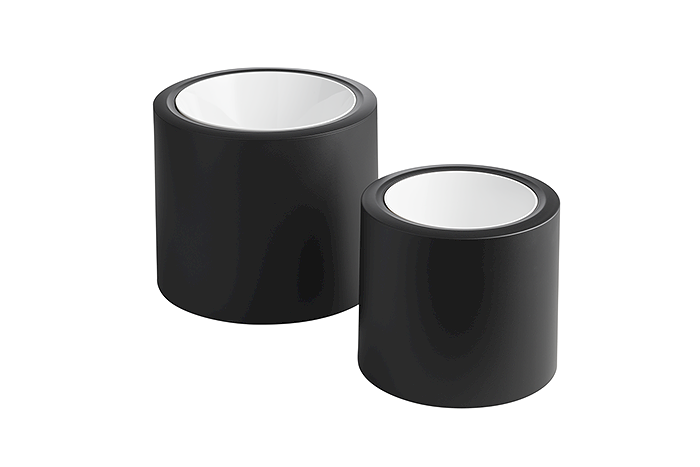

Clear optics in front of the LED light source. A treated or painted reflector in Silver Matte (SM), Silver (SI), White Matte (WM) and Black Matte (BM).
Body material and colour
Black powder-coated aluminium body. Plastic reflector in different treatments and colours (see optics). Plastic trim in white or black.
Driver
HF (on/off) and DALI (dimmable) drivers with a lifetime up to 100,000 h (10% max failure) at Ta 25°C.
IP class
IP20
Connection
Cable entry on top or a surface-mounted cable from the sides. 3- or 5 pole push-in terminal block.
Mounting

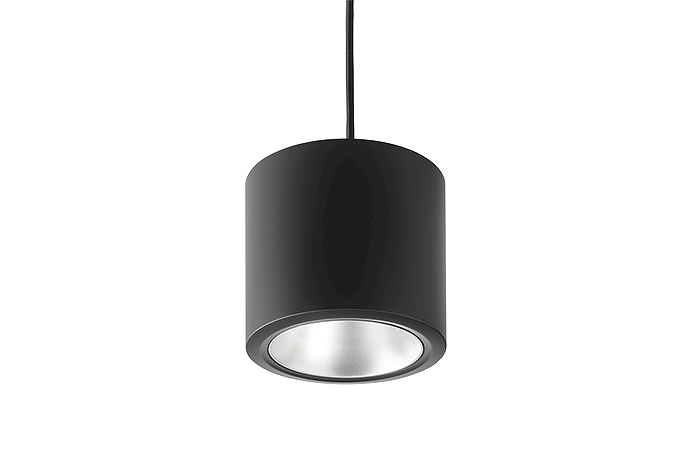

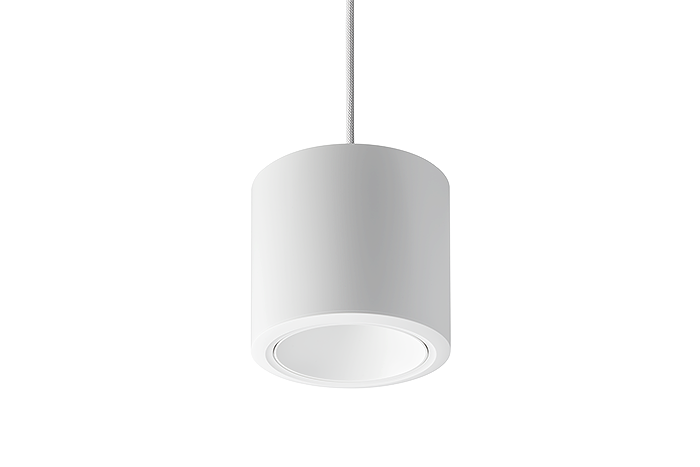

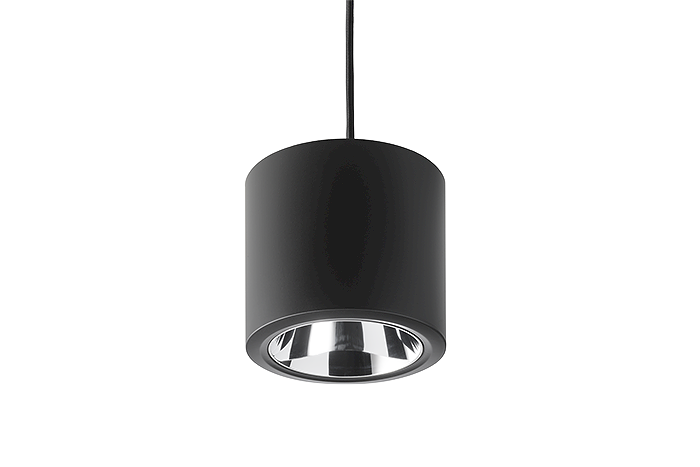

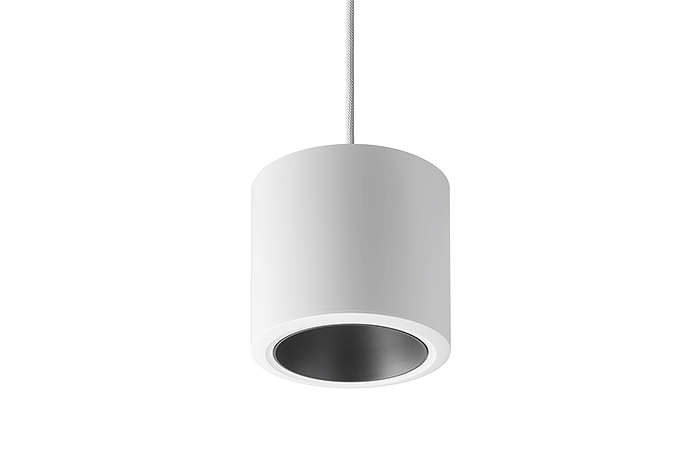

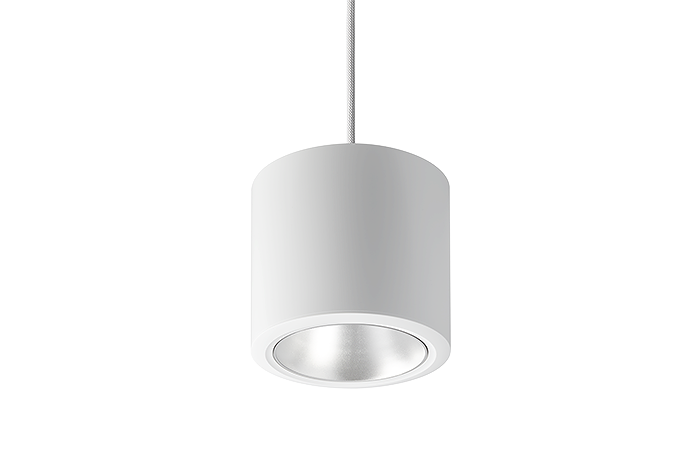

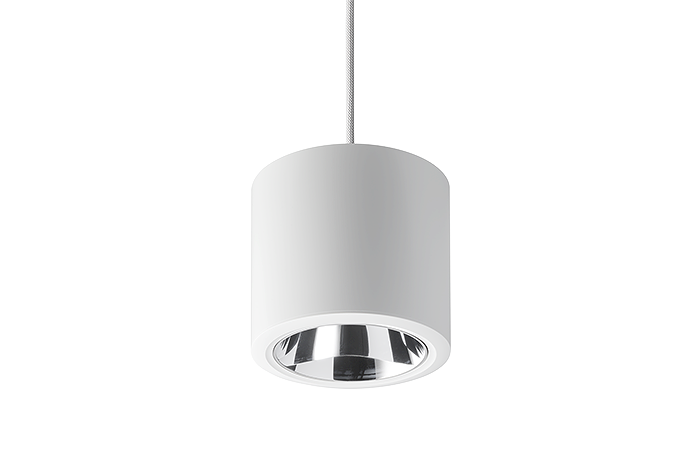

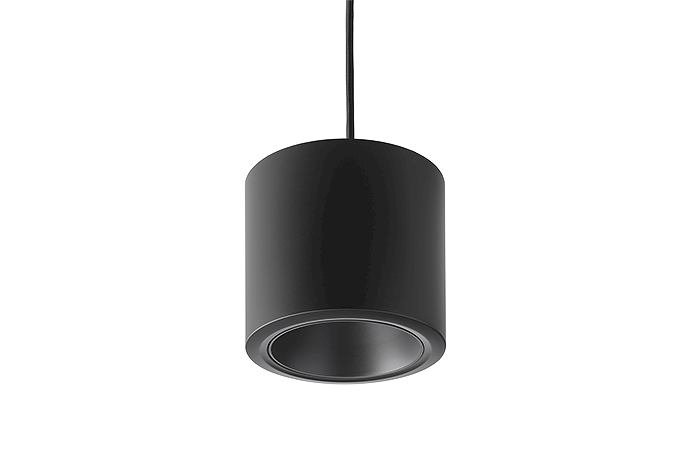

Surface-mounted in ceilings as standard. Pendant mounting possible with an accessory.
Special features
This luminaire can be modified. Please ask your local sales responsible for special requests. Typical special features can include: various lumen values, other CRI(Ra) values, colours on trims, reflector types, other connection types, etc.
