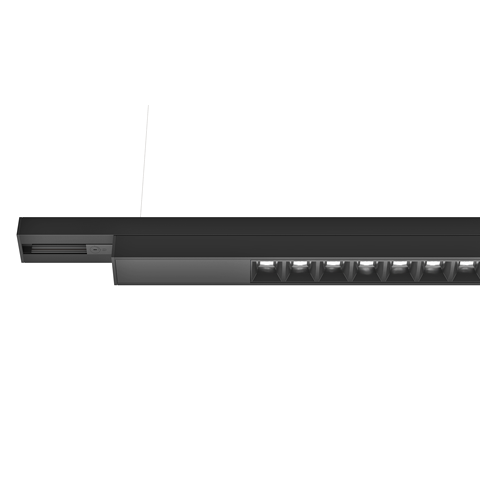

SLIMLUX Adaptive

Reducing Cat A and Cat B waste

SLIMLUX Adaptive has been designed to cut the material waste typically associated with Cat A and CAT B installations once a new tenant has agreed to take space. A modular, connective, and adaptive lighting system, that follows the principals of lighting circular economy. Suitable for office, light industry and retail environments.

Freedom to shape your space

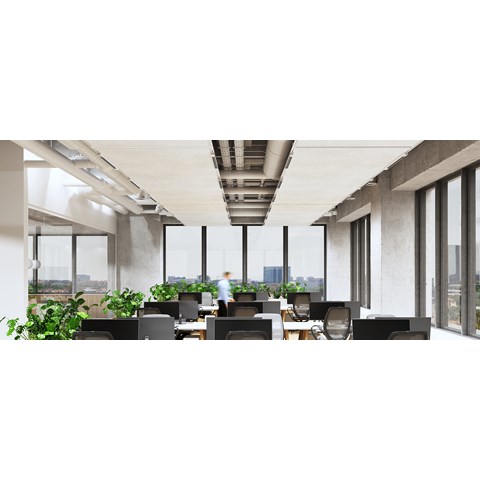

Load Bearing Functionality

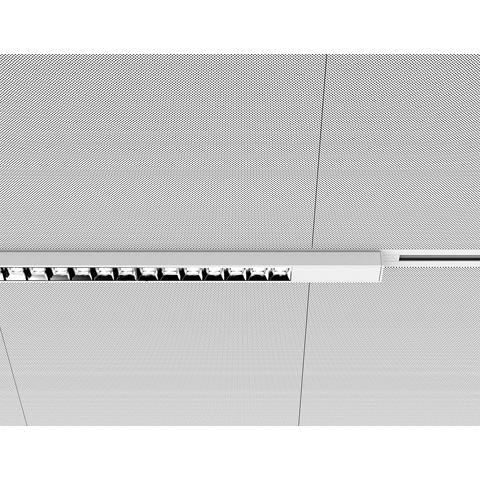

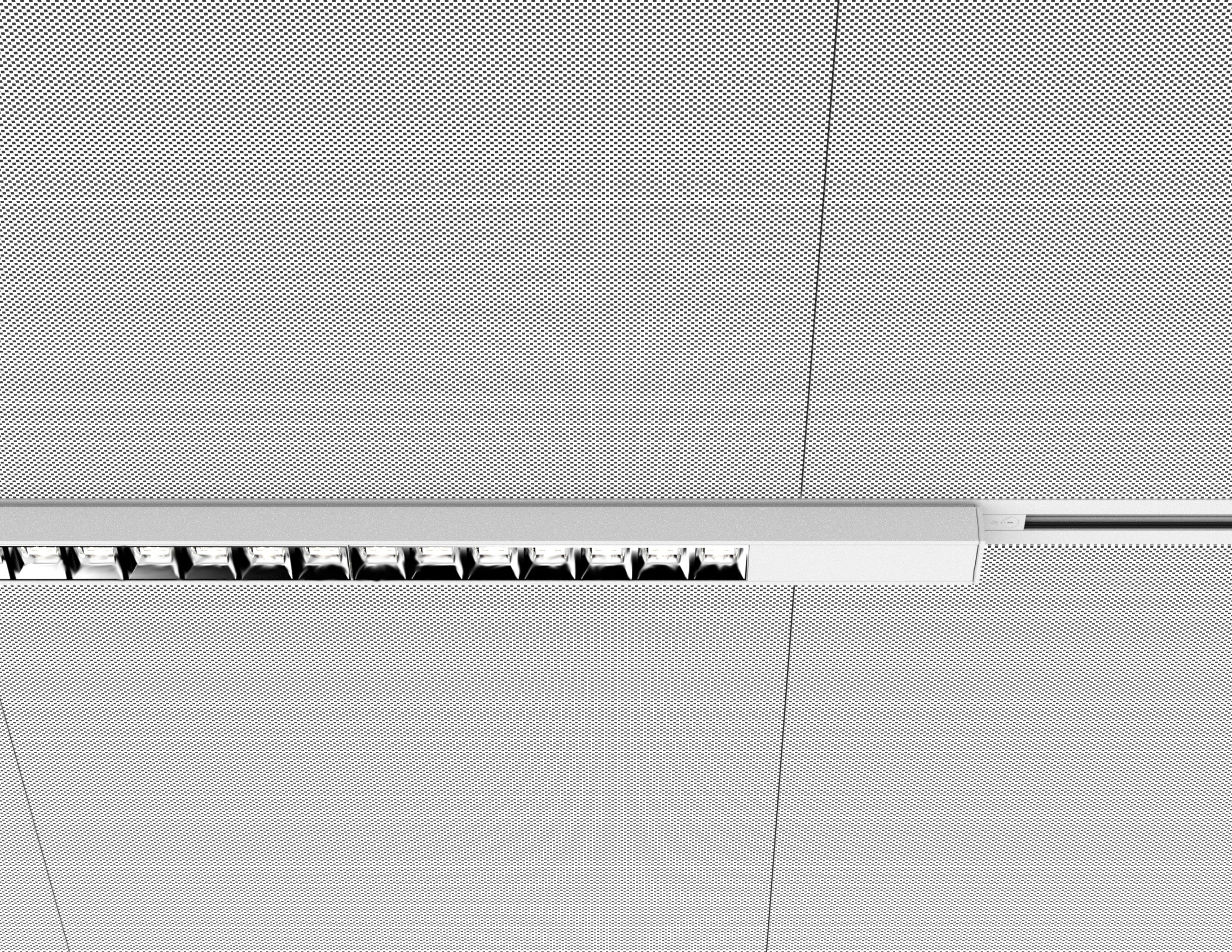

SLIMLUX Adaptive is engineered to support load-bearing functions, making it ideal for suspending acoustic metal tiles or rafts directly from the Adaptive power profile.

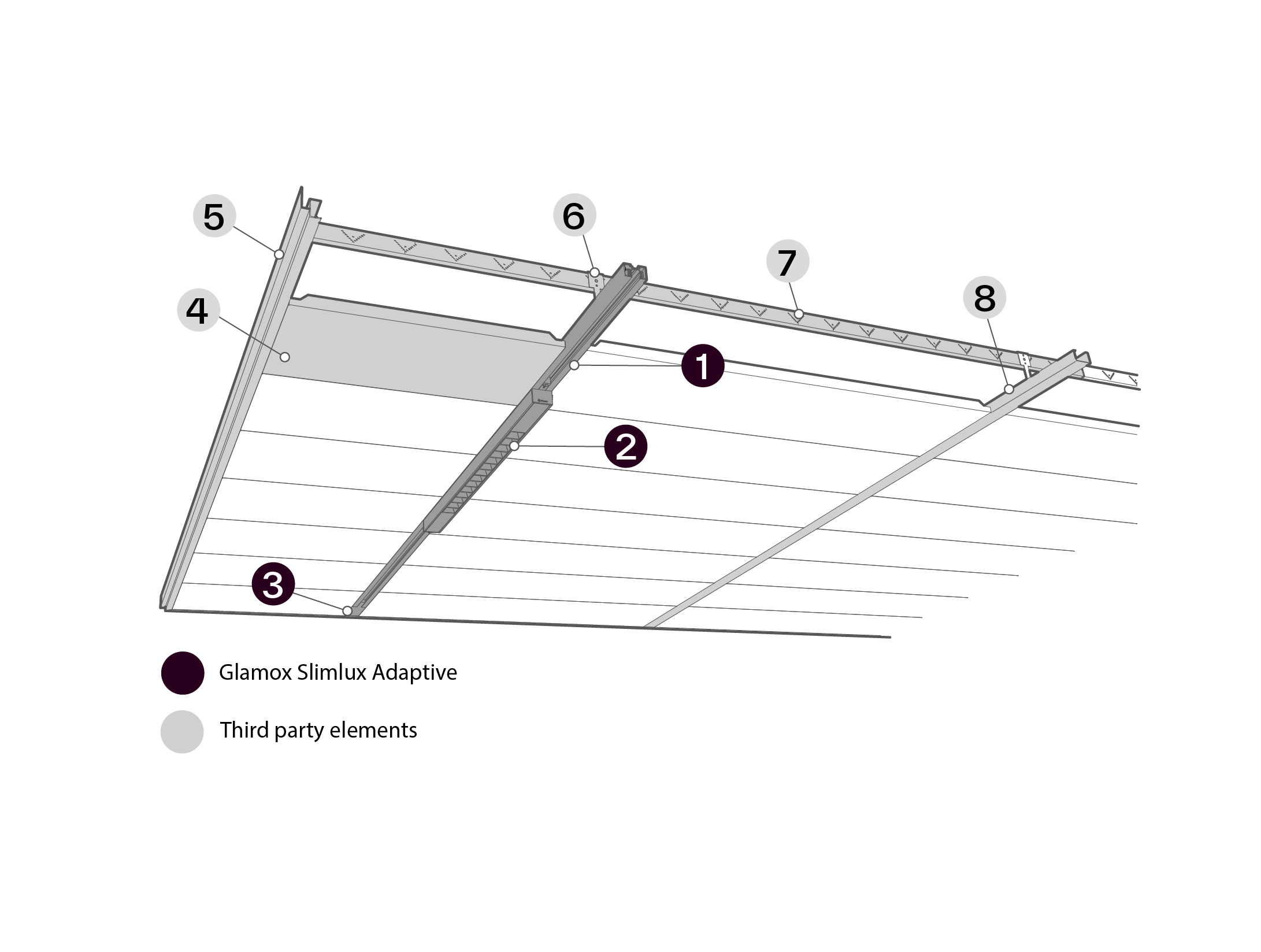

1: SLIMLUX Adaptive Power profile
2: SLIMLUX Adaptive Linear luminare
3: End power feed
4: Lay in ceiling tile
5: Ceiling system perimeter trim
6: Channel bracket
7: EMAC primary channel
8: Ceiling system C profile

Standalone Functionality

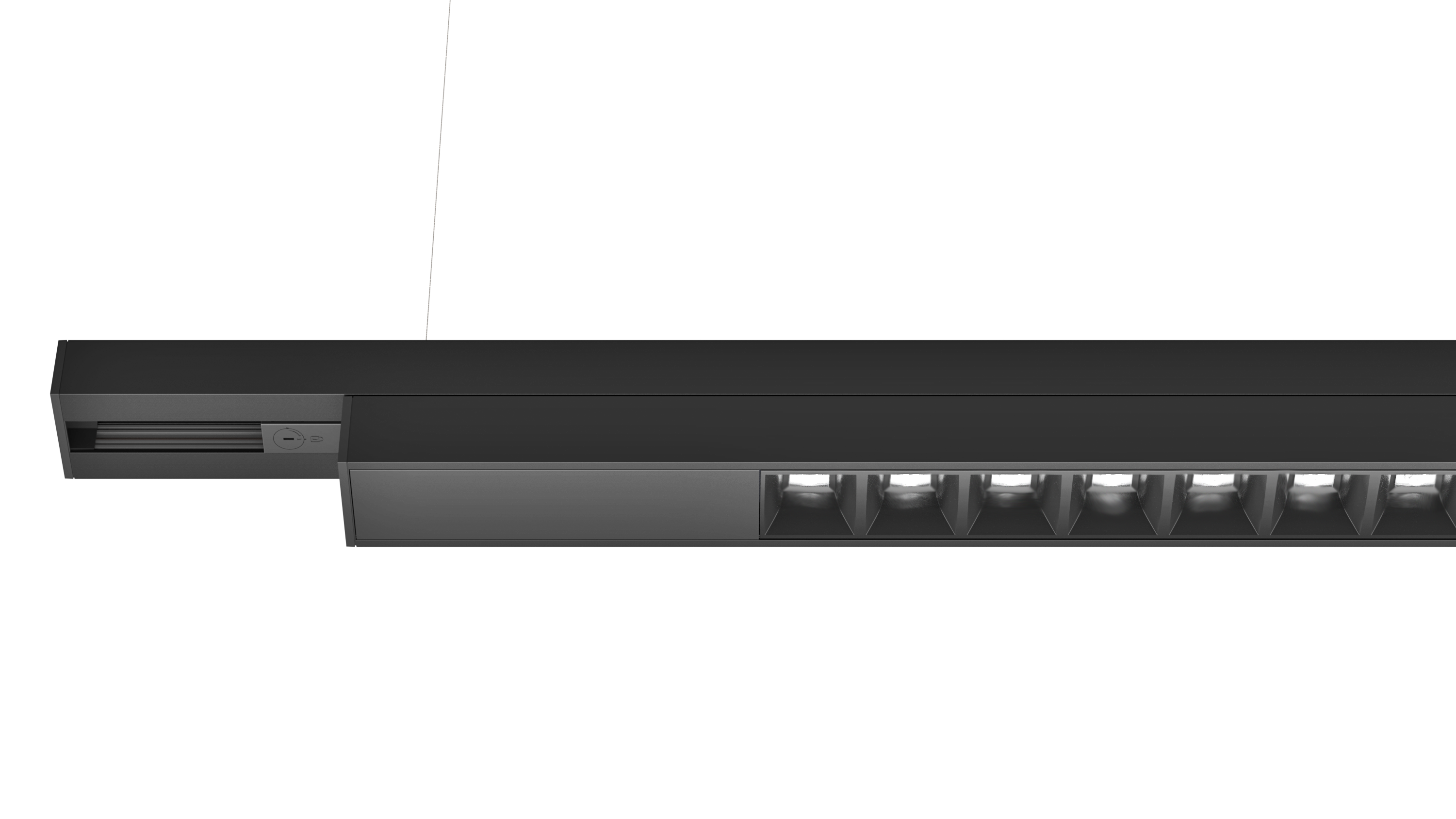

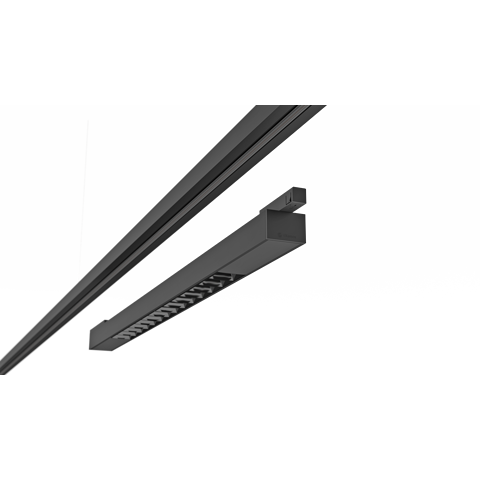

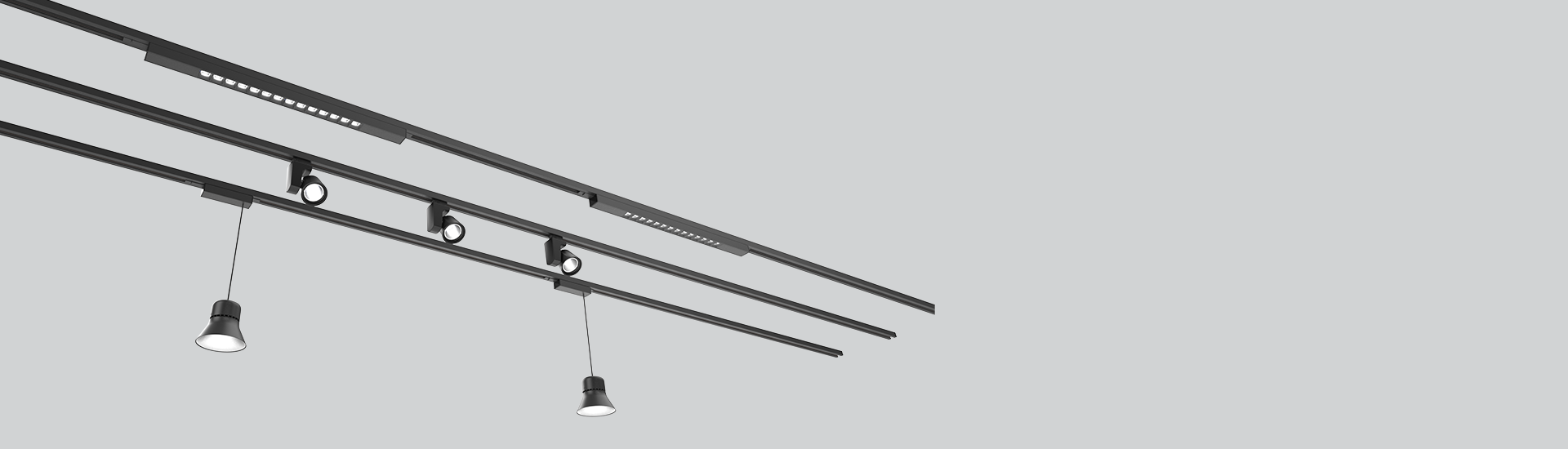

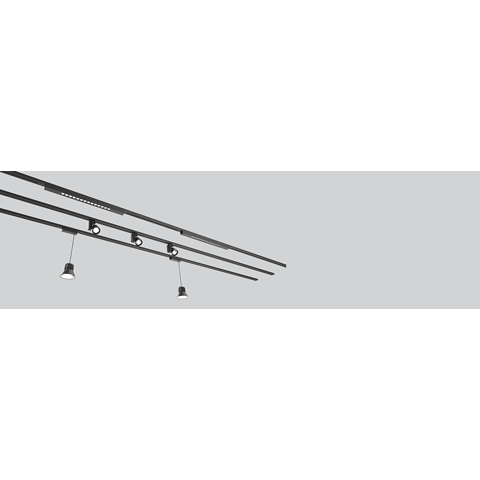

SLIMLUX Adaptive can further enhance the functionality of a space by acting as a standalone, suspended system where drop ceilings or raft systems are not required.

This allows for continuity in an installation and a greater breadth to the opportunities in lighting a space that is afforded by SLIMLUX Adaptive.

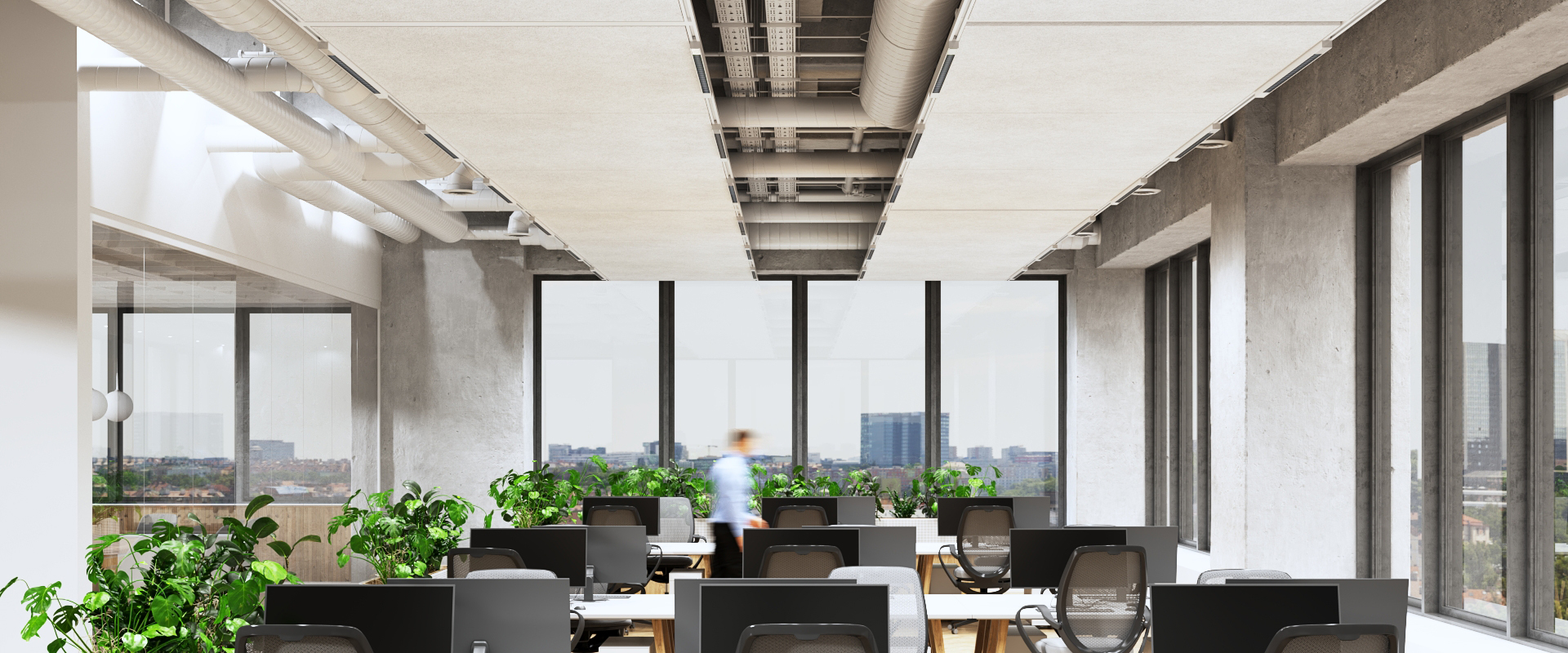

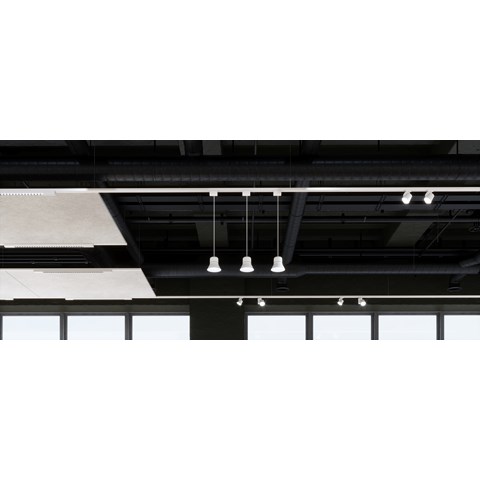

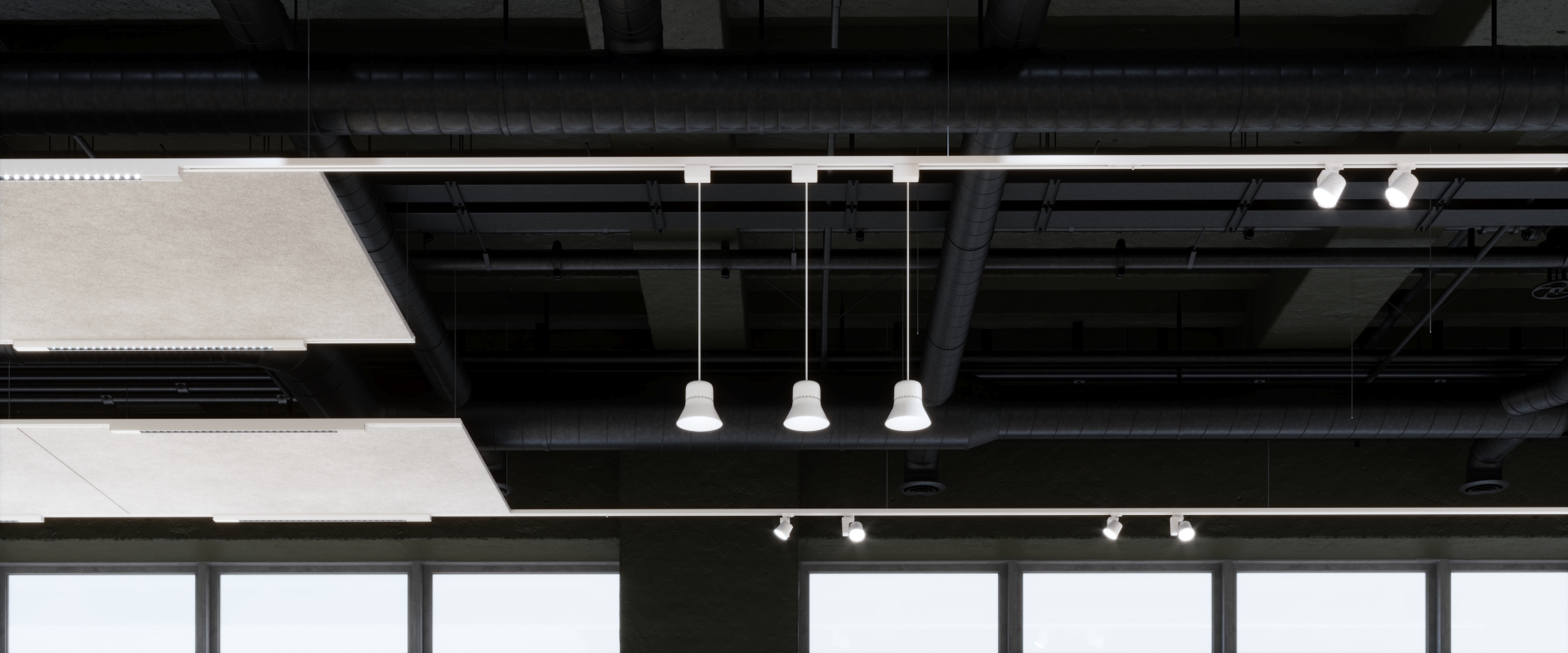

Seamless transition from suspending rafts to standalone mounting

Simple installation & ultimate flexibility

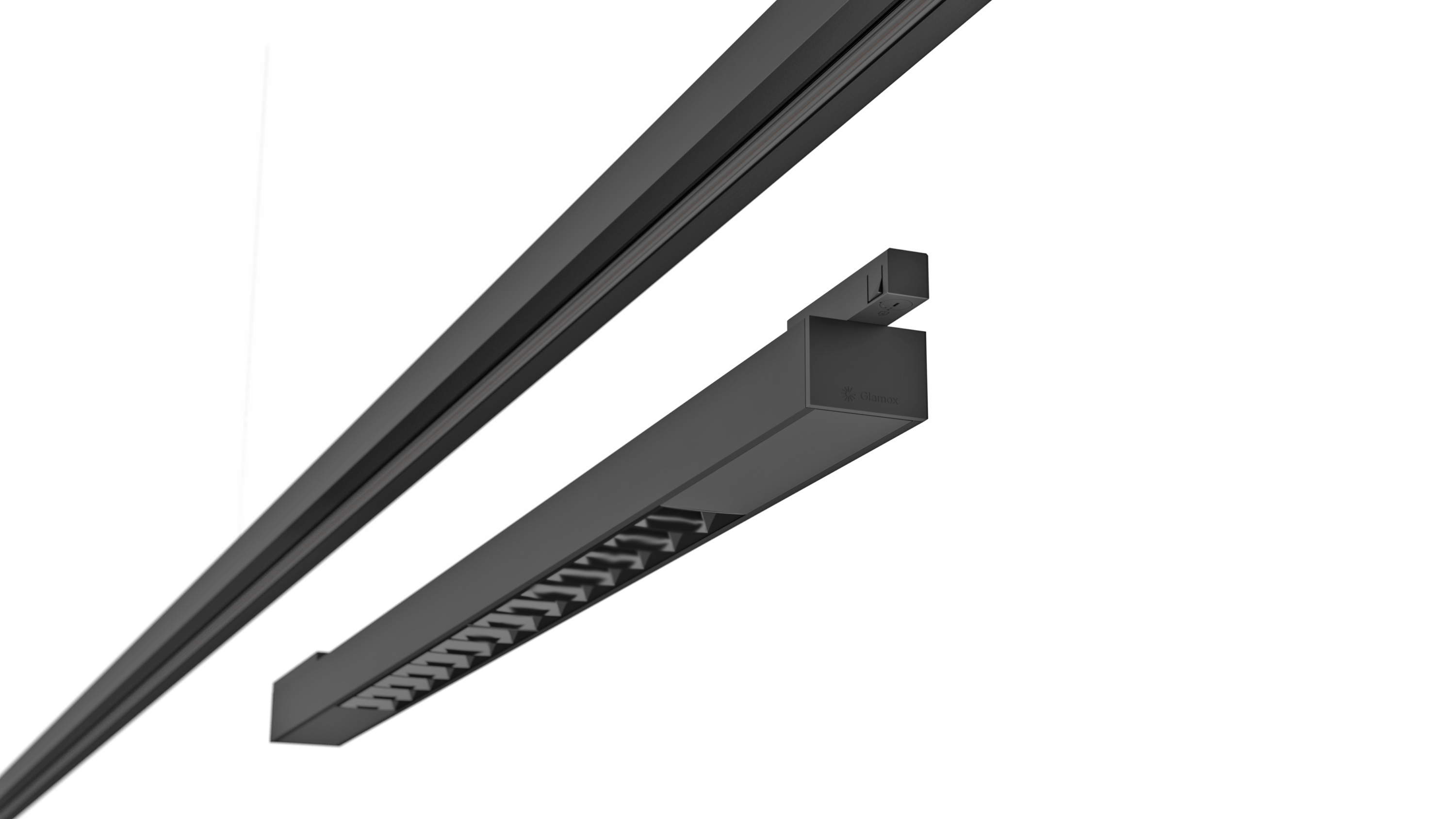

In combination with the Power Grid, the luminaires can be easily demounted and moved, creating a flexible platform which can adjust to changing layouts within a building.

Key features:

/ Load bearing or standalone installation
/ Luminaires can be quickly re-positioned when the work space is reconfigured
/ Luminaires can be easily de-mounted for repair or upgrade
/ Easy installation and connection
/ Choice of sensors
/ Choice of white, black or metallic reflectors
/ Selection of accent and decorative luminaires
/ Available with integral emergency
/ Bio based polymers consisting of a lower CO₂ footprint used
/ Flexibility to transform product to your requirements

Technical information

Power Profile Specification + Dimensions
Supply Voltage	220-240
Frequency	50/60
Wiring	Live, Neutral & Earth + control pair
Width	50 mm
Height	30 mm
Length	1000, 2000, 3000 & 4000 mm
Mounting Methods	Integrated into a ceiling & Suspended
Linear Track Luminaires	50 mm Wide, 36 mm high
	940 and 1500 mm Long, Light Engines
Emergency Option	1, 3 hours duration on standalone luminaires
Glare reduction	< UGR19, depending on the optical system and the Lumen package
Optics	Open cell

Direct Light Distribution Curve	Medium Beam
Controls	DALI, Glamox Wireless
Light Output	Configurable Lumen packages
Colour Rendering	Ra80, Ra90
Colour Temperatures	3000-6500 K single colour
Energy Efficiency	Up to 148 ll/cW
Service Life/Lifetime	>100 000 hours at L80/B50
Housing Colour	White
	Black
Ingress Protection (Front)	IP20
Other Features	Pendant Luminaires, Light management sensors, Emergency wayfinder, etc.
